TTikorea TX-130U Instruction Manual

Pmr446 tranceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

PMR446 TRANCEIVER
www.ttikorea.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-130U and is the answer not in the manual?

Questions and answers

Related Manuals for TTikorea TX-130U

Summary of Contents for TTikorea TX-130U

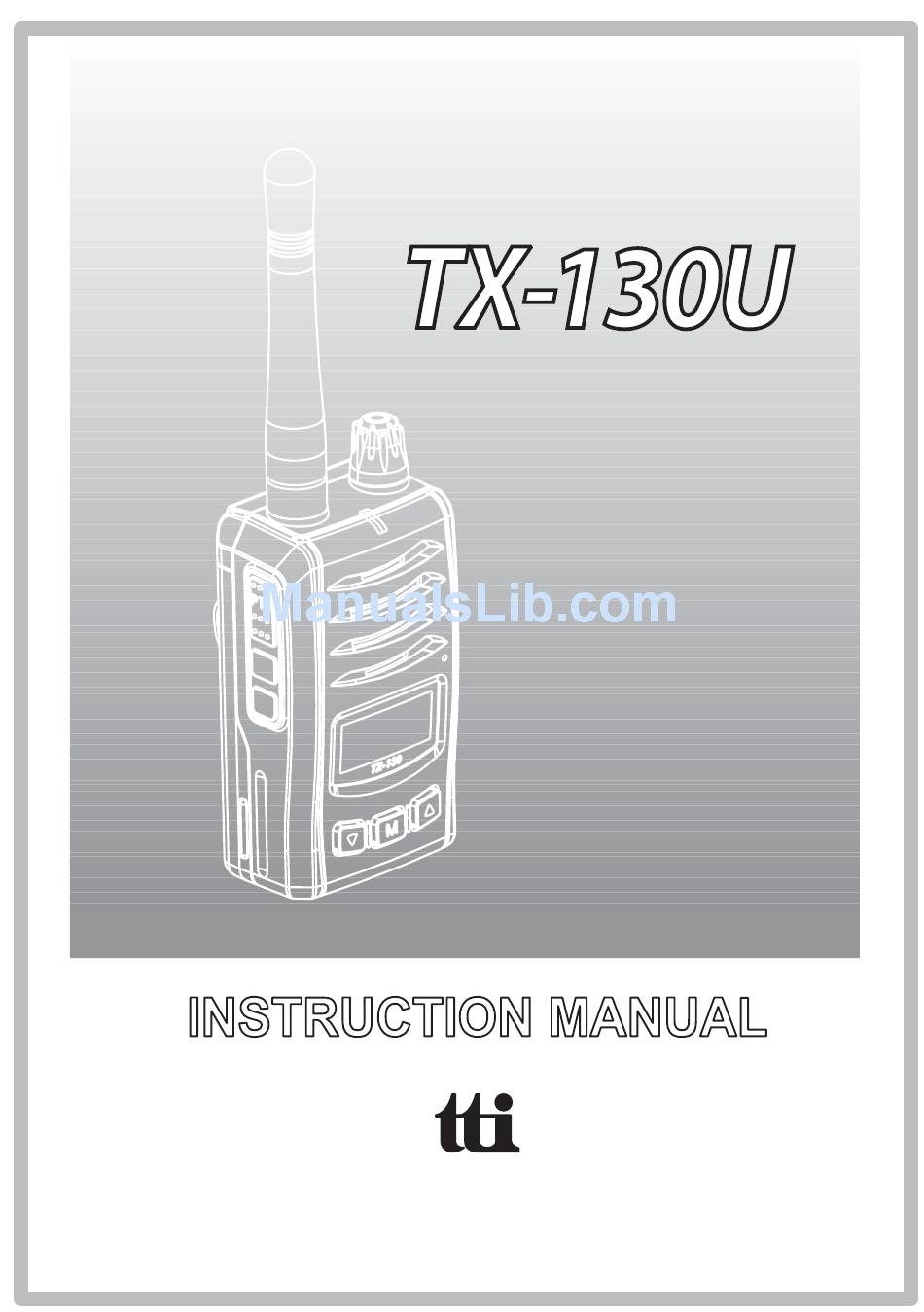

  • Page 1 PMR446 TRANCEIVER www.ttikorea.co.kr...
  • Page 3 Thank you for purchasing this radio. All our products are built to offer excellent value by combining advanced features, great design and manufacturing quality. To ensure you are familiar with the operation and features of your radio, and in order to obtain the best performance, please read this manual carefully before operation.

  • Page 4: Table Of Contents

    Contents Caution ................1.Radio Controls ............... 2. Equipment and Accessories Supplied ......3. Fitting the Battery pack ..........4. Battery Charging ............5. Radio Controls 1. Power On/Off/Volume Control ........ 2. Push-To-Talk (PTT) Button ........3. Monitor/Lock Button ..........4. Scan Memory/Scan Button ........5.

  • Page 5: Caution

    ONLY use TTI approved rechargeable batteries with the supplied charger. AVOID charging your radio or battery pack while it is wet. AVOID storing or charging your radio in direct sunlight. AVOID storing or using your radio where temperatures are below or above +60 TX-130U...

  • Page 6: Radio Controls

    1.Radio Controls TX-130U Antenna UP Button Power On/Off & Volume PTT Button Speaker Monitor/Lock Button Microphone Scan Memory/Scan Accessory Jack DOWN Button Belt Clip Menu button Battery Pack TX-130U...

  • Page 7: Equipment And Accessories Supplied

    2. Equipment and Accessories Supplied 1. TX-130U Radio with Antenna 1 Unit 2. Li-Ion Battery Pack 1 Unit 3. Charging Cradle 1 Unit 4. Power Adaptor 1 Unit 5. Belt Clip 1 Unit 3. Fitting the Battery pack Fitting 1. Ensure that your radio is switched off.

  • Page 8: Battery Charging

    LED blinks red or green or the charger LED does not light, re-insert the radio into the charging cradle. 4. The battery charging time is about 4~5 hours. When the battery is fully charged the green LED(Full) will be turned on. TX-130U Power Adaptor -Input : 230VAC -Output : 12VDC 1Ah...

  • Page 9: Radio Controls

    To delete a certain channel stay on the channel and press the function button momentarily. The scan icon will disappear on the LCD and the channel is now deleted from the scanning list. Scan Press and hold this button to activate the scan. TX-130U...

  • Page 10: Down Button

    5. Down Button Pressing this button will decrease the channel TX-130U number. In some modes this button is used to adjust the function setting. 6. Menu(Mode) Button Press and hold for about 2 seconds to enter TX-130U the menu mode. Then briefly press to step down through the menus.

  • Page 11: Lcd Display

    6. LCD Display Description Description Dual Watch Time-out Timer Lock Scrambler Key Tone Busy Channel Lock-out Scan Memory Channel Monitor Tone code Scan Compander Roger Beep Battery Balance Status Battery Level 5 Tone CTCSS Power Save TX-130U...

  • Page 12: Menu Mode

    Press the PTT button or wait for about 5 seconds to confirm the change. Display Function Setting Change Privacy Tone Code (CTCSS) Change Digital Privacy Tone code (DCS) DTMF Tone On / Off Compander On / Off Scramble On / Off Vox Activation and Level Selection Squelch level Selection , , , TX-130U...

  • Page 13: Basic Radio Operation

    1. Switch on your radio. 2. Check and if necessary change the channel or frequency and privacy code settings. 3. To speak, hold the radio upright, about 10cm from your mouth and press the PTT. Speak slowly and clearly towards the radio. TX-130U...

  • Page 14: Radio Features Explained

    5 seconds to store your choice. The CTCSS icon will appear when an Analogue Privacy Code is selected. Selecting a Digital Privacy Code To change the Digital Privacy Code, press the MODE(Menu) button until the DCS icon and privacy TX-130U...
  • Page 15 Compander icon and current setting display. Use the UP or DOWN button to change the setting. Press the PTT or MODE button or wait for 5 seconds to store your choice. The Compander icon will appear when Compander is active. TX-130U...
  • Page 16 To select the VOX sensitivity level, press the MODE button until the VOX icon and current setting. Use the UP or DOWN button to change the sensitivity level (3 is the most sensitive). Press the PTT or MODE button or wait for 5seconds to store your choice. TX-130U...
  • Page 17 Key Beep icon appears. Use the UP or DOWN button to change the setting. Press the PTT or FUNCTION button or wait for 5 seconds to store your choice. The Key Beep icon will appear when Key Beep is active. TX-130U...
  • Page 18 If you press the PTT button whilst receiving a signal in Dual Watch mode the radio will transmit on the corrently displayed channel. If you press the PTT button when no signal is present the radio will transmit on the primary channel. TX-130U...

  • Page 19: Radio Cloning

    You could use this wired cloning around noisy circumstances that could give interferences. 1. Connect two radios(the master and the slave) using a cloning cable. 2. Just follow the above process No.2 through No.5. 3. Disconnect the cloning cable from the radios. TX-130U...

  • Page 20: Radio Id Editing

    4. Repeat the step 2 and the step 3. 5. Turn off the radio to finish editing. 12. Troubleshooting If you experience problems with your TX-130U first check the battery power level as low batteries can cause problems such as poor transmission, weak reception and reduced sound quality.

  • Page 21: Ce Declaration

    13. CE Declaration 07 00 CE version of the TX-130U which displays the CE symbol on the product label, complies with the es- sential requirements of the European Radio and Telecommunications Terminal Directive 1999/5/CE. This radio can be used without license and charges in; Austria,...

  • Page 22: Technical Specifications

    171.4 88.5 146.2 250.3 64.7 181.4 91.5 151.4 69.3 40.8 190.6 94.8 156.7 159.8 51.0 201.3 97.4 162.2 183.5 61.0 211.6 100.0 167.9 189.9 71.2 221.5 103.5 173.8 196.6 80.8 230.3 107.2 179.9 199.5 91.1 110.9 186.2 206.5 101.3 TX-130U...
  • Page 23 I031 I331 I053 I032 I343 I122 I043 I346 I036 I047 I351 I145 I051 I364 I212 I054 I365 I225 I065 I371 I246 I071 I411 I252 I072 I412 I255 I073 I413 I266 I074 I423 I274 I114 I431 I325 1I15 I432 I332 TX-130U...

  • Page 24: Declaration Of Conformity

    Radio and Telecommunications Terminal Equipment Di- rective, 1999/5/EC, and that any applicable Essential Test Suite measurements have been performed. Kind of equipment: PRIVATE MOBILE RADIO 446 Type-designation: TX-130U Version (where applicable): This compliance is based on EN 300 296-1 V1.4.1 conformity with the following EN 300 296-2 V1.4.1...
