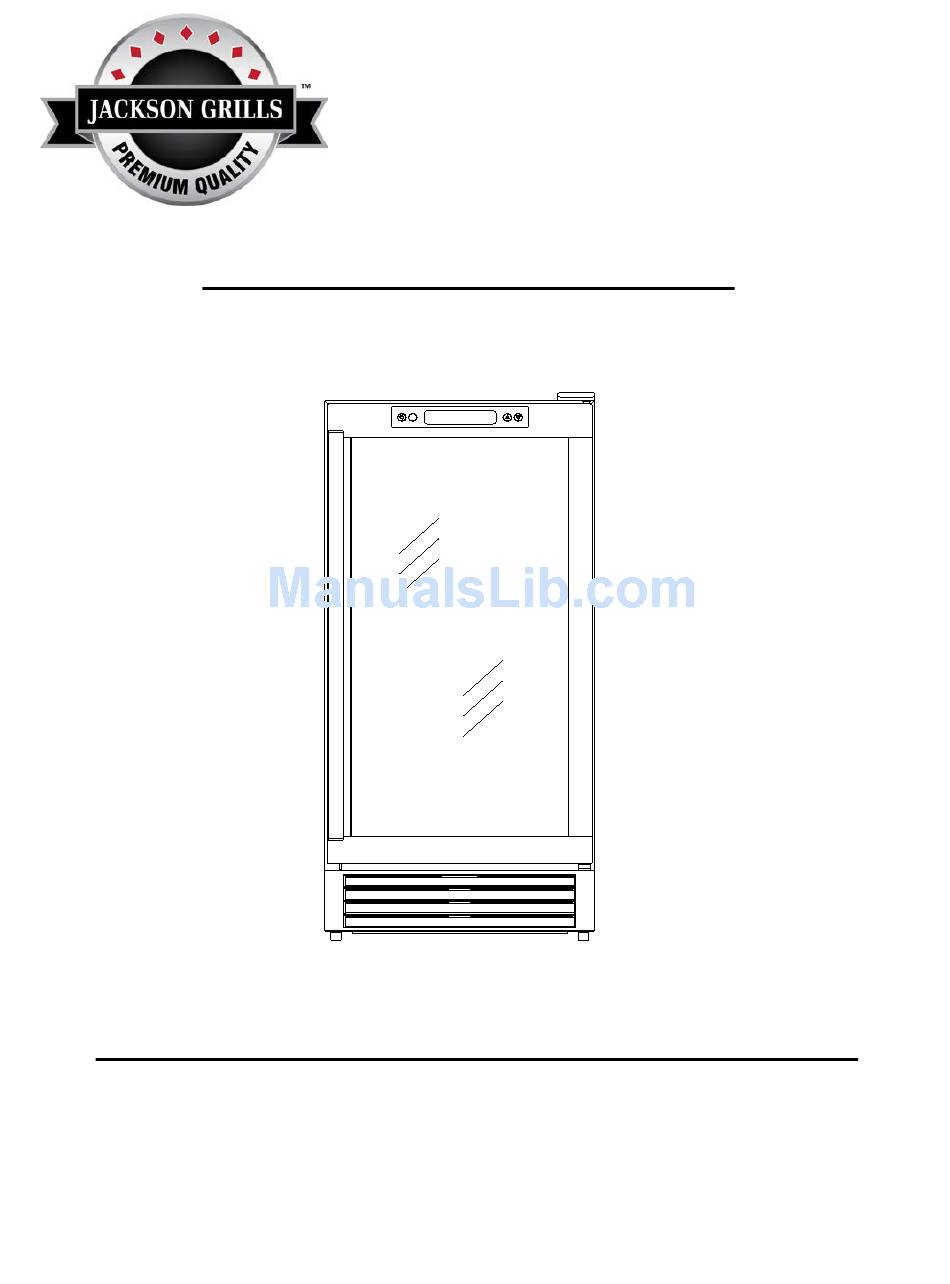

- Page 1 Outdoor Beverage Center Use and Care Guide O N /O FF TEMPERATURE Be sure unit is standing upright 24 hours prior to plug-in. SC90OD Model:...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read all instructions before using this appliance. Use this appliance only for its intended purpose as described in this instruction manual. Always exercise basic safety precautions, as described below. After reading the instruction manual, store it in an accessible place where the user(s) of this product can easily find it. The purpose of these safety precautions is to ensure safe and correct use of the product to minimize risks that could cause serious damage and injury to you or others. - Page 3 addition to the ground wire, an electrical leakage circuit breaker is also required. 8. If installation in a damp location is unavoidable, have an electrician install a ground fault circuit interrupter (GFCI) electrical outlet. If no GFCI is installed, electrical shock could result. 9.
-
Page 4: Table Of Contents
10. During long absences, remove the unit’s contents, unplug the unit, clean it and leave the door open slightly to avoid possible formation of condensation, mold or odors. Use a cover to protect the unit and prolong its lifespan. 11. Leave disassembly and disposal of the unit to qualified experts. SAVE THESE INSTRUCTIONS! DANGER! Risk of child entrapment! Before discarding your old refrigerator:... -
Page 5: Technical Specifications
Technical Specifications Model Number: SC90OD Description: outdoor beverage center Electrical Input: 115VAC ~ 60Hz Current Rating: 2.0A Unit Dimensions: 14⅝”W x 24⅜”D x 33½”H Unit Weight: 76 lbs Ambient Temperature Range: -4ºC - 38ºC (25ºF - 100ºF) Compartment Temperature Range: 2ºC –... -
Page 6: Installation
Direct sunlight may affect the finish, and nearby heat sources will cause higher electrical consumption. The SC90OD Outdoor Beverage Center is designed to be either free-standing or built-in. It has motorized fans at the back of the unit that direct compressor- generated heat away from the compressor and through the front of the unit. -
Page 7: Operating Your Beverage Center
Failure to do so may result in the unit working improperly. Compartment Design The SC90OD Beverage Center has a capacity of 28 standard wine bottles or 84 cans. The unit has 3 adjustable chrome-plated flat wire shelves and a wire basket to hold cans and bottles of beverages such as beer, water and soft drinks. - Page 8 3ºC (0 to 6ºF). When fully loaded with room temperature product, the SC90OD will operate continuously for as long as 24 hours to reduce the temperature inside the cabinet to the desired point. Under normal conditions, when the unit has been on for six hours, it will stop working for about thirty minutes to defrost automatically.
- Page 9 Memorized Temperature Settings Your unit has been designed to “remember” the last run mode to which it was set. If there is a power outage or any other power cutoff, the unit will automatically return to the previous temperature setting after the power has returned. Compressor Run Indicator When the unit’s compressor is running, the control panel will display a moving icon representing a running fan.
-
Page 10: Cleaning And Maintenance
Cleaning and Maintenance Cleaning the Outside Unplug your Beverage Center. Clean the outside with a cloth dampened in mild soapy water. Dry thoroughly with a soft cloth. To clean the door gasket, use only mild soapy water. Never use harsh cleansers or scouring pads to clean any part of your unit. - Page 11 Follow steps E through H on the following page to install the new bulb:...
-
Page 12: Troubleshooting
Troubleshooting Unit does not turn on Not plugged in. Fuse blown or circuit breaker tripped. Noise or vibration Check that unit is level. If not, adjust leveling legs. Unit is too warm Check that door is properly closed and sealed. Check temperature setting. - Page 13 LCD displays “PROBE ERROR” This message is an ALARM MODE indication. The LCD displays “PROBE ERROR” on the left when the thermostatic sensor has malfunctioned. Contact your authorized service facility for sensor replacement. LCD displays “LOW TEMP” This message is an ALARM MODE indication. The LCD displays “LOW TEMP” on the left and “L”...
-
Page 14: Limited Warranty
2. Proof of purchase must be submitted for warranty consideration. 3. Defects must be proven to the satisfaction of Jackson Grills to have been caused by defects in workmanship or material. Jackson Grills may request that defective parts be returned for inspection at the owner’s expense. -
Page 15: Serial Number
Special Message to Our Customers: All of us at Jackson thank you, for choosing a Jackson Grills’ product! This appliance was designed, engineered, and built with quality components and we are confident that it will provide you with years of excellent operation.
