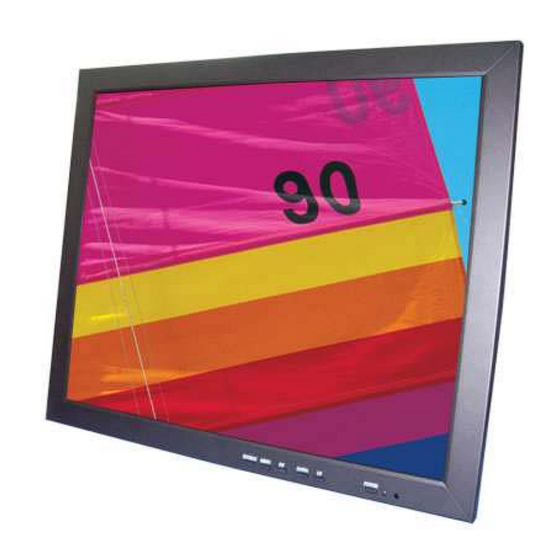

- Page 1 TFT LCD MONITOR USER MANUAL HMDE Series L104AK L121AVL L150/L151/L152AVL L156HD L171/L172AVL L185AVL L191/L192AVL L215HD L220AVL L236HD L240HD L270HD L320HD L420HD...
-
Page 2: Table Of Contents
Table Of Contents Table of contents/ Warning…………………………………………………………...….…2 Precautions ………………………………………………………………………….....3 About this user manual / Items included in the delivery ……………………….…..….…4 1. IR-remote control ………………………………………………………………..….……..5 2. LCD monitor mounting ………………………………………………………….…..…….7 3. Monitor controls …………………………………………………………………..…..……9 4. Connections..………………………………………………………………………..…..10 5. Monitor settings via OSD menu ……………………………………………………..….12 5.1 Picture ………………………………………………………………………………..…..12 5.2 Sound ……………………………………………………………………………….……12 5.3 OSD Setup ……………………………………………………………………………..13... -
Page 3: Precautions
Precautions Safety--------------------------------------- Installation--------------------------------------- Should any liquid or solid object fall into the Do not install the unit in an extremely hot or cabinet, unplug the unit and have it checked humid place or in a place subject to excessive by the qualified personnel before operating it dust or mechanical vibration. -
Page 4: About This User Manual / Items Included In The Delivery
This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired About this user manual This manual aims at assisting the user on how to operate the monitors described in this manual. -
Page 5: Ir-Remote Control
1. IR remote control (1). Power: Press this button to turn the monitor on/off. (2). Zoom: Press this button to toggle between the different picture formats: Full/Zoom/Subtitle/Regular/Panorama (3). Mute: Press this button to disable the sound. Press this button again to turn the sound on again. (4). - Page 6 (17). USB/Right/Left/Catalog: 1:Press ”USB” Key into the JPEG Menu. 2:Press ”MENU” Key into the USB Main menu 3:Press “Left” or “Right” key to select the JPEG/MP3/DRIVE function. 4:Press”Up/Down” Key to select play file. 5:Press”Right” Key to into the file...
-
Page 7: Lcd Monitor Mounting
6:Press”Up/Down” Key to select the play file and press Right key to play. And press ”Menu” to stop play. Then press” Catalog” return the menu. And press “Menu” into the USB Main menu. 7:Press” PC/HD,AV1/AV2;SV to exit the USB function. 2 LCD monitor Mounting Guide Desktop Adjust the viewing angle of LCD to fit most comfortable monitoring status. - Page 8 C. VESA Bracket 10.4”/12.1” 15”/15.6”/17”/18.5” 19”/21.5”/22”/24”/27” 32”...
-
Page 9: Monitor Controls
42” 3 Monitor controls 15’/17”/19” Plastic 10.4”/12.1”/15”/15.6”/17”/18.5”/19”/21.5”/22”/24”/27”Aluminum 15”/17”/19” Aluminium... - Page 10 32”/42” Aluminium (1). Power Turn the monitor on/off. LED: Green Monitor on LED: Red Standby mode (no input signal) (2./3). Adjust Up / Down ▲/▼ Increase or decrease the values in the OSD menu: Up: Increase the values. Down: Decrease the values. (4).
-
Page 11: Connections
4. Connections 10.4”~27” NOTE : Connections of Audio Audio 1 Audio 2 PC Audio S-Video 32”/42” NOTE : Connections of Audio Audio 1 Audio 2 PC Audio S-Video... -
Page 12: Monitor Settings Via Osd Menu
5. Monitor settings via OSD menu Various monitor settings can be made using the OSD menu (On Screen Display). Press the Menu/OK button to call-up the OSD main menu. Here you can make adjustments to the following items: Picture Sound OSD Setup Advance PC (at PC input signal) -
Page 13: Osd Setup
5.3 OSD Setup Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then use the ▲▼ buttons to increase/decrease the values, or use “source” button to change the values. Press the menu button to return to the previous menu item. Item Description Language... -
Page 14: Geometry
5.6 PC Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then use the ▲▼ buttons to increase/decrease the values, or use “source” button to change the values. Press the menu button to return to the previous menu item. Item Description Contrast... -
Page 15: Special Features
PC timing: Mode Resolution 800 x 600 @ 60 800 x 600 @ 72 800 x 600 @ 75 1024 x 768 @ 60 1280 x 1024 @ 60 1360 x 768 @ 60 1440 x 900 @ 60 1920 x 1080@ 60 6. -
Page 16: Technical Specifications
7. Technical specifications Monitor model L104AVL L121AVL System PAL / NTSC LCD panel 10.4“ 12.1“ Visible area (mm) 211.2 x 158.4 246 x 184.5 Picture format 4 : 3 4 : 3 Max. resolution 800 x 600 800 x 600 Pixel dot pitch (mm) 0.264 x 0.264 0.3075 x 0.3075... - Page 17 Monitor model L151/L152AVL L156AV System PAL / NTSC LCD panel 15“ 15.6“ Visible area (mm) 304 x 228 344.2 x 193.5 Picture format 4 : 3 16 : 9 Max. resolution 1024 x 768 1366x768 Pixel dot pitch (mm) 0.297 x 0.297 0.252 x0.252 Colours 16.7M...
- Page 18 Monitor model L172AVL L185AVL L191/L192AVL System PAL / NTSC LCD panel 17” 18.5” 19” Visible area (mm) 338 x 270 409.8x 230.4 376x301 Picture format 4 : 3 16 : 9 4 : 3 Max. resolution 1280 x 1024 1366x768 1280x1024 Pixel dot pitch (mm) 0.264 x 0.264...
- Page 19 Monitor model L215HD L220AVL L236HD System PAL / NTSC LCD panel 21.5“ 22“ 23.6” Visible area (mm) 476.6 x 268.1 473.7 x 296.1 525.22x297.22 Picture format 16 : 9 16 : 9 16 : 9 Max. resolution 1920 x 1080 1680x1050 1920 x 1080 Pixel dot pitch (mm)
- Page 20 Monitor model L240HD L270HD System PAL / NTSC LCD panel 24“ 27“ Visible area (mm) 531.3 x 298.8 597.6x 336.15 Picture format 16 : 9 16 : 9 Max. resolution 1920x1080 1920x1080 Pixel dot pitch (mm) 0.276.7 x0.276 .7 0.31125 x0.31125 Colours 16.7M 16.7M...
- Page 21 Monitor model L320HD L420HD System PAL / NTSC LCD panel 31.5“ 42“ Visible area (mm) 698.4 x 392.8 930.2x 523.2 Picture format 16 : 9 16 : 9 Max. resolution 1920 x 1080 1920x1080 Pixel dot pitch (mm) 0.36375x 0.37375 0.4845x0.4845 Colours 16.7M...
-
Page 22: Troubleshooting
Appendixes Troubleshooting The tables provided below include some problems that the user may encounter while using the display and the corresponding solutions. Please refer to the contents of this section prior to contacting service personnel. Problem Possible Causes Solutions 1. Is the power cable connected to the 1.
