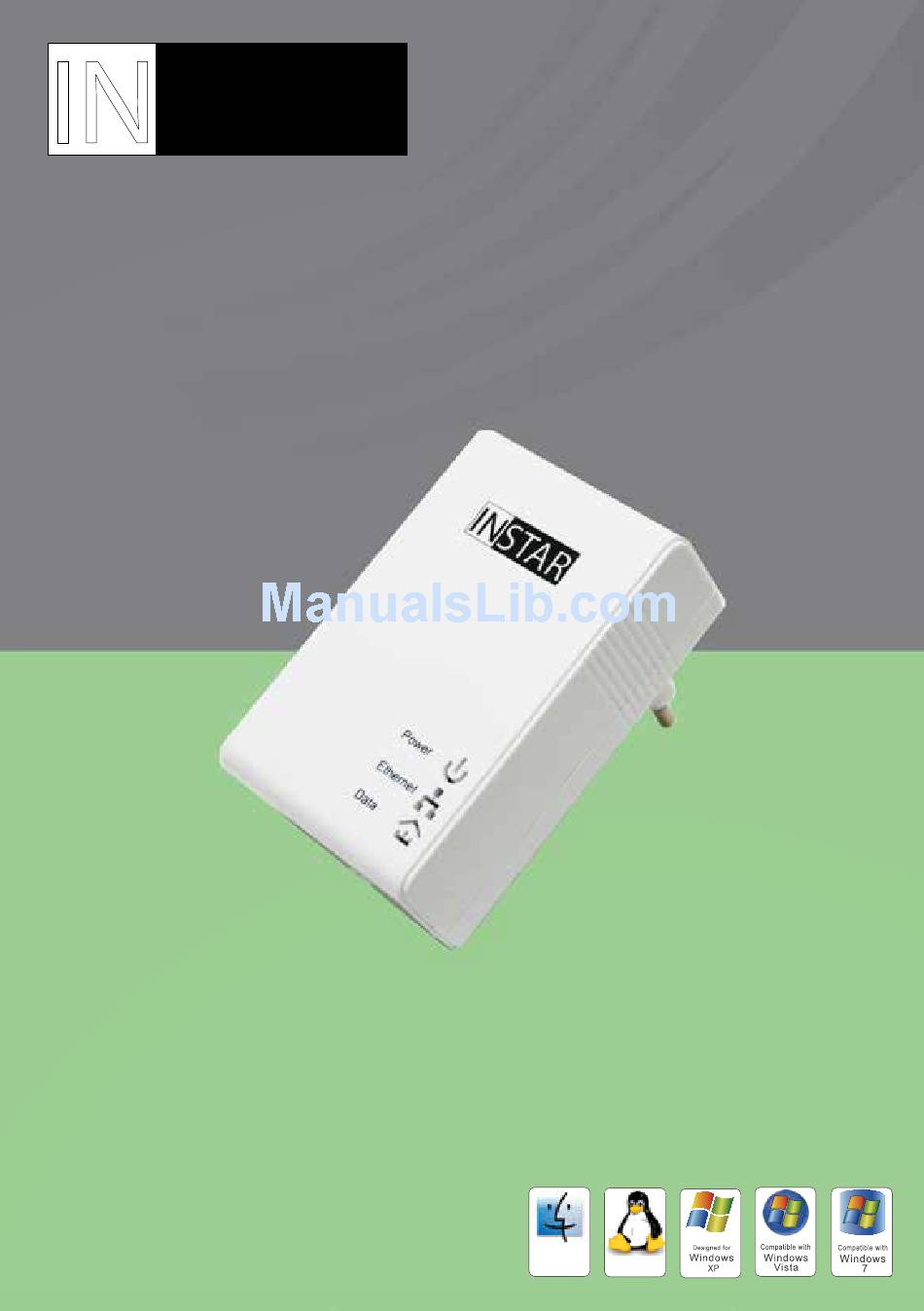

- Page 1 INSTAR QUICK- INSTALLATION GUIDE EXCLUSIVE for INSTAR Customers Brand: INSTAR IN-LAN® 500 Model: Manufacturer: INSTAR Deutschland GmbH Auf der Hostert 17 65510 Hünstetten Bechtheim Germany compatible with compatible with Linux Mac OS X...
-
Page 2: Table Of Contents
BUILDING A PRIVATE NETWORK.............7 BANDWIDTH OPTIMIZATION..............9 TECHNICAL DATA..................10 DISPOSAL AND WARRANTY..............11 More information can be found in the PDF-User Manual that you can download from www.instar.de This Quick-Installation Guide was made exclusively for INSTAR customers. Your Manufacturer of Network and Security Equipment www.instar.de... -
Page 3: Safety Warning
» Never install the device near explosive or flammable substances. » Don’t use the device for any other purpose that it isn’t made for. » INSTAR does not give any warranty if you use any third party firmware. CE-Conformity This device suites the basic requirements of the European regulations for electromagnetic compliance (2004/108/EC) and the low voltage regulations (2006/95/EC ). -
Page 4: Installation
INSTAR 2. INSTALLATION Power Indicator Steady when adaptor is ready for operation / Flashes when in stand-by mode Ethernet Indicator Indicates an established Ethernet connection / Flashes when data is being transmitted to the network IN-LAN Indicator Indicates an established connection to another IN-LAN adaptor / Flashes when data is being transmitted ®... - Page 5 State-of-the-art technology ensures that the power and data networks do not interfere with one another. ® What does INSTAR IN-LAN offer? IN-LAN offers a PLC transfer rate of up to 500Mbps (effective rate 65Mbps TCP / 90...
-
Page 6: Basic Setup
Ethernet cable. Plug the second IN-LAN unit into an outlet - for example - close to your INSTAR camera and connect the camera to your network using the cameras Ethernet cable. -
Page 7: Building A Public Network
10 seconds. The device will be assigned with a new random encryption key and will no longer be able to access the network. To integrate the adaptor into a different IN-LAN adaptor network, follow the steps described above. www.instar.de... -
Page 8: Building A Private Network
To manually setup your IN-LAN under the Windows Operating System, you will need to install the Qualcomm Atheros control software PPU (Power Packet Utility) that can be dowloaded from the INSTAR homepage: http://www.instar.de/templates/IN-LAN.zip Please make sure to install the Microsoft .NET Framework 1.1 or 2.0 before you install the application: http://www.microsoft.com/en-us/download/details.aspx?id=19... - Page 9 After downloading the PPU software from our homepage: http://www.instar.de/templates/IN-LAN.zip Double-click the Installer.bat file and follow the installation wizard through the installa- tion process. On workstations running Microsoft Window 7, the security configuration settings require the user to have administrator privileges to install the software. If you are prompted for an administrator password or confirmation please type the password or provide confirmation.
-
Page 10: Bandwidth Optimization
INSTAR Now open the “Privacy” Tab and provide a private network name for your IN-LAN. Click the button “Set All Devices” to reboot all devices in your IN-LAN and sychronize the new network name. To re-open your network please click on the ‘Use Default(Public Network)’ button then click on the ‘Set All Devices’... -
Page 11: Technical Data
5% to 90% Non-condensing PC System Requirements 2GHz or above System Memory 256 MB or above Graphic Card Memory 64 MB or above Supported Operating Systems Windows XP / Vista / 7, Mac OS, Linux, (Atheros Software only for Windows!) iOS, Android www.instar.de... -
Page 12: Disposal And Warranty
WARRANTY INSTAR offers a 2-year warranty on its products. During this time you can send in your camera for a free repair. This excludes cameras with installed custom made Firmware and WebUIs which have not been approved by INSTAR. The warranty is only for hard- ware parts of the camera. - Page 13 This page is intentionally only filled with one sentence www.instar.de...
- Page 14 INSTAR Quick Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................
