Related Manuals for Vassilias R-2033
Summary of Contents for Vassilias R-2033
- Page 1 MODEL: R-2033 Owner's Manual PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Please read these instructions carefully before installing and operating the oven.
-
Page 2: Table Of Contents
Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Specifications
SPECIFICATIONS 230V/50Hz, 1200W(Microwave) Power Consumption: 1000W(Grill) Output: 800W Operation Frequency: 2450MHz Outside Dimensions: 262mm(H)×452mm(W)×393m(D) Oven Cavity Dimensions: 210mm(H)×315mm(W)×329mm(D) Oven Capacity: 20Litres Cooking Uniformity: Turntable System Net Weight: Approx.12.5 kg BEFORE YOU CALL FOR SERVICE If the oven fails to operate: Check to ensure that the oven is plugged in securely. -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. -
Page 5: Microwave Cooking Principles
To reduce the risk of fire in the oven cavity: When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. Remove wire twist-ties from paper or plastic bags before placing bag in oven. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. -
Page 6: Utensils Guide
UTENSILS GUIDE The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires. -

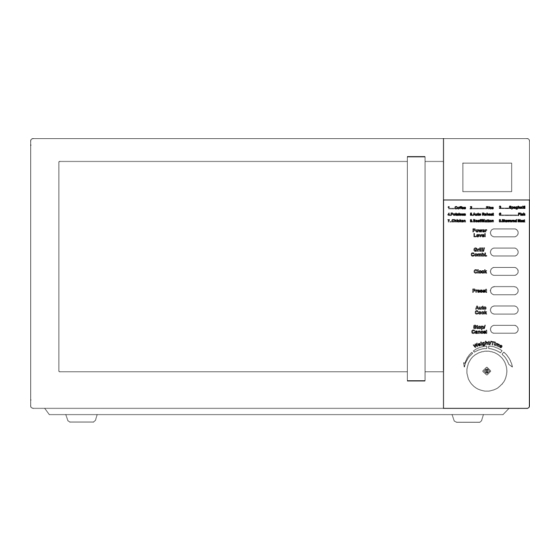

Page 7: Control Panel
CONTROL PANEL MENU ACTION SCREEN Cooking time, power, action indicators, and clock time are displayed. POWER LEVEL Touch this button a number of times to set microwave cooking power level. GRILL/COMBI. Press to set a grill or combination cooking program. CLOCK Touch this button to set the oven clock. -
Page 8: How To Set The Oven Controls
HOW TO SET THE OVEN CONTROLS Each time a button is touched, a beep will sound to acknowledge the touch. After a cooking program has been finished, the buzzer will sound beeps with End showing on screen. Press STOP/CANCEL button or open oven door to clear before setting another function. ETTING IGITAL LOCK... -
Page 9: Grill Cooking
Preset function allows the oven to start up in a later time. Suppose now the clock running at 9:00, and you want the oven to start cooking at 11:30. Press STOP/CANCEL button. Set a cooking program. Press the PRESET button. Rotate the WEIGHT/TIME dial to enter hour digit 11. -
Page 10: Weight Defrost
EIGHT EFROST The oven allows the defrosting of different foods based on the weight you entered. The time and the defrosting power are adjusted automatically once the weight is programmed. The food weight ranges from 100g to 1800g. For example: Suppose you want to defrost shrimp. Place the shrimp to be defrosted into the oven and close the door. - Page 11 Auto Cook Menu Menu Note Menus code Turn WEIGHT/TIME dial to indicate weight or amount of food. For Milk/Coffee(200ml/cup) Milk/Coffee and Potato, the display screen will show the number of Rice (g) serving but not weight of food. Spaghetti (g) For Spaghetti, add boiled water before cooking.
-
Page 12: Cleaning And Care
CLEANING AND CARE Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface. - Page 13 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Need help?
Do you have a question about the R-2033 and is the answer not in the manual?
Questions and answers
How to operate defrost
To operate the defrost feature on the Vassilias R-2033:
1. Place the food (e.g., shrimp) into the oven and close the door.
2. Press the STOP/CANCEL button.
3. Turn the WEIGHT/TIME dial anti-clockwise once to set the defrosting mode.
4. Turn the WEIGHT/TIME dial to select the food weight (100g to 1800g).
5. Press the START/QUICK START button.
During defrosting, the oven will pause and beep to remind you to turn over the food. After turning it, close the door and press START/QUICK START to resume.
This answer is automatically generated
