Summary of Contents for Audio Pole MIX-7

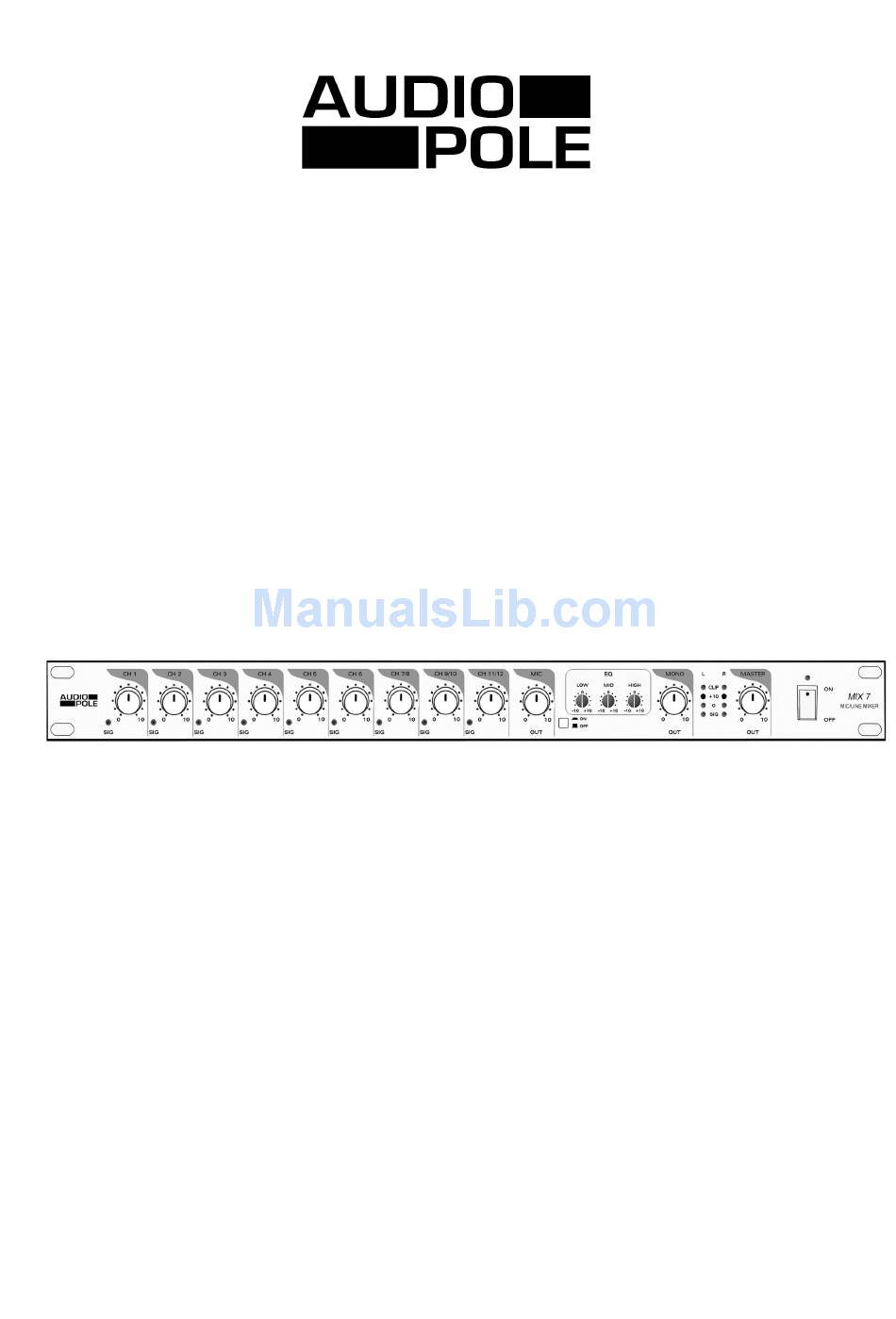

- Page 1 MIX-7 12 CHANNEL MIXER USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. -
Page 3: Table Of Contents
Index Introduction …………………………………………………………………….….. Features ……………………………………………………………………………. Controls …………………………………………………….……………………… Diagram ……………………………………………………………………………. Technical Specifications……………………………………………………...…… Warranty ……………………………………………………………………….……... -
Page 4: Introduction
Introduction Thank you for purchasing AUDIOPOLE MIX-7. The device is a compact mixer designed for multiple applications, including AV and conference. Features • 6 mono inputs including 1 priority IN, • 3 stereo inputs, • Stereo output, • Mono output, •... - Page 5 Controls Front 5. MONO – OUT MONO output level setting. 6. L, R INDICATOR Colored LEDs displaying the output LINE OUT (MASTER) level. The red LEDs (clip) indicate the presence of saturation; then adjust the levels accordingly. 7. MASTER – OUT Stereo LINE OUT level setting.
- Page 6 Controls Back 16. LINE INPUTS Unbalanced stereo inputs, RCA. Intended for the connection of stereo sources (CD, DVD, MP3, etc.) 17. LINE / +24V / MIC Selectors of 3 input types : • Line, • Electret microphone with +24 V phantom power supply, •...
-
Page 7: Diagram
Diagram... -
Page 8: Technical Specifications
Technical specifications Mono inputs (CH1 - CH6) Microphone inputs Electronically balanced Frequency response 20 Hz - 22 kHz (± 3 dBu) < 0,03% @ 1kHz Gain range 0 dB à -50 dB Max input level + 18 dBu 60 dB CH MIC INPUT → LINE OUT Max gain 50 dB CH MIC INPUT →... -
Page 9: Warranty
Warranty This device is warranted parts and labor against any manufacturing defects for a period of two years from the date of purchase by the first user. Conditions The unit has been installed and implemented by observing the safety instructions in this operating manual. The device was not diverted from its destination, either voluntary or accidental, and suffered no deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE.
