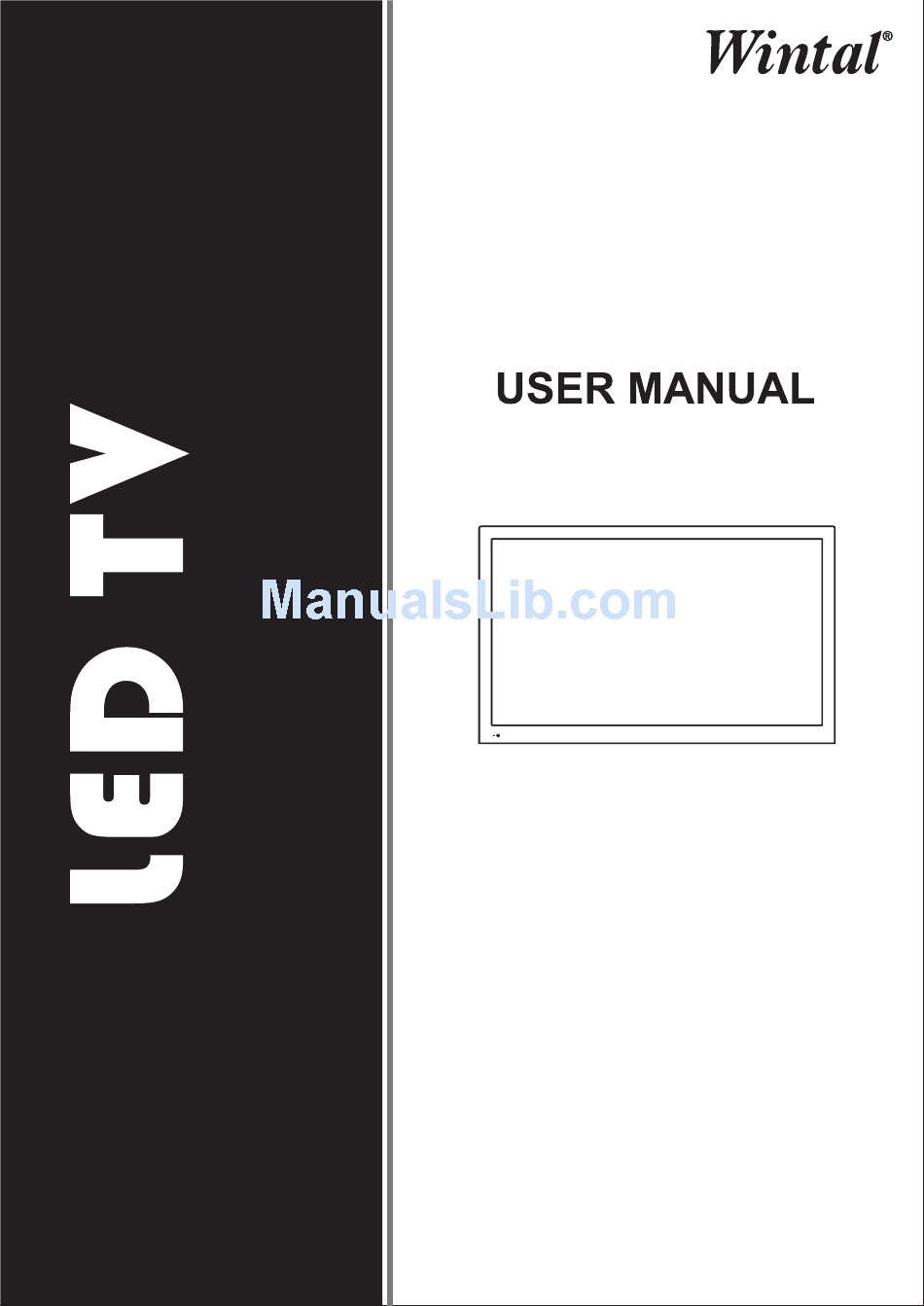

Wintal 42LED12FHD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42LED12FHD and is the answer not in the manual?

Questions and answers

Related Manuals for Wintal 42LED12FHD

Summary of Contents for Wintal 42LED12FHD

  • Page 2: Table Of Contents

    CONTENTS 1 PREFACE ····································································································· 2 2 SAFETY PRECAUTIONS ················································································ 2 3 FRONT , BACK AND REAR CONNECTIONS OF LED TV ····································· 3 4 CONFIGURATION OF THE LED TV ································································· 4 4.1 CHANNEL SETTING ················································································ 5 4.2 PICTURE SETTING ················································································· 4 4.3 SOUND SETTING ···················································································...

  • Page 3: Preface

    PREFACE Thank you for buying this LED TV! Please read this manual thoroughly before operating the monitor. Make sure the monitor was not damaged in transit. Should the monitor is damaged, do not install it and contact your dealer. Check that you have all the accessories according to the model. SAFETY PRECAUTIONS Put the monitor on a stable surface.

  • Page 4: Front , Back And Rear Connections Of Led Tv

    3 Front , Back And Rear Connections of LED TV Front View 1. TV /AV select 2. Menu key 3. Channel up/down 4. Volume up/down 5. STANDBY 6. Remote control sensor Back View （The backview is only for your reference;details according to the model） Rear Connection AUDIO OUT(R/L): Composite audio output YPBPR:Component input(AUDIO:R/L)

  • Page 5: Configuration Of The Led Tv

    CONFIGURATION OF THE LED TV 4.1 CHANNEL SETTING Press <MENU> key, then press ►key, a) Press ▼ then enter CHANNEL Setting Menu. Press ▲ or ▼ key and enter Auto Tuning, DVB-T Manual Tuning,ATV Manual Tuning,Programme Edit,Signal Information,LCN Sorting,Software Update(USB). b) Press◄or►key to access and adjust Auto Tuning, DVB-T Manual Tuning,ATV Manual Tuning,Programme Edit,Signal Information,LCN Sorting,Software Update(USB).

  • Page 6: Time Setting

    4.4 TIME SETTING Press <MENU> key, then press ► key a) Press ▼, then enter TIME Setting Menu. Press ▲ or ▼ key and enter Clock,Off Time,On Time, Sleep Timer, Auto Sleep,Time Zone,Daylight Saving. b) Press ◄ or ► key to access and adjust Clock,Off Time,On Time, Sleep Timer, Auto Sleep,Time Zone,Daylight Saving.
  • Page 7 c) Press ▼ key to access the Hotel Mode,Press the password 0000,then enter into the HOTEL. HOTEL MODE INSTRUCTIONS: HOTEL MODE 1.Default OFF the following set all invalid; 2.Default ON Hotel Mode work SET PASSWORD Set the Password. PICTURE MODE Set the default boot Picture mode SOUND MODE Set the default boot Sound mode...
  • Page 8 PVR Function list Item 1.Press●button to record the current program. Press to stop recording. Record directly 2.File maximum size 3.9G byte , if surpass the capacity it will divide the file to deposit. 1.Use EPG to carry on the appointment record. 2.Support periodicity record /everyday record Timer record /disposable record.
  • Page 9 Recording methods Mode1: Shortcut key 1.Press ●button to record the current program. Press to stop recording. 2.Press STOP button to stop recording ,the it will return to normal broadcast television. 3.When the storage space of Disk is shortage. It will produce a warning message, then it stops recording automatically and return to normal broadcast television.
  • Page 10 Mode3:Timer 1.You can also press EPG button to set record. Press the red button to start recording. 1. red background：means this time is the record time. 2. green background ：means reminder time list. 3. yellow background ：means the EPG's detailed information 2.

  • Page 11: Usb Instructions

    USB INSTRCUTIONS Note:Before operating mutilmedia menu,Plug in USB device,then press SOURCE button to set the Input Source to mutilmedia. Press ▲ or ▼ button to select mutilmedia in the Source menu, then press OK button to enter. Press ◄ / ► button to select the option you want to adjust in the main mutilmedia menu,then press OK button to enter.
  • Page 12 USB MULTIMEDIA PLAYBACK FORMAT Media File Extension Code VIDEO AUDIO Movie .avi MPEG-4 MP3,WMA,AAC .mpg MPEG-1,MPEG-2 .dat MPEG-1 .mov/. mkv H.264 Music .mp3 .wma .m4a/.aac Photo Progressive JPEG .jpg/.jpeg Baseline JPEG .bmp Non-Interlaced .png Interlaced...

  • Page 13: Remote Control Instructions

    5 REMOTE CONTROL INSTRUCTIONS...
  • Page 14 TV Functions 1.POWER: Press the TV on and standby. 2.MUTE: Press to mutes the sound. 3.NUMBER: Numeric buttons for direct channel access. 4.TV/RADIO: Press to change between TV and Radio : go back to the last viewed channel 6.SLEEP: Press to select a preset time interval for automatic shut off. 7.ASPECT:Aspect ratio.

  • Page 15: Remote Controls Setup

    6 REMOTE CONTROLS SETUP a: Open the cover b: AAA size batteries, When inserting the batteries, make sure correct polarities as per “+”and “-”marks on the batteries and within the battery compartment c: Replace the battery cover BATTERY USAGE CAUTION: To prevent battery from leakage which may result in bodily injury or damage to the remote, please do as follows: 1.

  • Page 16: Specifications

    9 SPECIFICATIONS Screen Size 42Inch Display Type LED TV Aspect Ratio 16:9 100-240V~50/60HZ Power Source ≤120W TV System PAL / SECAM Video Input Format PAL / NTSC/SECAM Antenna Input Standard antenna socket 75 Ω Audio Output L / R 10W*2 Video:1.0Vp-p, 75Ω;...
