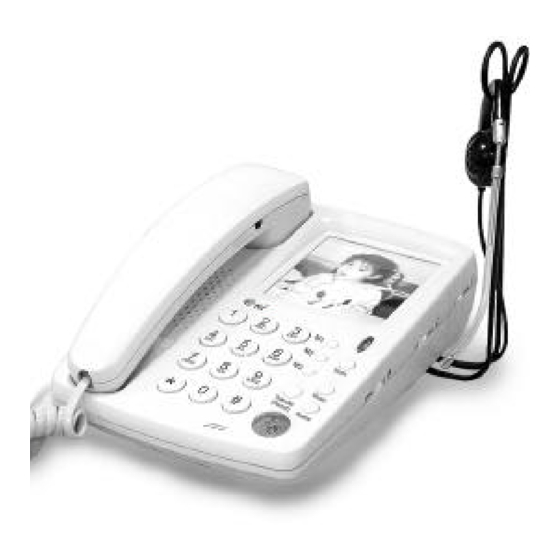

Tentel K 311 User Manual

Hide thumbs Also See for K 311:
Table of Contents

Advertisement

Quick Links

n Hands-free dialing with
Indicator
n Headset operation with
Indicator
n Automatic headset / handset
mode detection
n Headset / Handset operation
n Headset transmitter / receiver
volume control
n Handset receiver volume control
n Speaker volume control
n Ringer volume control
n Ringer tone control
1
USER MANUAL
FEATURES
n Three speed dial memory keys
n Last number redial
n Music on hold
n Message Waiting indicator
n Tone / Pulse switchable
n Auto hook delay for PABX
n Transfer/Recall ( Flash ) key
n Faceplate area for customer
Design
n Headset hanger
n The Modem connector
n PABX compatible
n Desk / Wall mountable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K 311 and is the answer not in the manual?

Questions and answers

Related Manuals for Tentel K 311

Summary of Contents for Tentel K 311

  • Page 1 USER MANUAL FEATURES n Hands-free dialing with n Three speed dial memory keys n Last number redial Indicator n Headset operation with n Music on hold n Message Waiting indicator Indicator n Automatic headset / handset n Tone / Pulse switchable n Auto hook delay for PABX mode detection n Headset / Handset operation...

  • Page 2: Installation

    INSTALLATION PARTS LIST Each phone is shipped with the following parts : Handset Coiled cord Flat telephone cord Jack box Wall socket (optional) Headset hanger (optional) INSTALLING Plug one end of the coiled cord into the handset and the other end into the telephone.
  • Page 3 INSTALLATION DIAGRAM Front View Bottom View Side View...

  • Page 5: Operation

    OPERATION TO SET THE TRANSFER/RECALL ( FLASH ) TIME There are three different Transfer/Recall ( Flash ) signals that you can select. Please contact your PABX supplier for the correct setting : 1. F1 : 100 m.s. ( Preset ) 2.

  • Page 6: To Transfer A Call

    OPERATION TO TRANSFER A CALL This feature is only used when the phone is connected behind a PABX. While talking to the other party: Press the Transfer ( Recall ) key. Listen for PABX dial tone. Dial the extension number to where the call needs to be transferred to. Replace handset.
  • Page 7 OPERATION TO STORE IN MEMORY During the Off-Hook condition : Press the Program key. Enter the telephone number that you want to store. Press any memory key to store the number in ( M1 , M2 or M3 ). 【Note】 Only one number can be stored per memory key. Storing a new number will automatically erase the previous stored number.

  • Page 8: Dialling A Speed Dial Number

    OPERATION DIALLING A SPEED DIAL NUMBER Lift up the handset or Press the key to make the call on headset. Wait for dial tone. Press one of memory keys ( M1, M2 or M3 ). 4. The number stored in that specific memory key will be dialled out automatically.

  • Page 9: Ringer Tone Control

    OPERATION RINGER TONE CONTROL The tone of the ringer can be adjusted by sliding the Ringer Tone Control ( switch on the upper right-hand side of the phone. HANDSET VOLUME CONTROL ( RECEIVER ) The volume on the handset receiver can be adjusted to either High ( n ) or Low ( i ) by using the switch on the handset.

  • Page 10: Dimension And Weight

    OPERATION THE SPEAKER KEY ON HEADSET MODE Ø During Handset Mode ( with "no" headset connected ): The LED will light up Red when you make the call , and will go OFF when the handset goes off-hook. Ø During Headset Mode ( with headset connected ): The LED will light up Green when you press the key to make the call and talk using the headset , and will go OFF when you press the...
