Summary of Contents for Suhr Iso Boost

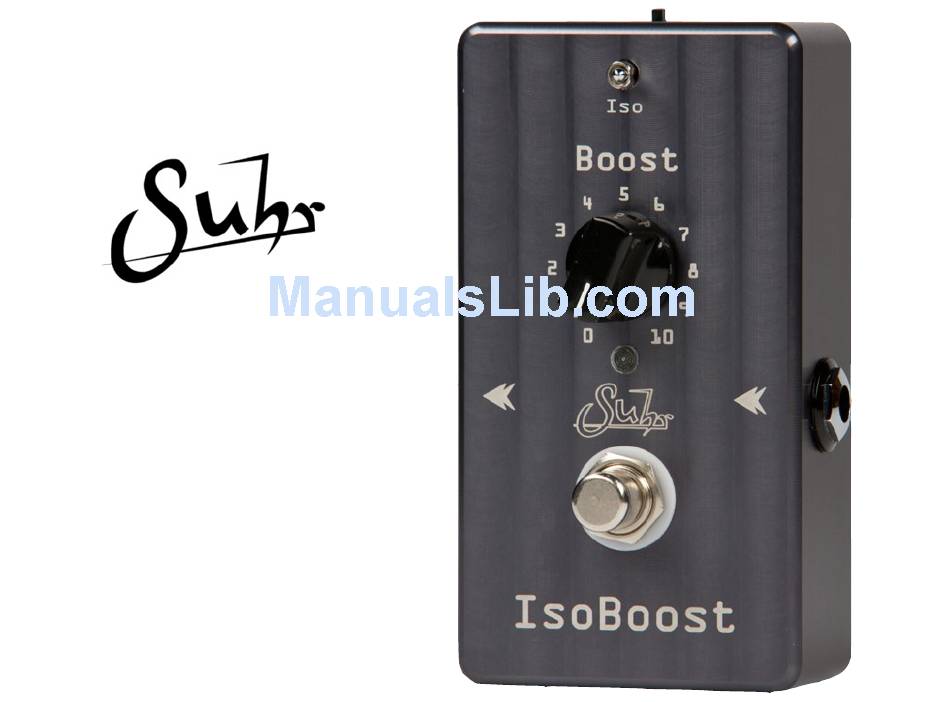

- Page 1 ® Iso Boost ™ USER MANUAL...
- Page 2 Thank you for purchasing the Suhr Iso Boost™ pedal. Please take the time to read this manual to get the most out of your pedal. The more you familiarize yourself with the features of this pedal, the more you will enjoy its benefits and maximize its potential.
- Page 3 OPERATION Install a 9V battery or use a suitable 9Vdc, center negative power supply. Plug your guitar into the input jack and connect your amp to the output jack. Note: Connecting a cable to the input jack will power up the pedal.
- Page 4 Boost: Adjusts the amount of boost from the circuit, from Unity (0dB) to +20dB of gain. Iso: Activates a transformer to isolate the output and eliminate ground loops between amplifiers and effects. True Bypass: Iso is true bypass via a relay. LED: LED illuminates Green when effect is activated.
- Page 5 Iso’s state will be dictated by the status of foot switch connected to the jack. If the FX Link jack is not utilized, Iso Boost will power up in the OFF state. Left: Iso Boost will power up in the OFF state.
- Page 6 SAMPLE SETTINGS Mild Boost Medium Boost Heavy Boost Drive: 3 Drive: 5 Drive: 9...
-
Page 7: Specifications
Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
