Stinson SR 9 Instruction Manual

Bw color rw color
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MONOCULP/SR 9
M
ANUAL
BR
BY
COLOR
COLOR
BW
RW
COLOR
COLOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR 9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stinson SR 9

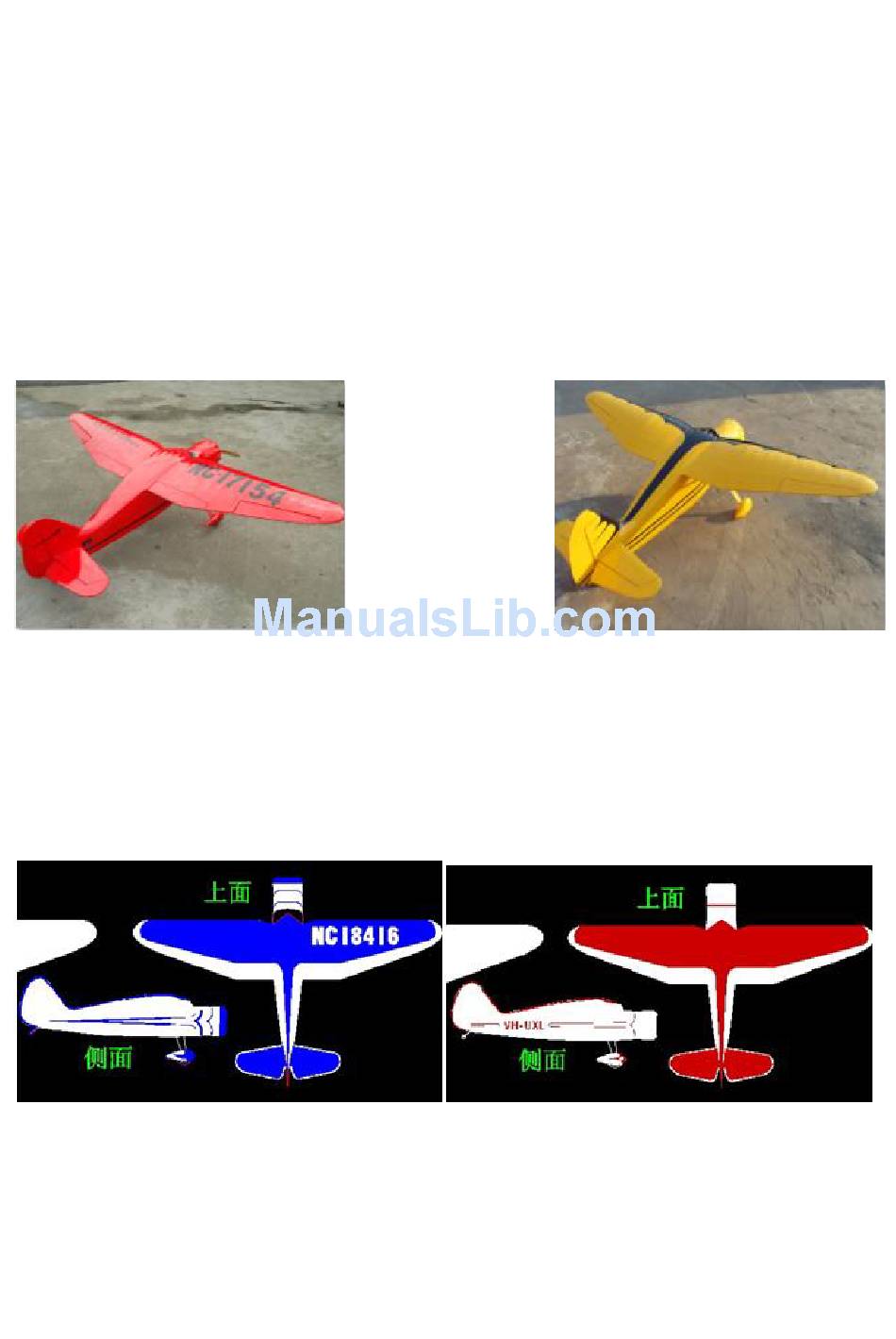

  • Page 1 MONOCULP/SR 9 ANUAL COLOR COLOR COLOR COLOR...
  • Page 4 Caution! You should not regard this plane as a toy! To ensure safety, please read this instruction manual thoroughly before assembly. Building and operating a model plane requires diligent practice and correct guidance. An inexperienced flyer can cause serious injury and property damage.
  • Page 5 Main Landing Gear Installation and Tail wheel Set Drill a hole and make it fit the steering tube. (Do not glue it into position untill the tail wheel installation step is completed.) Assembly photo for the tail wheel parts. Use the tail wheel bracket as a template and drill holes for the mounting bolts.

  • Page 6: Main Landing Gear Installation

    Main Landing Gear Installation Install the landing gear in the pre-drilled holes with the supplied bolts and locking nuts. Secure the bolts with Blue Loctite. Insert the landing gear into the covers before you install the landing gear axles. Install the landing gear axles with lock nuts but do not tighten yet. Install the wheel and tighten the collar set screw using a drop of Blue Loctite.
  • Page 7 Doors and Stairs Find out below parts for this step. Findout the holes inside of the fuselage for the locks of the door. Stick the locks onto the door in the right position. Find out the holes inside of the fuselage for the hinges of the door. Fix it up with self-taps as shown.

  • Page 8: Rudder Installation

    Rudder Installation Drill holes for the mounting screws. Fit the servos as shown with the servo label facing the rudder. Harden the area around the holes with a drop of thin CA Use brass crimps on eachcable and thread, the cablethrough the end of thepull-pull connector.

  • Page 9: Stabilizer Installation

    Stabilizer Installation Use the safety clips (buyseparately) to secure theservo and servo extension. Install servos as shown with the servo label facing the rear of the fuselage. Install the stab with mounting bolts and washers. Assemble the servo arm in the vertical position as shown. Adjust the pushrod length so that the servo and elevator are both in the neutral position.

  • Page 10: Engine Installation

    Engine Installation Use a drill to drill screw holes for engine Installation. The holes position for 3W & DL have been laser scribed on the firewall. Insert the bolts through flat fender washers, the firewall and into the engine stand offs. Tighten firmly. Secure mounting bolt nuts with Blue Loctite.

  • Page 11: Fuel Tank

    Fuel Tank Install the inside parts of fueltank as shown. Assemble the outside fuelpipe as shown. Tighten the velcro ties secure the fuel tank.
  • Page 12 LED light Find out the LED light system. Insert the LED light into the tubes as shown. Find out the holes for the LED light in the wings, both the wing tips and the middle of the wings. The voltage for the light is 6V. Insert the LED light wire into the tubes for the wire specially.

  • Page 13: Main Wing Assembly

    Main Wing Assembly Remove the covering from the servo position as shown. Remove the covering from the servo position as shown. Put the servo into the servo hole, and mark the position for the screws to secure the servo in place. Pull the extension lead through to the root of the wing.
  • Page 14 Wing Support Find out 4 pcs wing support cover and 2 pcs of wing support. Insert the wing support into the support cover. Screw the wing support onto the wing and the fuselage. Stick or screw the wing support cover with glue or screws. Install the props and the scale spinner.

  • Page 15: Float Installation

    Float Installation (Buy separately. If you want this part, please contact with your local distributor.)

  • Page 16: Center Of Gravity

    Center of Gravity The center of gravity is on the rear of the wing tube. Your balance at the CG will determine the fin al mounting location for batteries. Mount batteries and secure with Nylon zip ties. D = 50mm...
  • Page 17 Trail run the Engine to check its stability at high speed and low speed to ensure there are no problems with vibration on the model. Run the motor at high speed about 30 min,check the Engine and make sure the temperature is bleow the prescription of manufacturer.Once everything is right.
