Brionvega rr-226 Installation Instructions Manual

Radio-phonograph
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the rr-226 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brionvega rr-226

Summary of Contents for Brionvega rr-226

  • Page 2: General Information

    Radio-phonograph general information rr- 26 radiofonografo MODELLO DEPOSITATO MADE IN ITALY ANTENNA AUX 1 PRE OUT AUX 2 CUFFIE DX DIFFUSORI SX INTERRUTTORE ALIMENTAZIONE GENERALE 230V 50Hz...

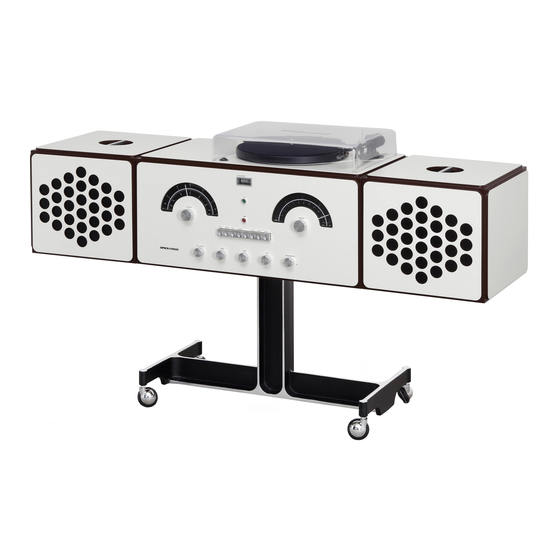

  • Page 3 The Radio-phonograph rr-226 is a high-fidelity stereo system with stereo record player. It is composed of a central part which contains the radio receiver, amplifier, record player, CD MP3 player, control panel and connection panel, and 2 compression loudspeakers that can be fixed to the central part or arranged in the best position to improve the stereo effect.
  • Page 4 Do not connect the appliance to the mains electricity if operating the product. This manual provides the the plug and/or cable [19] are damaged, but contact basic instructions for operating the rr-226 system. your nearest Technical Service Centre. The installation, preliminary adjustments and •...

  • Page 5: Power Supply

    Loudspeakers Power supply The Radio-phonograph rr-226 is equipped with The Radio-phonograph rr-226 operates with an AC 2 compression loudspeakers that should be power supply. The main switch [24] and the mains connected to the audio sockets [23], located on the socket [25] for connecting the power supply cable back panel of the appliance.

  • Page 6: Installation Instructions

    Installation instructions In this position, all the controls of the Radio- phonograph can be used and at the same time the increased distance between the two loudspeakers guarantees a good stereo effect. Record player island Removal of the adhesives fastening the island The 2 loudspeakers can also be positioned further from the central body of the Radio-phonograph.

  • Page 7: Connections Panel

    Connections panel Audio Connections Pre-Out Output The Radio-phonograph rr-226 is equipped, on the Using the Pre-Out audio output [28] an external back, with an audio connections panel. amplification device can be connected to the Radio-phonograph. If an external amplifier is connected, the loudspeakers of the Radio-phonograph will continue to sound.

  • Page 8: Preliminary Operations

    Using the radio functions Turn the knob [11] until you find the desired radio Preliminary operations station. Press the knob [7] to store the radio station. Turn on the appliance by turning the volume control The red LED [8] will flash to confirm that the radio knob [12] clockwise.

  • Page 9: Turning Off The Radio

    Using the radio functions - The automatic storage reserves programmes 1 to 12 for your favourite stations. Semiautomatic search: Press the knob [11] for about 2 seconds: the tun- ing system activates and stops at the first station it finds. If the station is already stored, the red LED [8] on the front of the Radio-phonograph becomes steady-on.

  • Page 10: Audio Functions

    Using the audio functions Record Player - CD/MP3 Player The Radio-phonograph rr-226 is equipped, on the 01 15:10 top, with a CD-MP3 player [2] and a record player [6] able to play 33 and 45 rpm records. Turn on the appliance by turning the volume control knob [12] clockwise.

  • Page 11: Using The Audio Functions

    1. Adjust the contact force of the stylus: The record player on the top of the Radio-phono- Taking care not to damage the stylus, carefully per- graph rr-226 is manually operated. form the following operations: It does not have either the automatic initial position-...
  • Page 12 Using the audio functions Rotate the numbered ring nut of the counter- pending on the state of wear of the head (the newer weight until the zero lines up with the reference it is, the greater the weight necessary, at least ini- mark on the stick of the arm.
  • Page 13 Before starting the record player turntable, the motor must be released from its clamping supports. Be careful not to damage the surrounding The motor of the Radio-phonograph rr-226 record structures with the screwdriver while removing player is supported by a system of elastic tension...
  • Page 14 33-45 rpm settings The record player of the Radio-phonograph rr-226 can play 33 and 45 rpm records. To change the speed of the record player turntable, follow the procedure below: Lift the record player turntable by pulling it upwards.

  • Page 15: Adjusting The Sound

    Loudness [PUSH-BUTTON PANEL 18] Adjusting the sound The button to activate the Loudness function is located on the push-button control panel. The sound level controls are located in the centre of the front panel on the Radio-phonograph rr-226. RADIO AM-FM PHONO AUX1...

  • Page 16: Specifications

    Technical specifications Unit constructed in MDF wood, lacquered and hand polished Radio-phonograph: White with tobacco-coloured inserts. Control panel: - aluminium push-button panel (8 buttons) - aluminium knobs (5 + 2) - vu-meter and tuning indicators. Single block in cast aluminium, brushed, painted and hand polished. Stand: Supports CD/CD-R/CD-RW (Audio and MP3/WMA) CD player:...

  • Page 17: Technical Specifications

    Technical specifications Integrated stereo amplifier 2x30W Amplification: Bass, middle tones, treble, loudness, volume and balance Control of: 2 RCA audio inputs for external sources Connections: 1 RCA audio output for connection to an external amplification system 1 RCA audio output for connection to an external subwoofer 1 preamplified 3.5 mm jack output for headphones Compression type (pneumatic) Loudspeakers:...

  • Page 18: Environmental Information

    Environmental information In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new BV S.r.l equipment. Call BV S.r.l to see if this program is available in your area. If you need further assistance in recycling, reus- ing, or trading in your “end of life”...
  • Page 20 BV s.r.l V.le Lino Zanussi, 11 33170 Pordenone - Italy Numero Verde 800 238891 E-mail: info@brionvega.com Sito internet: www.brionvega.it...
