Cube ON-HS94A Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

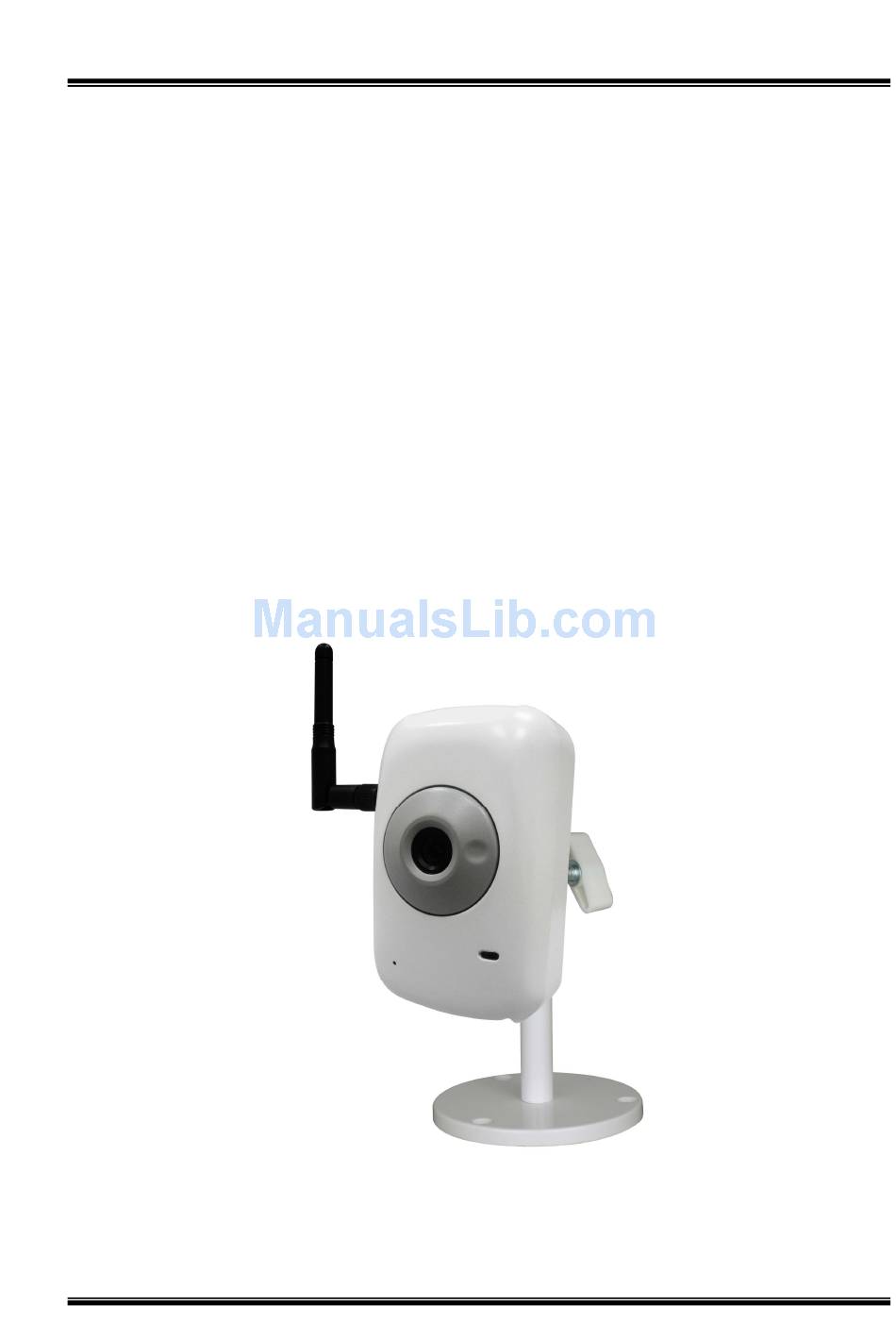

User Manual

IP CAMERA
1/42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ON-HS94A and is the answer not in the manual?

Questions and answers

Related Manuals for Cube ON-HS94A

Summary of Contents for Cube ON-HS94A

  • Page 1: User Manual

    User Manual IP CAMERA 1/42...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ............................4 PRODUCT SPECIFICATIONS ....................... 4 III. PRODUCT INSTALLATION ......................6 ............................. 6 ONITOR ETTING ....................8 ARDWARE NSTALLATION SSIGNMENT IP A ............................9 SSIGNMENT :........................11 NSTALL CTIVE CONTROL LIVE VIDEO..........................13 CONFIGURATION........................15 ..............................16 YSTEM ..............................

  • Page 4: Preface

    I. Preface This is a 1/4’’ CMOS IP camera with the web server built in. User can view real-time video via IE browser. It supports H.264, JPEG and MPEG4(3GPP Only) video compression which provides smooth and high video quality. The video can be stored in the Micro SD card and playback remotely.
  • Page 5 audio DI / DO Power over Ethernet Optional ℃ Operating Temperature -10 ~4 5℃ Dimensions 59mm x 93.7(mm)x 45.5(mm) Weight 240g Network Ethernet 10/ 100 Base-T Network Protocol HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMB Wireless (Optional)

  • Page 6: Product Installation

    Firmware upgrade HTTP mode, can be upgraded remotely Simultaneous connection Up to 10 SD card management Recording trigger Motion Detection, IP check, Network break down (wire only),schedule, DI Video format AVI, JPEG Video playback Delete files Web browsing requirement Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above Hardware Suggested...
  • Page 7 7/42...

  • Page 8: Hardware Installation Assignment

    B. Hardware Installation Assignment Connect power adaptor. Connect IP Cam to PC or network with Ethernet cable. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is recommended...

  • Page 9: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE)
  • Page 10 viii. Click one of the IP Camera listed on the left side. The network configuration of this IP camera will show on the right side. You may change the “name” of the IP Camera to your preference (eg: Office, warehouse). Change the parameter and click “Submit” then click “OK”. It will apply the change and reboot the Device.

  • Page 11: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options…...
  • Page 12 12/42...

  • Page 13: Live Video

    When popup the following dialogue box, click “Yes”. IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin”...
  • Page 14 ：Get into the administration page ：Video Snapshot Show system time, video resolution, and video refreshing rate Select video streaming source (When streaming 2 setting in『 『 『 『 Video Setting』 』 』 』 is closed, this function will not display) IP Camera supports 2-way audio.

  • Page 15: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 15/42...

  • Page 16: Ystem

    A.System i、 System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 17 ii、 User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit”...
  • Page 18 iii、 System update： To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 19: Network

    B.Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP：Using DHCP, IP Camera will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 20 UPnP This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP open the Control Panel from the Start Menu select Add/Remove Programs Select Add/Remove Windows Components and open...
  • Page 21 ii、 Advanced： Https (Hypertext Transfer Protocol Secure)：Https can help protect streaming data transmission over the internal on the higher security level. Https setting：Before setting new request, please remove old secure identification identification at Http connection type. Created Request: remove secure identification in Created request mode.
  • Page 22 Installed Certificate: remove Certificate in .Installed Certificate mode. There will be a warning message to check again. There are two ways to set Certificate- Install Signed Certificate and Create Self-Signed Certificate. SNMP(Simple Network Management Protocol)： Enable SNMPv1 or SNMPv2 and write the name of Write Community and Read Community.
  • Page 23 Access list：”Enable IP address filter” can set IP address which can allow or deny to this camera. There are two options, single and range, for user to set the IP address. QoS/DSCP(Quality of Server/Differentiated Services Code-point)： DSCP specifies a simple mechanism for classifying and managing network traffic and provide QoS on IP networks.
  • Page 24 IEEE 802.1x： IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment. Please check what version of the authenticator and authentication server support.
  • Page 25 iii、 PPPoE： Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
  • Page 26 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 27 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.
  • Page 28 v、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. vi、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed.
  • Page 29 Status of Wireless Networks； scan all wireless services. Wireless Setting： Mode：There are Infrastructure and Ad-hoc. Infrastructure is for connecting with the router. Ad-hoc is for connecting with PC. There is “Channel” to select only when user uses Ad-hoc mode. e.g. If one PC’s channel is 1, the other’s channel has to 1, too. SSID：Based on AP setting.
  • Page 30 WEP： Authentication：There are Open System and Shared Keys, it is based on different encryptions. This has to be the same as the Router’s setting. Encryption：There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. Key Type：There are HEX and ASCII.

  • Page 31: A/V Setting

    C.A/V Setting i、 Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation”...
  • Page 32 ii、 Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 30 FPS) Streaming 1 Basic Mode： Resolution：...
  • Page 33 Streaming 1 Advanced Mode： Resolution： There are 3 resolutions can be chosen. 640x480, 320x240, 176x144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~4Mbps (the higher the CBR is, the better the video quality is) VBR：1(Low)~10(High) –...
  • Page 34 Streaming 2 Basic Mode： Resolution： There are 3 resolutions can be chosen. 640x480, 320x240, 176x144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second.
  • Page 35 good for internet transmitting Video Frame Rate：The video refreshing rate per second. Video Format：H.264, MPEG4 or JPEG RTSP Path: RTSP output connecting route 3GPP Streaming mode: 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming 3GPP: 3GPP output name 35/42...
  • Page 36 iii、 Audio： IP CAMERA supports 2-way audio. User can send audio from IP Camera Built-in mic to remote PC; User can also send audio from remote PC to IP Camera’s external speaker. Audio from IP camera built-in mic to local PC: select “Enable” to start this function and also can select the audio type.

  • Page 37: Event List

    D.Event List IP CAMERA provides multiple event settings. i、 Event Setting Motion Detection： IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local Micro SD card.
  • Page 38 Multi-JPEG (With Record File Setting), only with JPEG compression format. Single JPEG (Single File with Interval Setting) Record Time Setting： Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered. Note: Pre/Post Alarm record time is base on record time setting and IP Cam built-in Ram memory.
  • Page 39 iii、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. 39/42...

  • Page 40: Network Configuration

    VI. Network Configuration i、 Configuration 1： Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only IP CAMERA connects to the internet For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start PPPoE.
  • Page 41 iii、 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. 41/42...

  • Page 42: Factory Default

    VII. Factory Default i、 To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP CAMERA. Factory Default iii、 Power on the camera. Don’t release the button during the system booting. iv、...
