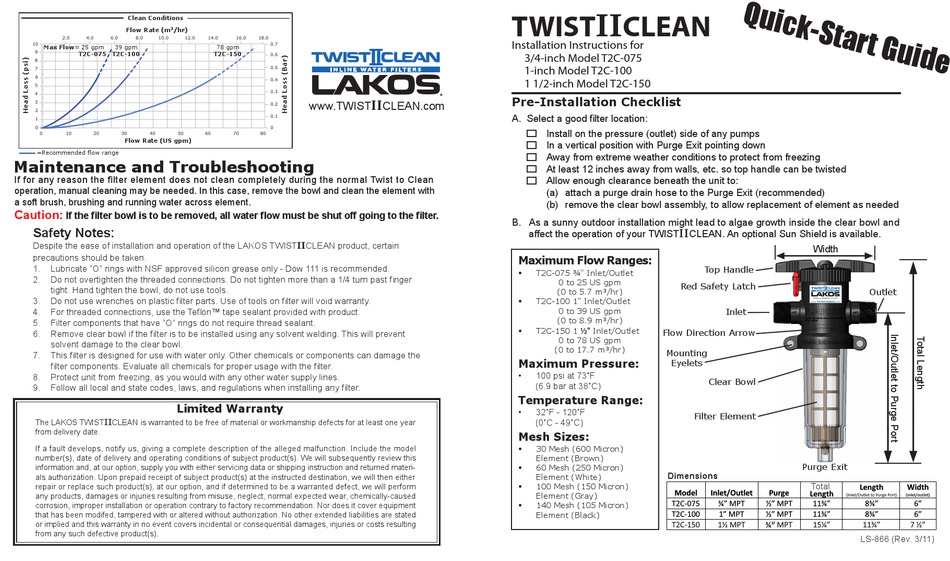

Clean Conditions
Flow Rate (m
3
/hr)
2.0
4.0
6.0
8.0
10.0
12.0
10
Max Flow= 25 gpm
39 gpm
9
T2C-075 T2C-100
8
7
6
5
4
3
2
1
0
0
10
20
30
40
50
Flow Rate (US gpm)
=Recommended flow range

Maintenance and Troubleshooting

If for any reason the filter element does not clean completely during the normal Twist to Clean
operation, manual cleaning may be needed. In this case, remove the bowl and clean the element with
a soft brush, brushing and running water across element.
Caution:
If the filter bowl is to be removed, all water flow must be shut off going to the filter.

Safety Notes:

Despite the ease of installation and operation of the LAKOS TWIST
precautions should be taken.
1. Lubricate "O" rings with NSF approved silicon grease only - Dow 111 is recommended.
2. Do not overtighten the threaded connections. Do not tighten more than a 1/4 turn past finger
tight. Hand tighten the bowl, do not use tools.
3. Do not use wrenches on plastic filter parts. Use of tools on filter will void warranty.
4. For threaded connections, use the Teflon™ tape sealant provided with product.
5. Filter components that have "O" rings do not require thread sealant.
6. Remove clear bowl if the filter is to be installed using any solvent welding. This will prevent
solvent damage to the clear bowl.
7. This filter is designed for use with water only. Other chemicals or components can damage the
filter components. Evaluate all chemicals for proper usage with the filter.
8. Protect unit from freezing, as you would with any other water supply lines.
9. Follow all local and state codes, laws, and regulations when installing any filter.

Limited Warranty

II
The LAKOS TWIST
CLEAN
is warranted to be free of material or workmanship defects for at least one year
from delivery date.
If a fault develops, notify us, giving a complete description of the alleged malfunction. Include the model
number(s), date of delivery and operating conditions of subject product(s). We will subsequently review this
information and, at our option, supply you with either servicing data or shipping instruction and returned materi-
als authorization. Upon prepaid receipt of subject product(s) at the instructed destination, we will then either
repair or replace such product(s), at our option, and if determined to be a warranted defect, we will perform
any products, damages or injuries resulting from misuse, neglect, normal expected wear, chemically-caused
corrosion, improper installation or operation contrary to factory recommendation. Nor does it cover equipment
that has been modifed, tampered with or altered without authorization. No other extended liabilities are stated
or implied and this warranty in no event covers incidental or consequential damages, injuries or costs resulting
from any such defective product(s).
14.0
16.0
18.0
0.7
78 gpm
T2C-150
0.6
0.5
0.4
0.3
II
www.TWIST
CLEAN.com
0.2
0.1
0
60
70
80
II
CLEAN product, certain
II
TWIST
CLEAN
Installation Instructions for
3/4-inch Model T2C-075
1-inch Model T2C-100
1 1/2-inch Model T2C-150

Pre-Installation Checklist

A. Select a good filter location:
Install on the pressure (outlet) side of any pumps
In a vertical position with Purge Exit pointing down
Away from extreme weather conditions to protect from freezing
At least 12 inches away from walls, etc. so top handle can be twisted
Allow enough clearance beneath the unit to:
(a) attach a purge drain hose to the Purge Exit (recommended)
(b) remove the clear bowl assembly, to allow replacement of element as needed
B. As a sunny outdoor installation might lead to algae growth inside the clear bowl and
II
affect the operation of your TWIST
CLEAN. An optional Sun Shield is available.

Maximum Flow Ranges:

T2C-075 ¾" Inlet/Outlet
0 to 25 US gpm
Red Safety Latch
(0 to 5.7 m³/hr)
T2C-100 1" Inlet/Outlet
0 to 39 US gpm
(0 to 8.9 m³/hr)
1/2"
T2C-150 1
Inlet/Outlet
Flow Direction Arrow
0 to 78 US gpm
(0 to 17.7 m³/hr)
Mounting

Maximum Pressure:

Eyelets
100 psi at 73˚F
(6.9 bar at 38˚C)

Temperature Range:

32˚F - 120˚F
(0˚C - 49˚C)

Mesh Sizes:

30 Mesh (600 Micron)
Element (Brown)
60 Mesh (250 Micron)
Dimensions
Element (White)
100 Mesh (150 Micron)
Element (Gray)
140 Mesh (105 Micron)
Element (Black)
Width
Top Handle
Outlet
Inlet
Clear Bowl
Filter Element
Purge Exit
Total
LS-866 (Rev. 3/11)
