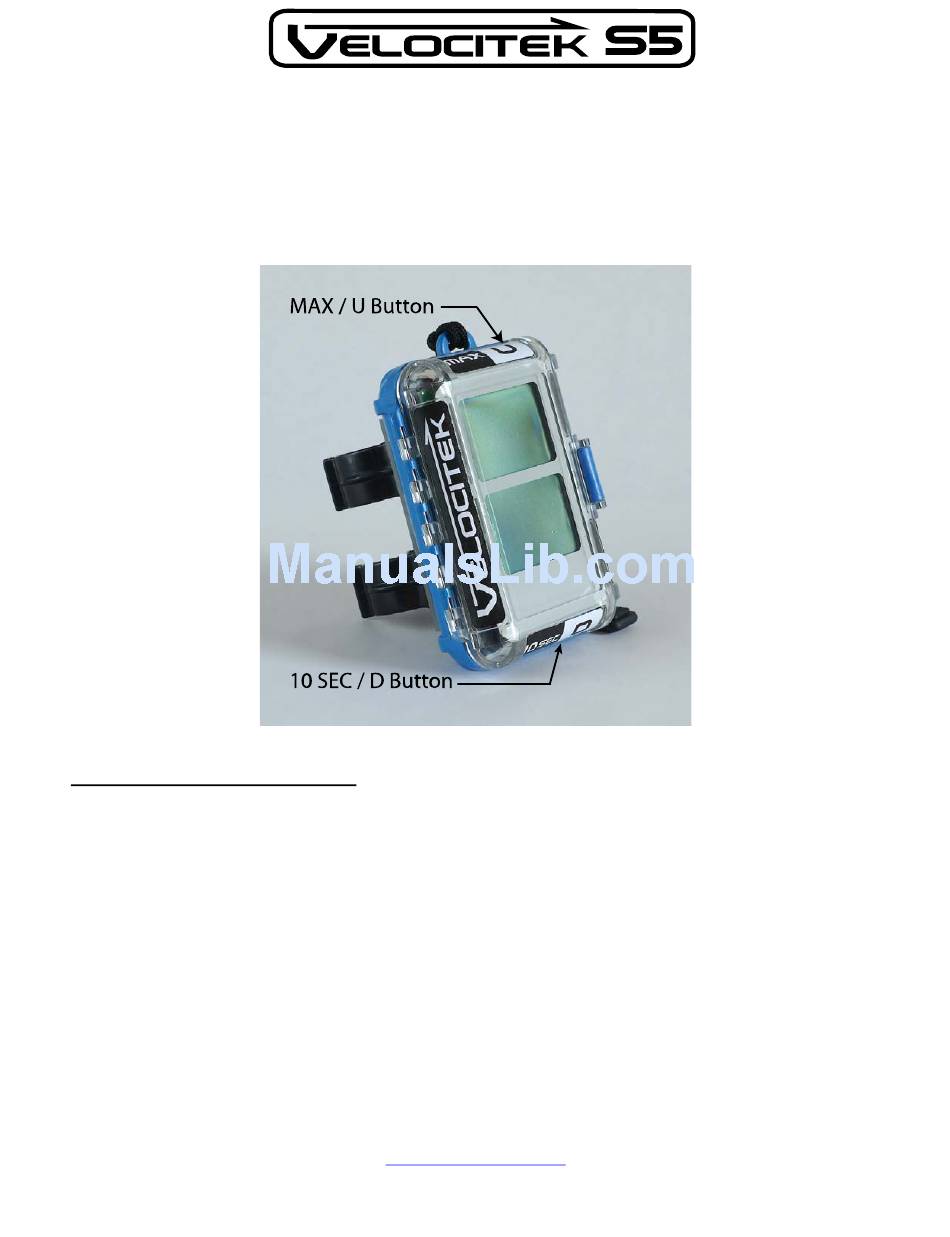

Thank you for purchasing the Velocitek S5 GPS Race Computer!
The S5 can provide you with the following information:
•
Current speed in knots
•
Upwind and downwind velocity made good (VMG) in knots
•
Absolute maximum speed in knots
•
Fastest 10 second average speed in knots
Turning the S5 on for the first time
1. Open the waterproof case and turn on the S5 using the black plastic switch. Make sure that you are looking
at the LCD display when you activate the switch.
When you first activate the switch, the display will show a number between 0 and 99 for about 3 seconds.
This represents the amount of energy left in the device's batteries. 99 represents fresh batteries and 0
represents dead ones.
2. The display will then switch to showing the letters "rE" for reset. Wait for 3 seconds and the display will
start flashing "00"
3. Place the device outdoors with a clear view of the sky for 15 minutes. This allows the device to download
the information it needs to operate from Global Positioning System (GPS) satellites. While the information
is being downloaded the display will blink "00". After the initial download, this procedure only needs to
be repeated when the batteries are changed. This device will not work indoors, in built-up urban areas or
www.velocitekspeed.com
Advertisement
Related Manuals for Velocitek S5
Summary of Contents for Velocitek S5
- Page 1 Fastest 10 second average speed in knots Turning the S5 on for the first time 1. Open the waterproof case and turn on the S5 using the black plastic switch. Make sure that you are looking at the LCD display when you activate the switch.
- Page 2 Operating Modes The S5 has two operating modes: speedometer mode and VMG mode. The decimal point after the second digit in the display is used to indicate which mode the device is in. For example the number 2.3 will be shown as “2 . 3” in speedometer mode and “2 .
- Page 3 Tip for Windsurfers: Twist the S5 around your boom so that it faces your sail before you tack. You will then be able to read the display (now upside down) through your sail window on the new tack.
- Page 4 In speedometer mode the accuracy of the S5 is better than +/- 0.2 knots (0.36 km/h). In VMG mode accuracy of the S5 depends on what angle to the wind you are sailing but is generally better than +/- 1 knot (normally closer to +/- .3 knots).
