Summary of Contents for Intelligent M14A

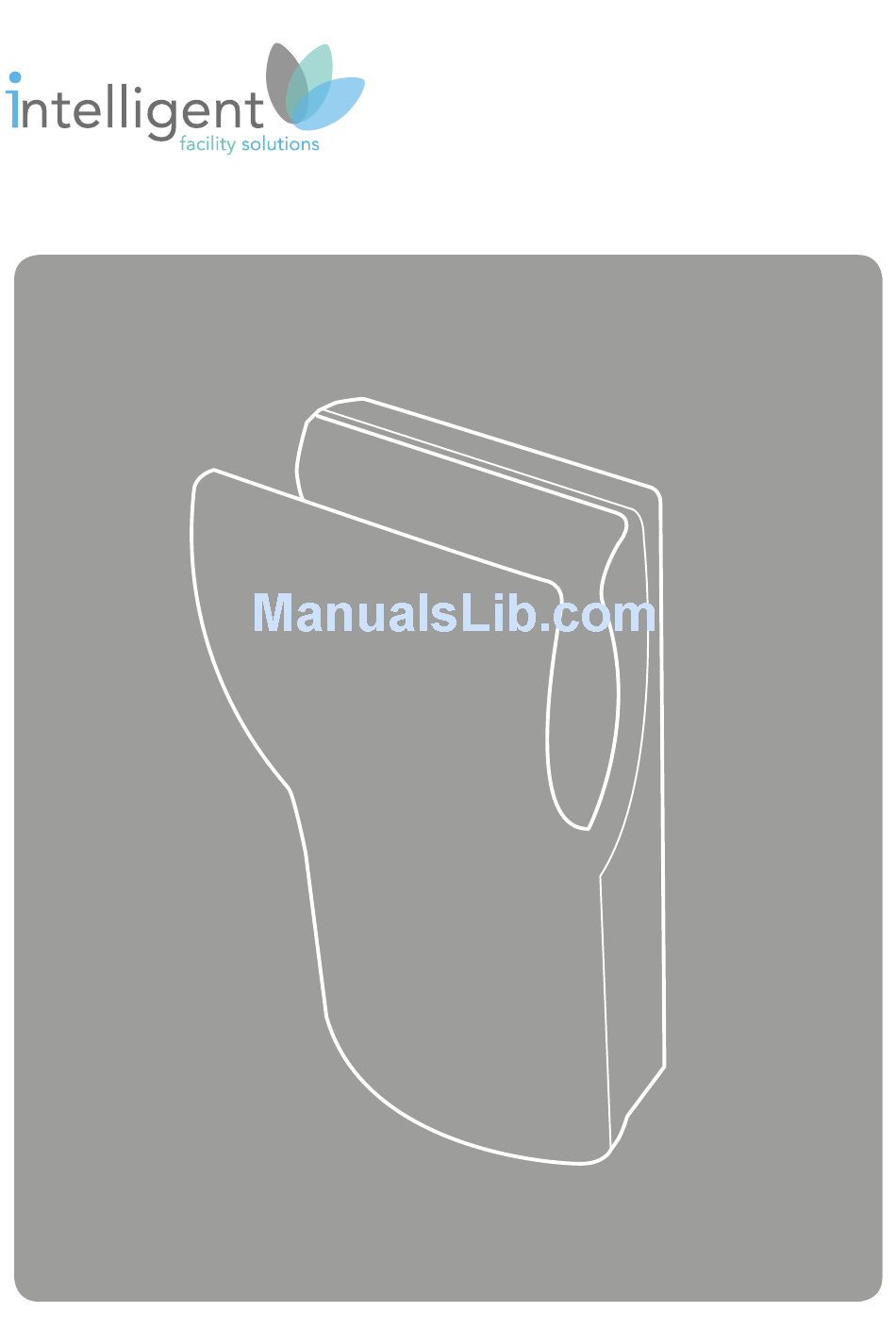

- Page 1 D-Flow user manual...
- Page 2 Easy maintenance. 234 – 410 Km/h Air velocity Components & materials: 35 ºC Air temperature (10 cm distance/21ºC) M14A: ABS cover, white finish. 62 – 72 dBA Sound pressure (at 2m) M14AC: ABS cover, satin finish. IPX4 Protection rating ...
- Page 3 Operation Place the hands between the air outflow valves, inside the hand dryer. The dryer will start automatically, and go on with no interruption as long as the hands are kept in the detection range of the sensor. Move the hands vertically in order to dry them completely.
-
Page 4: Safety Instructions
- To fix the hand dryer to the wall follow the instructions of this manual and use the template provided with the device as well. To fix the machine with adhesives or similar methods is forbidden by the European safety standards. -10- Intelligent Facility Solutions... -
Page 5: Operation
The speed of the air generated by the hand dryer can be adjusted, to achieve an optimum balance between the drying power and noise level. Available finishes: White (M14A) Satin (M14ACS) Dimensions: 656 mm (H) x 320 mm (W) x 226 mm (D). -
Page 6: Installation
Make sure that the machine is disconnected from the electric power supply, before performing maintenance operation. To install the hand dryer follow the pictures contained in the figure 2. The hand dryer must be fitted to the wall by using the upper metal plate (support) which is supplied. -12- Intelligent Facility Solutions... - Page 7 www.mediclinics.com After fitting the metal plate, the hand dryer should be hung on it. The lower screw fits safely the appliance to the wall. So, to assemble the hand dryer the following steps must be done: Make five 8 mm (0.31”) diameter drill holes in the wall using the provided template (1). ...
-
Page 8: Maintenance
ONLY A QUALIFIED TECHNICIAN CAN INSTALL, ADJUST AND MAINTAIN THIS HAND DRYER. Adjust the speed of the motor To adjust the speed of the motor turn the sensor potentiometer wheel as the picture 4 shows. Figure 4 -14- Intelligent Facility Solutions... -
Page 9: Air Filter
www.mediclinics.com Pilot light information Light leds on the top of the hand dryer (see figure 5) give advice about: 1: Standby (green colour) or operation status (orange colour). 2: Red colour led bright when motor has a problem of consumption (due to brushes which may be wearing out or due to a blocked or locked sate of motor). -
Page 10: Water Tank
Remove the water tank from its fitting place, empty and clean the tank and re-place it. Press the push button as indicated in Fig. 9 until remove all the water contained into the water tank. Figure 8 Figure 9 CONNECTION DIAGRAM Figure 10 -16- Intelligent Facility Solutions... -
Page 11: Electric Shock Risk
www.mediclinics.com Figure 11 - The installer must make sure that the electric system is grounded in accordance with the law in force. DANGER. - Make sure that the electric system has a high-sensitivity Electric shock risk breaker I n ≤ 0.03 A. - Make sure the machine is disconnected from electric power supply, before performing maintenance operation. -
Page 12: Manual De Mantenimiento
MANUAL DE MANTENIMIENTO MAINTENANACE MANUAL M14A / M14ACS DUALFLOW PLUS Normas de seguridad Safety regulations Todo proceso de instalación, mantenimiento y reparación debe ser All installation, maintenance and repair tasks must be performed by efectuado por personal técnico cualificado. qualified technicians. - Page 13 LEYENDA DE LOS INDICADORES LED /LED INDICATORS LEGEND Esperar 3-5 segundos a que la máquina se estabilize antes de diagnosticar algún problema. Wait 3-5 seconds for the machine to stabilize before diagnosis of any problems. Verde Green El secador está listo para funcionar en cuanto se introduzcan las manos. The dryer is ready to run as soon as the hands are introduced.
- Page 14 Then slide the front to the top. Para realizar el montaje del frontal, siga los pasos anteriores en orden inverso. To fit the front cover, follow the previous steps in reverse order. Intelligent Facility Solutions 4 / 12 MEDICLINICS – Dualflow Plus Mantenimiento - Maintenance...
- Page 15 CAMBIO DE MOTOR - MOTOR REPLACEMENT Extraiga el conjunto filtro, desclipandolo de la base. ___________________ Remove the filter assembly by unclipping it from the base. Desatornillar, usando una llave allen de 2,5 mm, los 4 tornillos que sujetan el frontal a la base. ___________________ Unscrew the four screws securing the front cover to the base.
- Page 16 Mediante un suave pero firme tirón separe la tapa motor de la base. ___________________ With a gentle but steady pull separate the motor cover of the base. Intelligent Facility Solutions 6 / 12 MEDICLINICS – Dualflow Plus Mantenimiento - Maintenance...
- Page 17 Desconecte los cables de alimentación del motor presionando el clip de seguridad del conector y tirando del conector suavemente. ___________________ Unplug the motor power wires pushing the safety clip of the faston and pulling the faston out carefully. Extraiga el motor. ___________________ Remove the motor.
- Page 18 Realice el montaje siguiendo los pasos anteriores en sentido inverso. Carry out the same procedure for the second motor brush. Fit the new brushes following the previous steps in reverse order. Intelligent Facility Solutions 8 / 12 MEDICLINICS – Dualflow Plus Mantenimiento - Maintenance...
- Page 19 CAMBIO DE PLACA ELECTRÓNICA - ELECTRONIC CIRCUIT BOARD REPLACEMENT Extraiga el conjunto filtro, desclipandolo de la base. ___________________ Remove the filter assembly by unclipping it from the base. Desatornillar, usando una llave allen de 2,5 mm, los 4 tornillos que sujetan el frontal a la base. ___________________ Unscrew the four screws securing the front cover to the base.
- Page 20 Extraiga la placa electrónica. ___________________ Remove the electronic circuit board. Realizar el montaje siguiendo los pasos anteriores en sentido inverso. Fit it following the previous steps in reverse order. Intelligent Facility Solutions 10 / 12 MEDICLINICS – Dualflow Plus Mantenimiento - Maintenance...
- Page 21 REGULACIÓN DE POTENCIA DEL MOTOR - MOTOR POWER ADJUSTMENT Abra la tapa lateral de conexiones. ___________________ Open the control switch cover. Utilizando un destornillador de punta plana gire el potenciómetro en sentido anti horario para disminuir la potencia del motor. ___________________ Using a flat head screwdriver, turn the potentiometer rod counterclockwise to decrease the motor power.
- Page 22 Mediclinics, S.A., reserves the right to make changes and/or modifications to the products and their specifications without prior notice. Rev. 09-13 © mediclinics S.A Intelligent Facility Solutions 12 / 12 MEDICLINICS – Dualflow Plus Mantenimiento - Maintenance...
- Page 23 Intelligent Facility Solutions Ltd Electric Works 3 Concourse Way Sheffield S1 2BJ T: +44 (0)114 2866394 email: service@ihdryers.co.uk www.intelligenthanddryers.com...
