READ BEFORE USE!
WARNING
USE LIQUEFIED PETROLEUM GAS ONLY!
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier form a neighbor's
phone.Follow the gas supplier's instructions.
• If you cannot reach yous gas supplier,call the fire
department.
and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING:
If the information in this manual is not followed exactly
,a fire or explosion may result causing property
damage,personal injury or loss of life.
Qindao Hichanse Group Co.,Ltd
Eastern Wenhua Road, Jimo Economic Developing
Zone, Shandong Province ,China
ASSEMBLY INSTRUCTIONS
ITEM Number: ALZ513
Product Name: Burlington LP Outdoor Fireplace
DANGER
1.Shut off gas to the appliance.
2.Extinguish any open flame.
3.If odor continues,keep away from the appliance and immediate
your gas supplier or fire department
WARNING
Improper installation, adjustment,alteration,service or maintenan
cause injury or property damage. Read the installation,operating
maintenance instructions thoroughly before installing or servicing
equipment.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
-
Battery may contain mercury. Do not deposit in fire or put in tras
Recycle manage as hazardous waste.
Installation
If the fire pit is stored indoors, leave LP-Gas cylinder outdoors.
1
WARNING
For Outdoor Use Only!
Use Liquefied Petroleum Gas (LP-Gas) Only
Propane cylinders sold separately
If you smell gas:
WARNING
Turn off gas supply when the fire pit is not in use.
WARNING
DANGER
This appliance can produce car
monoxide which has no odor
Using it in an enclosed space c
you.
Never use this appliance in an e
space such as a camper, tent, c
home.
CARBON MONOXIDE HAZ
Advertisement
Summary of Contents for Qindao Hichanse Group ALZ513

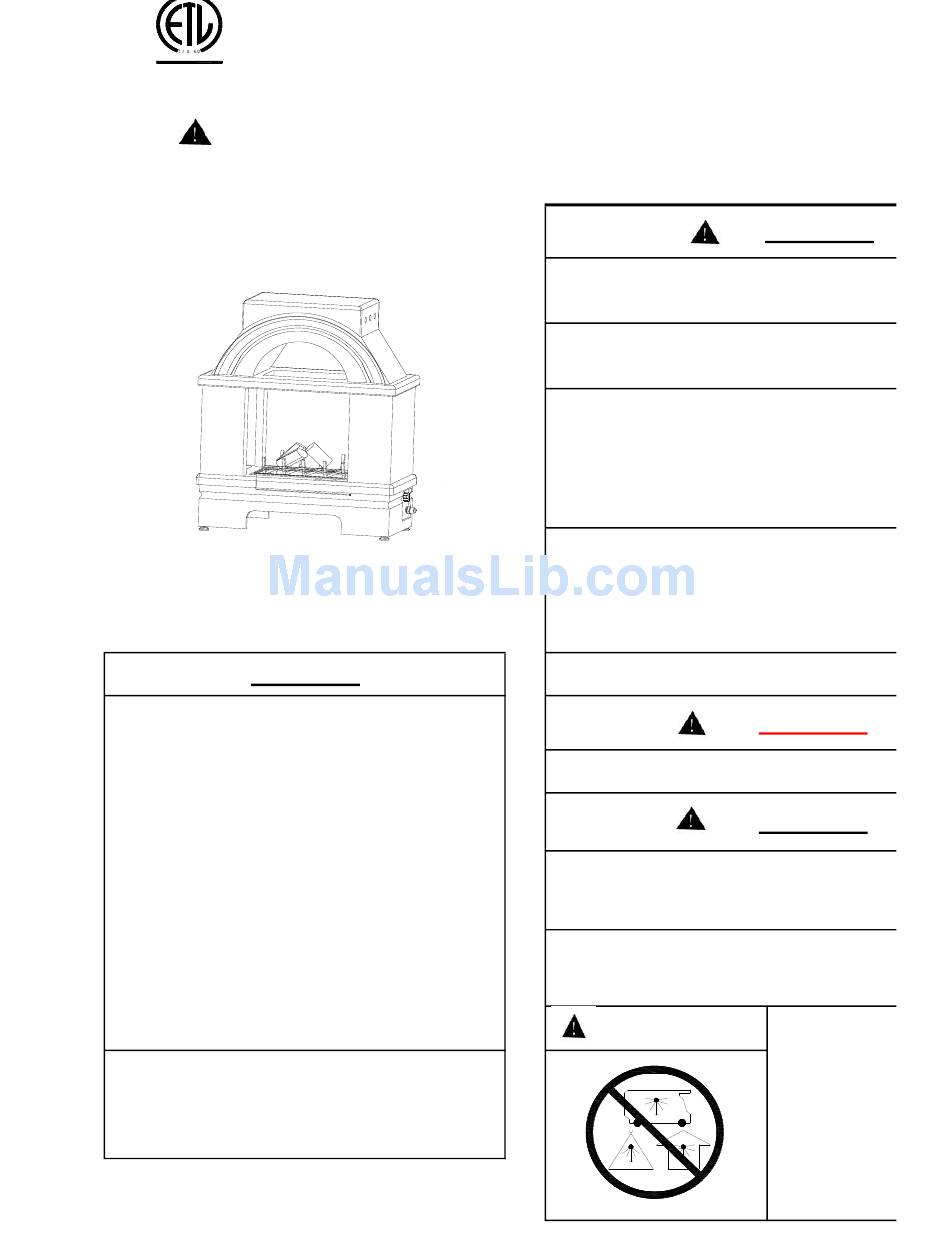

- Page 1 ASSEMBLY INSTRUCTIONS Intertek 3 1 9 5 4 0 2 READ BEFORE USE! ITEM Number: ALZ513 Product Name: Burlington LP Outdoor Fireplace WARNING For Outdoor Use Only! Use Liquefied Petroleum Gas (LP-Gas) Only Propane cylinders sold separately DANGER If you smell gas: 1.Shut off gas to the appliance.
-
