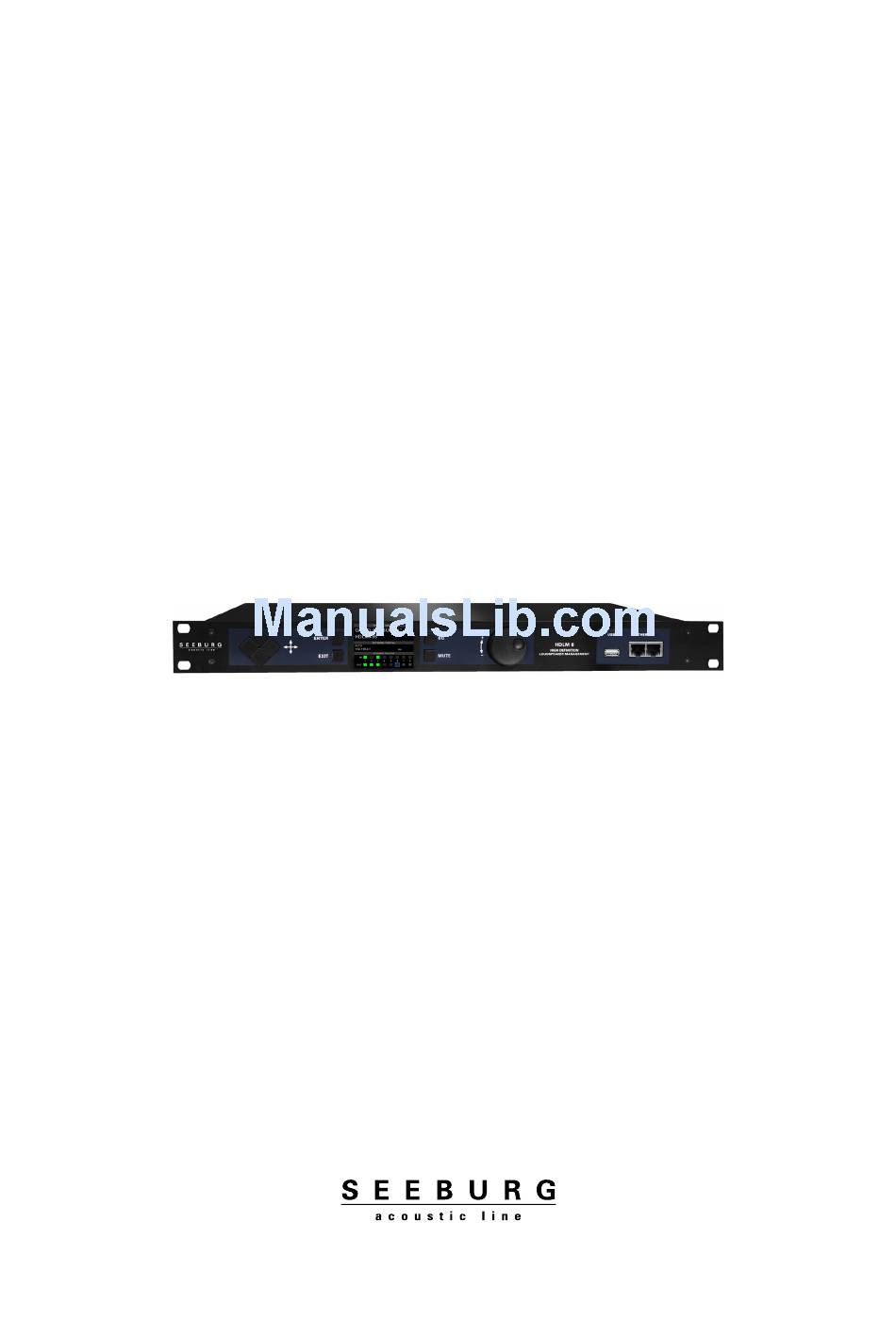

- Page 1 SEEBURG HDLM 8 Operation Manual HIGH DEFINITION LOUDSPEAKER MANAGEMENT...
- Page 2 You may download this manual directly from your HDLM 8 by following URL: http://<IP address of your HDLM 8 >/manual.pdf Do not open the top cover of the HDLM 8. There are no user serviceable parts inside. Improper operation, handling or maintenance can result in death or severe...
-
Page 3: Table Of Contents
Contents 1. Introduction 1.1. Signal Path ..........1.2. - Page 4 3.14. Input Bus Map ..........3.14.1.
-
Page 5: Introduction
Remote Control without any Software Installation You can control the HDLM 8 without the need of installing any software to your computer. Simply use your web browser to reach the most important parameters in real time. Multiple users can control the device at the same time. -
Page 6: Restoring After Power Failure
HDLM 8, you may add additional loudspeaker systems comfortably using a proprietary description language. 1.2. Restoring after Power Failure In the case of a power failure, all parameters will be restored automatically. The HDLM 8 saves changes after approx. five seconds to its internal memory. -
Page 7: Connections
2. Connections 2.1. Power Supply The HDLM 8 has a built-in universal power supply, which will work at all voltages worldwide between 90 and 240 volt and a frequency of 50 to 60 hertz. Thanks to the Neutrik PowerCon, the power cord is mechanically safe connected to the HDLM 8. -
Page 8: Usb Interface
This is also ideal for connecting third party networking devices, such as lighting or video equip- ment, or for the transmission of audio signals via DANTE or AVB. The data packets of the HDLM 8 are relatively small. The communication works stable even in heavy-loaded networks. -
Page 9: Operation
See also the definition of some terms as well as an overview of keyboard operation from page 31 onwards. 3.1. Home Page with Main Menu After powering up the HDLM 8, the home page appears on the display. On account of large fonts this page is easy to read, even from a distance. -
Page 10: Input Of Values
Permanent holding down of a button leads to key repeat, similar as a computer keyboard. Some menu entries end with three points (“...”), as an indication for another menu beyond that. Figure 3.1.: Cursor Buttons To return to the home page, hold down for about three seconds. -
Page 11: Mute All Immediately
3.8.2. Predefined Keywords Where appropriate, the HDLM 8 offers a small list of predefined keywords below a text input field. Use the list to assemble a complete label in seconds without the need of wheeling in character by character. -
Page 12: Digital Input States
3.9. Digital Input States The state of the incoming digital signal will be shown in the right column of the network/digital menu item. See page 18 Digital Inter- faces. Digital Input States 3.10. Fast Navigation for the Advanced User Combine the cursor buttons with the wheel to move on faster. Hold down a button while turning the wheel. -
Page 13: New Project
3.11.1. New Project A new project requires necessarily a label. Using the wheel, enter the name character by character and confirm with ENTER After creating a new project, all Outputs will be muted and set to Direct Out. All EQs will be set to flat. Input of Project Name 3.11.2. -
Page 14: Deleting
Hint: the current loaded project cannot be deleted. 3.11.5. Project Import from USB Plug in an USB stick into the HDLM 8 and confirm the message USB device inserted?. The USB device will be searched on its top level for files having the .hdlm8 extension. -
Page 15: Project Export To Usb
Export Projects Wait for the operation to be completed. Additionally, the exported file contains all Loudspeakers used in the corresponding project, so you may import this file on any HDLM 8 without trouble. Export Do not remove the USB stick before you have confirmed this message... -
Page 16: Device Settings
V of the amplifier. The peak HDLM 8 will ensure that the output signal will never exceed this limit, even if there are larger values in the loudspeaker settings. By that, amplifiers without or with insufficient limiters may be used safely. -
Page 17: Device Name
USB stick at this point. The top level of the USB device will be searched for the newest version. All outputs will mute. This process takes about five minutes. After completion, the HDLM 8 will reboot and reactivate its outputs. Firmware Update Do not interrupt the ongoing update process! Provide a stable power supply! An interruption may cause that the device no longer works. -
Page 18: Network And Digital Interfaces Menu
3.13.2. Input C Mode / Input D Mode Switch here the XLR inputs C and/or D between analog mono or stereo digital AES/EBU. About signal routing, see page 21 Physical Inputs. Network experts will use these parameters to control the HDLM 8 over the Internet. -
Page 19: Redundancy Mode (Fallback)
3.13.4. Optical Input (optional) Use the wheel to tell the HDLM 8 which digital input format is used. ADAT will take eight tracks, but is fixed to 48kHz sample rate. SPDIF will take two tracks and may be feed with a sample rate between 32kHz and 96kHz. -
Page 20: Input Bus Map
3.14. Input Bus Map Select a channel of the first row in the Channel Status section on the home page and confirm with ENTER Channel Status The screen changes to the Input Bus Map. The selected channel is highlighted. Below each row, a green line is shown, which indicates the level meter of the bus. -
Page 21: Label
Select the physical inputs to mix on this Input Bus using the cursor buttons and the wheel. Changes take effect immediately. Please note that depending on the configuration of the HDLM 8, not all physical inputs are available. Not available physical inputs will be displayed gray. -
Page 22: Gain
With Network Link, you may group all parameters of the Input Busses across multiple devices on the connected network. The operation is the same as Local Link. Any number of HDLM 8 may be linked together, provided they are in the same network... -
Page 23: Input Bus Eq
3.16. Input Bus EQ Invoke the Input Bus EQ using . Make sure that an Input Bus was selected previously. The green curve shows the resulting frequency response of all EQs in this channel, independent of the shown handles. There are four tabs on the top for the sub pages Graphic EQ, Para- metric EQ, Shelving EQ and High Pass Filter. -
Page 24: High Pass Filter (Hpf)
3.16.4. High Pass Filter (HPF) Set the frequency and select a type (Table 3.2). Switch the filter on or off with Bypass HPF. The handle shows the 3dB position. High Pass Filter Table 3.2.: Filter Types in the High Pass Filter Label Description BW12... -
Page 25: Db Scales
Unconfigured channels are shown and handled as Direct Out, which means that there will be the full-range signal on that output. Make sure that it does not reach a speaker which could be damaged! Table 3.3.: Specified key words for types (paths) of speakers Key Word Path empty... -
Page 26: Loudspeaker
3.18.2. Loudspeaker Choose a loudspeaker from the list for loading it to the current chan- nel. Loudspeaker Library Confirm the message. The loudspeaker will be loaded and muted. In case of need for more channels for the loaded loudspeaker, one ore more of the following channels may be freed from the Output Map. -
Page 27: Local Link
With Network Link, you may group all parameters of the Outputs across multiple devices on the con- nected network. The operation is the same as Local Link. Any number of HDLM 8 may be linked together, provided they are in the same network. -
Page 28: Shelving Eq
3.19.2. Shelving EQ Use the horizontal cursor buttons to select the low shelf or the high shelf EQ. Depending on the selected menu item, set the gain or fre- quency using the wheel. (Re-)activate an EQ with Bypass. Use Flat All to reset all gain settings. -
Page 29: Network Setup
Microsoft Internet Explorer is not supported. To connect to the HDLM 8, open the web browser application and enter the IP address shown in the display. After about ten seconds, the user interface is ready and the device can now be controlled in real time. -
Page 30: Purpose
0 to 255. There is a breakdown in public and private address spaces. In the HDLM 8 environment, you will usually make use of the private address space. Following ranges may be used: Table 4.1.: Private IP Address Space... -
Page 31: Appendix
A.1.4. Input Bus An Input Bus is an internal input channel, working independently of the physical inputs. Any physical input may be mixed together to one Input Bus. There are eight Input Busses in the HDLM 8. A.1.5. Output An Output is an output channel, which is fixed to its dedicated physical analog output. -
Page 32: Dbu, Dbv, Dbfs And Dbgr
Positive dBFS Values Values above 0dBF S are not possible in analog terms. But the HDLM 8 has the ability to reach any level without distortion, internally. Levels above 0dBF S will be effectively limited by the output limiters. -
Page 33: Faq - Frequently Asked Questions
The user configurable EQs are only subject for correcting the final system. Using a low pass filter, one might misuse this as an cross-over filter. Thus, the entire conception of the HDLM 8 would be destroyed. Cross-over filters (including low pass) are only available in the Loudspeaker Library. -
Page 34: Menu Structure
A.5. Menu Structure The following diagram shows the structure of the menus presented on the display of the HDLM 8. Figure A.1.: Structure... -
Page 35: Product Specifications
A.6. Product Specifications Features Analog Inputs 4x Balanced Analog Outputs 8x Balanced Digital Inputs 2x Stereo AES/EBU (Analog C+D are switchable to AES/EBU) Optional I/O ADAT, AVB Audio-Video-Bridging Network Connection 2x Switched 100 MBit Ethernet Data Connection 1x USB 2.0 Power Connection Neutrik PowerCon Power Supply...
