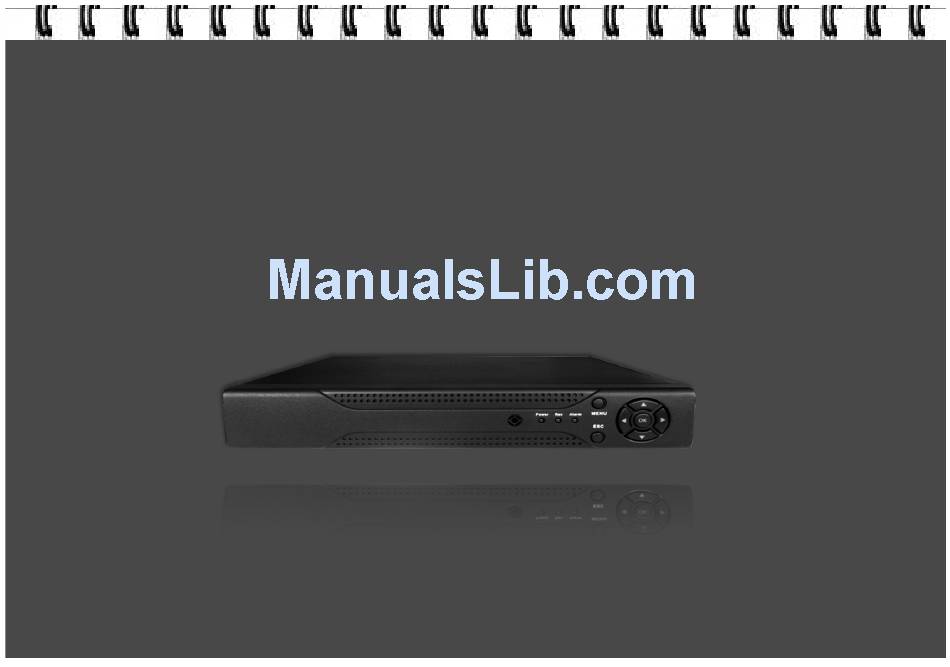

  • Page 1 Quick!Start!Guide ADR!(Analog!Digital!Recorder) Version:!1.0! Date:!October!2015!
  • Page 2: Safety Precautions

    Safety Precautions Please read the following precautions before startup. Do use the AC adapter that comes with this device. Use of other AC Do not install any heat adapter may lead to sources such as radiators or malfunction, heat up, other devices near ADR.
  • Page 3: Product View

    Product View Power indicator light Front View Record indicator light Alarm indicator light Menu Direction Keys & Enter Rear View Video Input Video Output Power Input RS485 USB Interface Audio Input HDMI Audio Output © Copyright 2015 VT-DVR Quick Start Guide P a g e...
  • Page 4: Hard Disk Installation

    Hard Disk Installation Please install hard disk in the device by following the below steps, when you are using the product for the first time. Remove the set Connect power cable screws on the upper Fasten the hard disk and data cable to the Remove the cover.
  • Page 5: Basic Connection

    Basic Connection The below diagram shows the basic connection of ADR with Analog camera. Note: If you want to connect IP Camera with ADR, please refer to Basic Connection section provided in NVR Quick Start Guide. © Copyright 2015 Quick Start Guide P a g e VT-DVR...
  • Page 6 Power ON After connecting the camera and ADR as per the above connection diagram, please follow the below steps for power ON. Plug the power supply and turn on the power supply switch% After%ADR%is%turned%ON,%you%will% hear%a%beep!from%ADR.%This% indicates%that%ADR%is%ready%for% recording. This%indicates%ADR%is%turned% Note: Make sure that the input voltage corresponds with the switch of the ADR power supply. Power supply demands: 220V±10% /50Hz.
  • Page 7 Preview in Analog Camera After power ON, please follow the below steps for preview. No%Password% When ADR boots up, the user must login and the system provides the corresponding functions with the user purview. While startup, default user will be admin with no password.
  • Page 8 Preview in IP Camera If you have connected IP Camera with ADR, then follow the below steps after login for preview. 1.! S elect Channel Type Note:Then follow the steps provided in NVR quick start guide for preview. 2.! C lick OK ©...
  • Page 9 THANK YOU FOR CHOOSING OUR PRODUCTS. ZK#Building,#Wuhe#Road,#Gangtou,#Bantian,#Buji#Town,# Longgang#District,#Shenzhen,#China#–#518129# ######www.zkteco.com# Functions and specifications of the product are subject to changes without notice due to quality enhancement or function update. For any inquiry on the product, please contact us.
