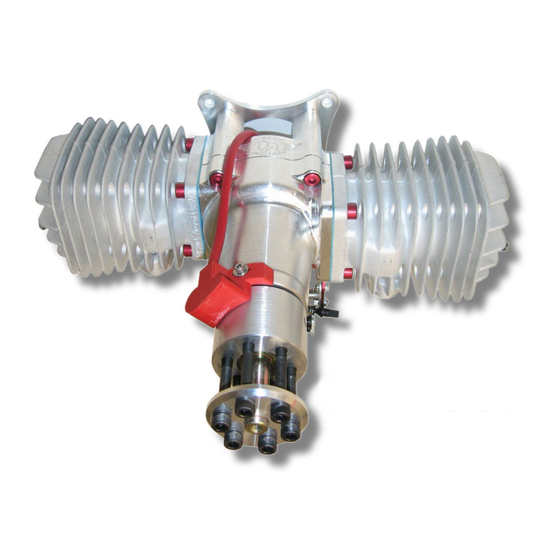

Desert Aircraft DA100-I Owner's Manual
  1. Manuals
  2. Brands
  3. Desert Aircraft Manuals
  4. Engine
  5. DA100-I
  6. Owner's manual

Desert Aircraft DA100-I Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Owners Manual
D
A
1
D
A
1
0
0
-
I
0
0
-
I
T
M
T
M
3/13

Advertisement

Table of Contents
loading

Related Manuals for Desert Aircraft DA100-I

Summary of Contents for Desert Aircraft DA100-I

  • Page 1 Owners Manual 3/13...

  • Page 2: Safety Instructions

    This motor can cause severe harm to you, and/or others, if misused or if these safety precautions and instructions are not observed. Desert Aircraft is not responsible for any loss, injury or damage resulting from the miss-use of its products.

  • Page 3: Motor Installation

    Motor Installation • Mount the motor using high grade 1/4" or 6mm dia. bolts with washers and locking nuts on the rear of the firewall. Make sure your firewall is structurally sound. The crankshaft centerline is in the exact center of the rear mounting plate bolt pattern. •...

  • Page 4: Ignition System

    Ignition System • The DA100-I uses two, 1 cylinder ignition units. One for the rear cylinder, and one for the front cylinder. The red sensors are marked F for the front ignition and R for the rear ignition. • When making electrical connections to the ignition systems, use the same gauge wire (or larger) as used on the red and black power leads on the ignition module, all the way to the battery pack.

  • Page 5: Fuel And Oil Mix

    • We recommend a high quality synthetic oil. As for the brand of oil, there are many good ones on the market. Some oils, and their mix ratios, that Desert Aircraft recommends are: Red-line Two Stroke Racing Oil (40 to 1) and Motul 800 (50 to 1). These oils can be found at most motorcycle shops.

  • Page 6: Troubleshooting

    Starting 1. Check that prop bolts are tight and spinner is secure. 2. Make sure the starting area is free of dirt, sand, gravel, or other loose debris 3. Turn on the radio system and check the throttle operation and position. 4.

  • Page 7: Maintenance

    Without enough force, the prop may "bounce" off compression and run backwards. IF ANY PROBLEM PERSISTS, PLEASE CONTACT DESERT AIRCRAFT FIRST! We designed and manufactured your engine and have built, serviced, and analyzed thousands more. We cover your engine’s warranty, not someone at the field or a stranger on the Internet. Please give us...
  • Page 8 • Do not disassemble the motor or ignition system. Disassembly of the motor or ignition system can void the warranty on that item. • Any modifications to the motor, or the ignition system, other than those authorized by Desert Aircraft, will void this warranty.
  • Page 9 _______________________________________________________________________ Prop used? ______________ Oil used? _____________ Gas type? _____________ Exhaust system type? __________________ Has the engine been sent in for service before? _______Why?________________ ______________________________________________________________________ ______________________________________________________________________ DESERT AIRCRAFT 1815 S. Research Loop Tucson, AZ 85710 520 722 0607 info@desertaircraft.com www.desertaircraft.com...
