Room Controller User Guide
You can find information over the following pages about how to operate the ModuSat Room Controller in your home.
Key to Symbols
The following symbols for the operating modes are
shown to the left hand side of the screen on the Room
Controller -
- Comfort
- Reduced
- Summer
- Winter
Description of Operating Modes
Comfort (ON)
Comfort mode should be set to the temperature required
when the home is occupied. (Recommended
temperature setting is 21°C)
Reduced (OFF)
Reduced mode should be set to the minimum
temperature required when the home is not occupied.
(Off) (Recommended temperature setting is 15°C)
ModuSat Room Controller
Heating
Comfort
Reduced
Summer
(only applicable
to cooling models)
Winter
The blue line indicates which programme mode(s) is selected.
Evinox Ltd T. +44 (0)1372 722277
2551127J
Anti-freeze
Anti-freeze is factory set at 10°C. This mode should be
selected to provide frost protection when the property is
unoccupied for long periods. (Note: Anti-freeze disables
the heating mode unless the temperature falls below the
set 10°C)
Summer
(Summer mode only applicable to cooling models)
When Summer mode is selected the heating is disabled
with hot water provision only.
Winter
When Winter mode is selected both heating and hot
water provision is available.
Use button "F" (Function) to change the
operating mode.
applicable to cooling models)
Hot Water
E. technical@evinox.co.uk
ModuSat

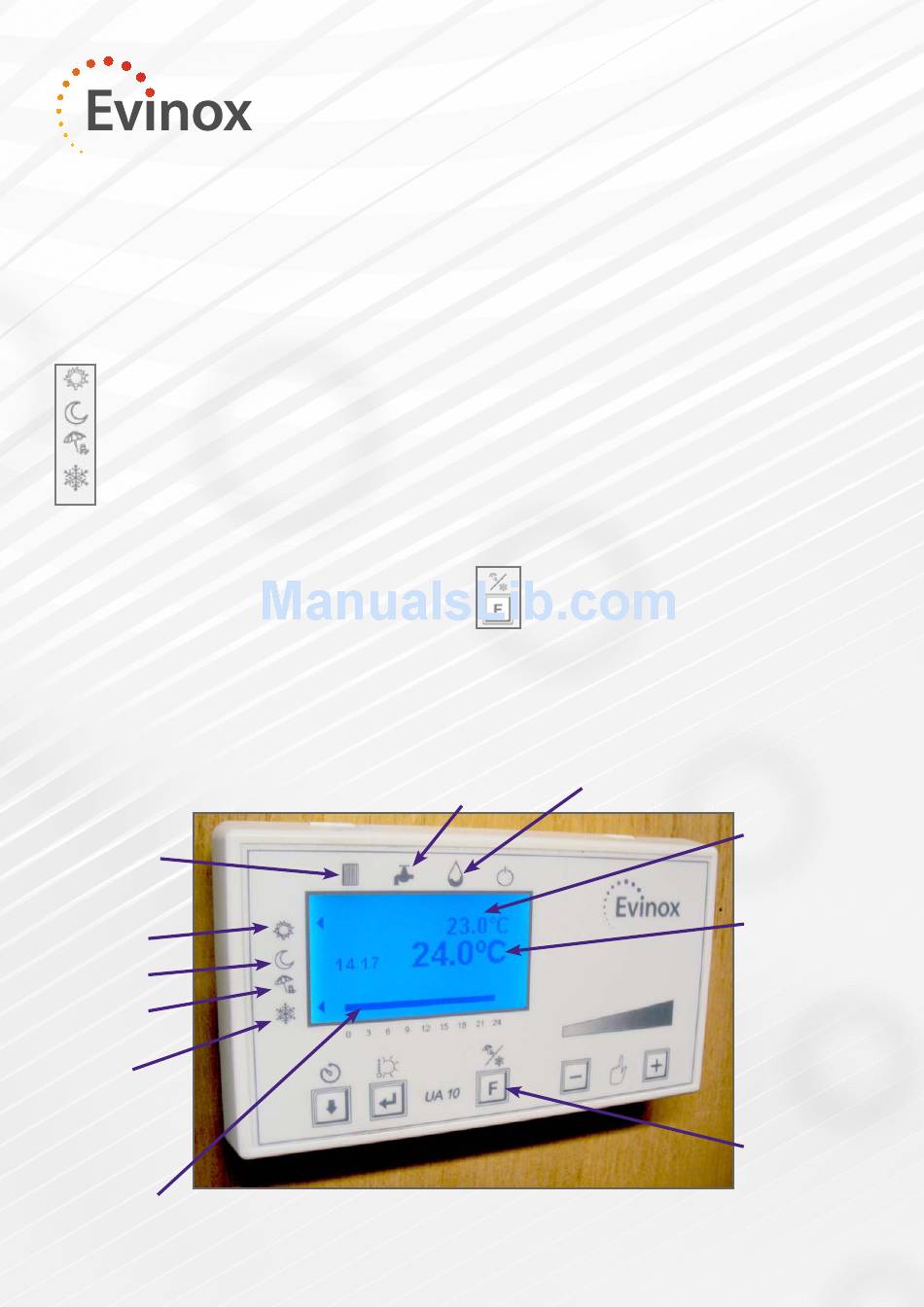

Room Controller
(Summer / Winter mode is only
.
Humidity
(Cooling model only)
Target
Temperature
Current
Ambient
Temperature
Function
W. www.evinox.co.uk
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evinox ModuSat UA10
Summary of Contents for Evinox ModuSat UA10
- Page 1 Hot Water (Cooling model only) Target Temperature Heating Current Ambient Comfort Temperature Reduced Summer (only applicable to cooling models) Winter Function The blue line indicates which programme mode(s) is selected. Evinox Ltd T. +44 (0)1372 722277 E. technical@evinox.co.uk W. www.evinox.co.uk 2551127J...
- Page 2 ModuSat Room Controller Parameter Setting This operation allows the user to set the temperature set point for comfort, reduced, anti-freeze and HW, that will follow the daily or weekly set time schedule. The temperature set point can be changed using the ‘+’ or ‘-‘ buttons. The set temperature can be changed within +/- 3 °C.
- Page 3 The user can read the consumption figures for the unit, for example: C for heating, C1 cooling (when present) and C2 cold water (Only when a cold water meter is installed within the dwelling and connected to the Evinox system) The display also shows the temperature and flow rate related to the three counters.
