Summary of Contents for SLE AEDI WASH GLOBUS 90 RGBW

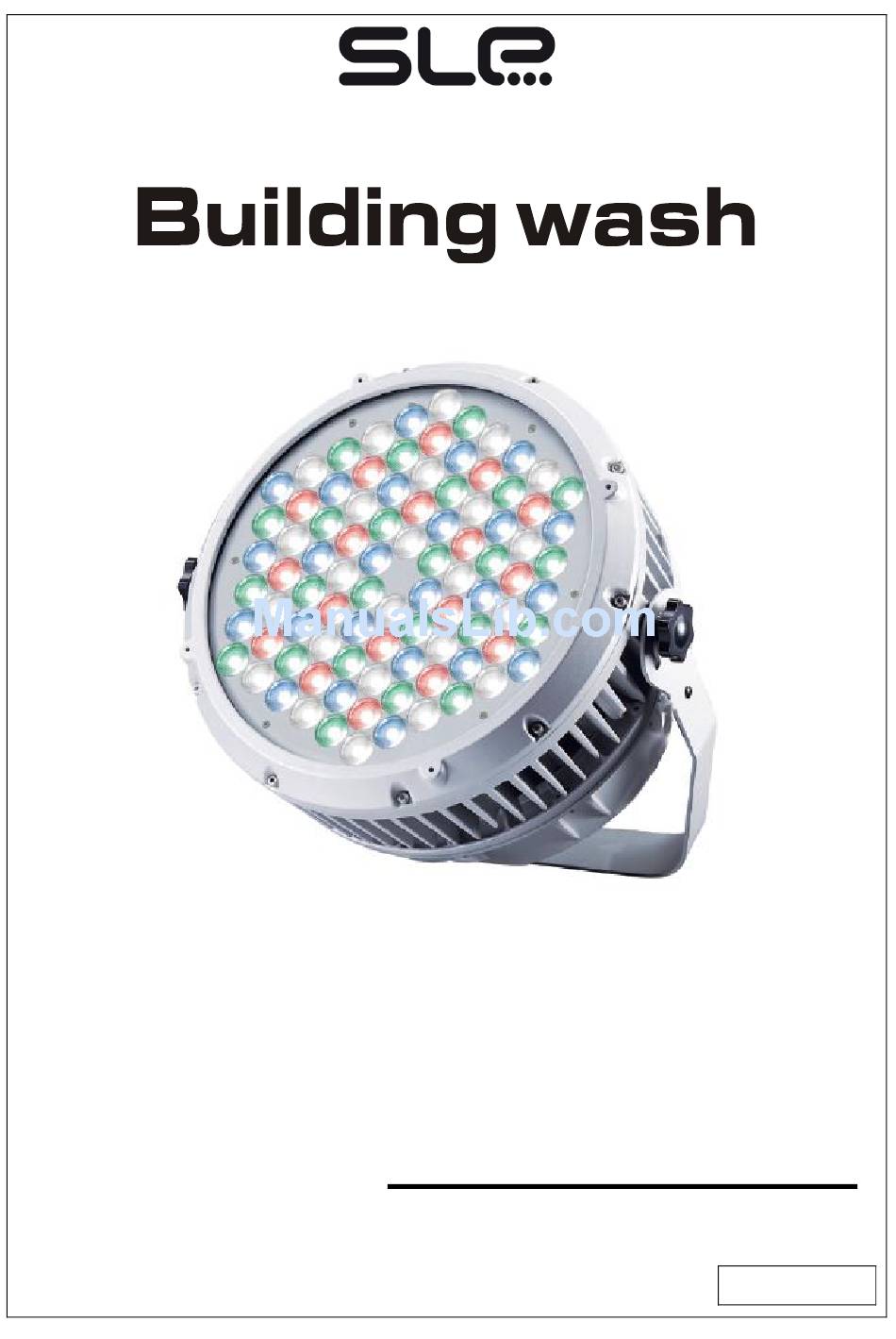

- Page 1 AEDI WASH GLOBUS 90 RGBW User Manual Please read the instructions carefully before use Version 1.0...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTION ..................2 2. ABOUT THE PRODUCT ..................4 3. TECHNICAL SPECIFICATIONS ................ 4 4. ACCESSORIES ....................... 5 5. HOW TO SET THE FIXTURE ................6 5.1 CONTROL PANEL ..................6 5.2 MAIN FUNCTIONS ..................7 6. HOW TO CONTROL THE UNIT ............... 13 6.1 DMX controller .................... -
Page 3: Safety Instruction
1. SAFETY INSTRUCTION Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Caution: ... - Page 4 Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off the mains power immediately. DO NOT operate in dirty and dusty environment, also cleaning fixtures regularly. DO NOT allow children to operate the fixture. ...
-
Page 5: About The Product
2. ABOUT THE PRODUCT The stylishly modern and unassuming exterior of AEDI WASH GLOBUS houses state-of-the-art RGBW LED technology and made using the highest quality materials and construction methods. Bringing the flexibility to outdoor application, this powerful lighting fixture is ideally suited to use in landscape and building illumination, and IP66 ensures safe operation in even the most demanding areas. -
Page 6: Accessories
Mounting： Manual Tilt Adjustable Bracket Optical systems: 6° / 15° / 25°/ 40°/ 60°/ 80° Light Source: 90 ×3W RGBW CREE LEDs LED color variants: red / green / blue / neutral white (4000° K) Lumen Output: >... -
Page 7: How To Set The Fixture
5. HOW TO SET THE FIXTURE 5.1 CONTROL PANEL 1. Display: To show the various menus and the selected functions Button: 2. MENU To select the programming functions To go backward in the selected functions 3. DOWN 4. UP To go forward in the selected functions To confirm the selected functions 5. -
Page 8: Main Functions
5.2 MAIN FUNCTIONS To select any functions, press the MENU button until the required one is shown on the display. Select the function by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup or it will automatically return to the main functions without any change after idling one minute. - Page 10 DMX 512 Address Setting Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX 512 address. Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without any change after one minute. Back to the previous functions without any change press the MENU button.
- Page 11 Program Shows Press the MENU button up to when the is shown on the display. Press the ENTER button and select the mode, Press the ENTER button and the display will blink. Use （Show 18）or the DOWN and UP button to select the (Show 17) , （Show 19）.
- Page 12 Display Inversion Press the MENU button up to when the is showing on the display. Pressing the ENTER （normal） button and the display will blink. Use the DOWN and UP button to select the （inverse） ，Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after one minute.
- Page 13 the previous functions without any change press the MENU button。 （flash mode） is selected, press the ENTER button to confirm, then use the DOWN 2. If and UP button to adjust the type of the rotation(1…..9). Once select, press the ENTER button to store or automatically return to the main functions without any change after one minute.
-
Page 14: How To Control The Unit
Temperature Test Press the MENU button up to when the is blinking on the display. Pressing ENTER button and the display will show the temperature of the unit. To go back to the functions press the MENU button again. Fixture Hours Press the MENU button up to when the is blinking on the display. - Page 15 blinking or storing automatically 8 seconds later. To go back to the functions without any change press the MENU button again. Please refer to the following diagram to address your DMX512 channel for the first 4 units：...
-
Page 16: Dmx 512 Configuration
6.2 DMX 512 Configuration 4/5/7 Channels Mode:... -
Page 17: Dmx512 Connections
7. DMX512 CONNECTIONS 1. If you use a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the next unit. -
Page 18: Troubleshooting
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used. 8. TROUBLESHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: Problem Possible Cause... -
Page 19: Fixture Cleaning And Maintance
9. FIXTURE CLEANING AND MAINTANCE The cleaning of outside glass must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ... -
Page 20: Declaration Of Conformity
Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
