Screw Listing
mm
Where used:
1
One screw that secures the optical drive to the computer (documented in
Section 5.9)
2
Four screws that secure the keyboard to the computer (documented in
Section 5.11)
3
Two screws that secure the display assembly to the computer (documented
in Section 5.14)

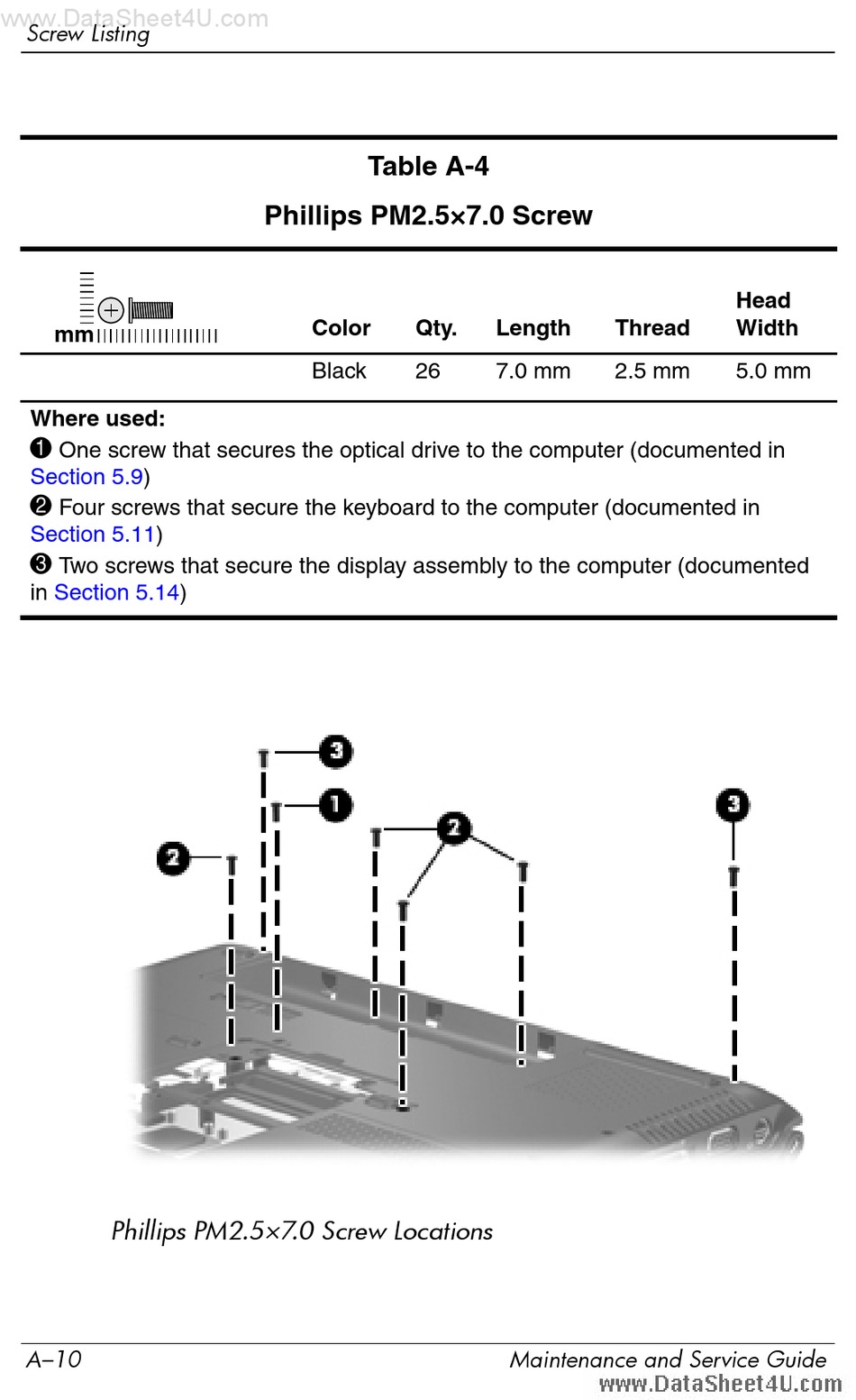

Phillips PM2.5×7.0 Screw Locations
A–10
Table A-4
Phillips PM2.5×7.0 Screw
Color Qty.
Black 26
Length Thread
7.0 mm 2.5 mm
Maintenance and Service Guide
Head
Width
5.0 mm
