2. Disconnect the Bluetooth module cable 1 from the
system board.
3. Remove the two Phillips PM2.0×3.0 screws 2 that secure the
Bluetooth module to the system board.
4. Remove the Bluetooth module 3.

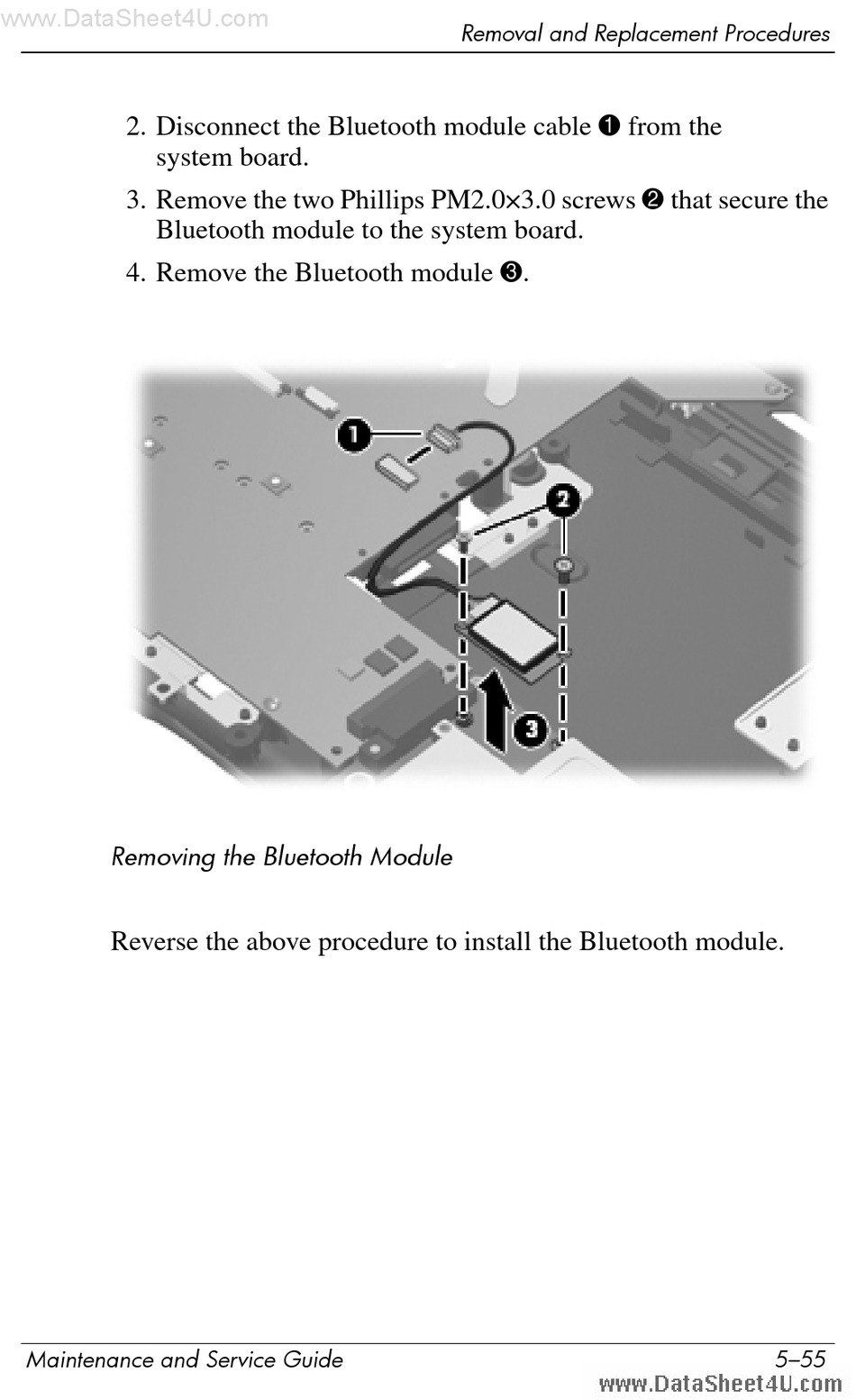

Removing the Bluetooth Module
Reverse the above procedure to install the Bluetooth module.
Maintenance and Service Guide
Removal and Replacement Procedures
5–55
