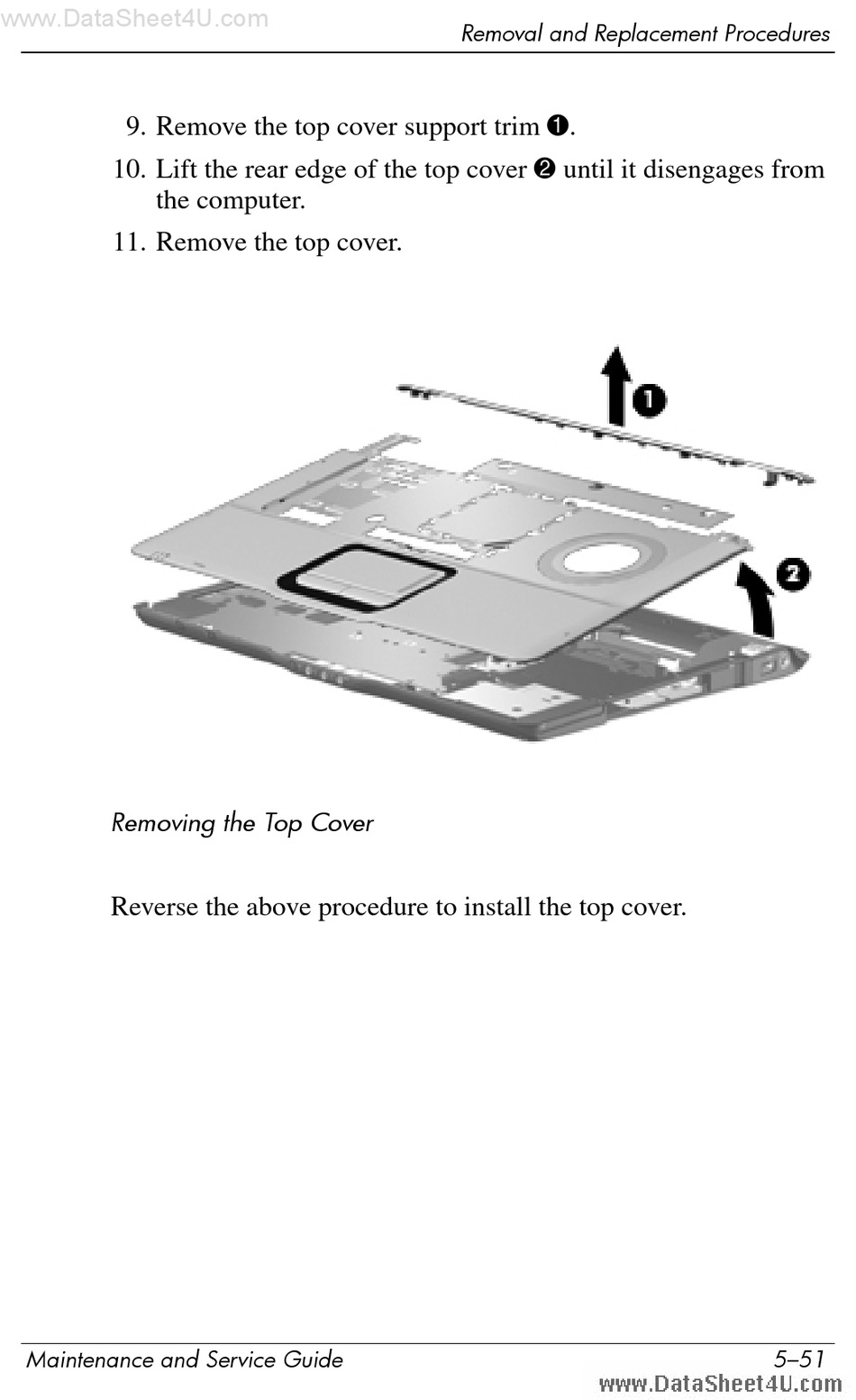

9. Remove the top cover support trim 1.
10. Lift the rear edge of the top cover 2 until it disengages from
the computer.
11. Remove the top cover.
Removing the Top Cover
Reverse the above procedure to install the top cover.
Maintenance and Service Guide
Removal and Replacement Procedures
5–51
