Removal and Replacement Procedures

Display bezels

For use only with full-featured computer models with camera
sold at Best Buy (includes camera and microphone openings)
For use with full-featured computer models with camera
(includes camera and microphone openings)
For use with full-featured computer models without camera
(includes microphone openings)
For use with defeatured computer models

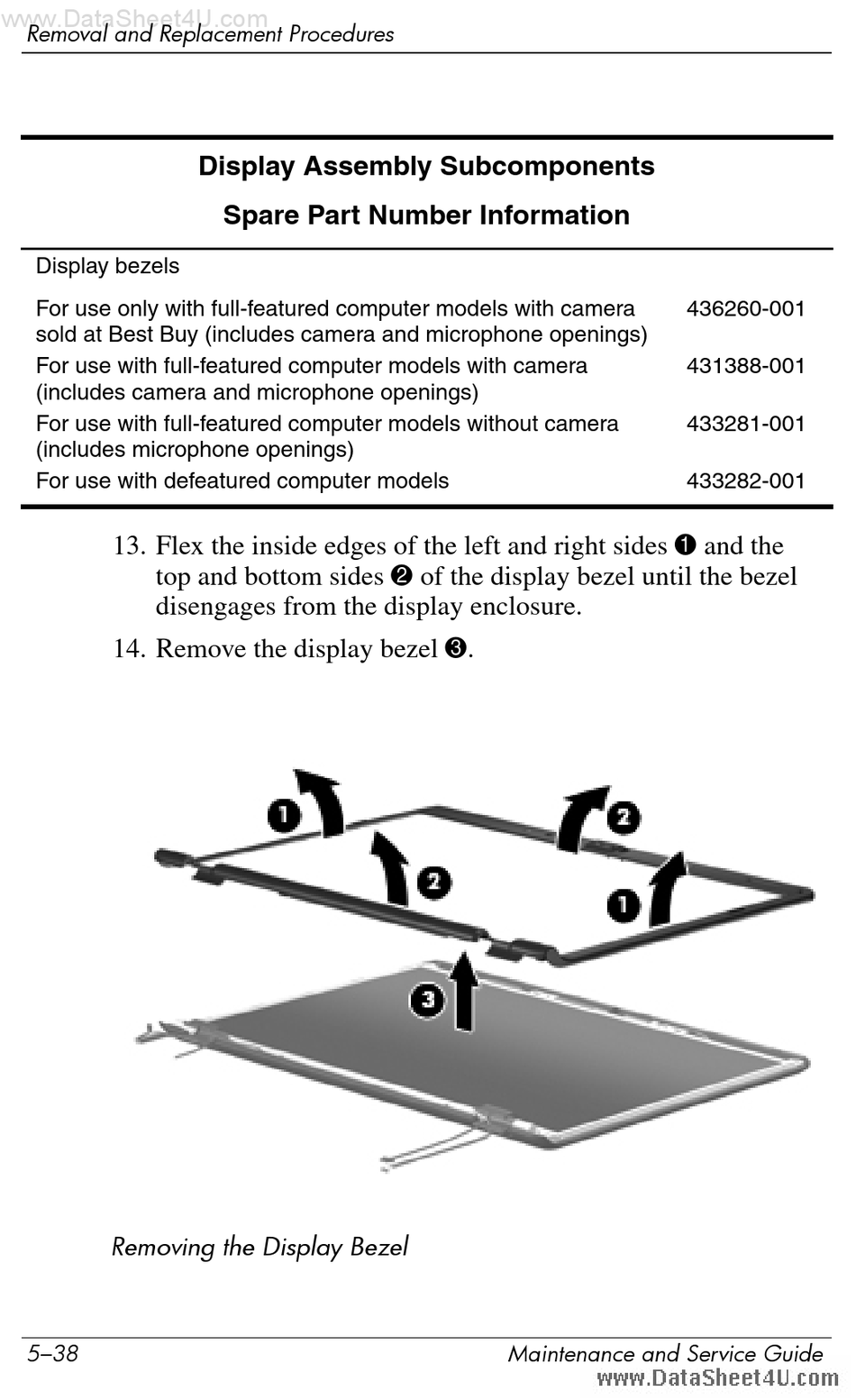

13. Flex the inside edges of the left and right sides 1 and the
top and bottom sides 2 of the display bezel until the bezel
disengages from the display enclosure.
14. Remove the display bezel 3.
Removing the Display Bezel
5–38

Display Assembly Subcomponents

Spare Part Number Information
Maintenance and Service Guide
436260-001
431388-001
433281-001
433282-001
