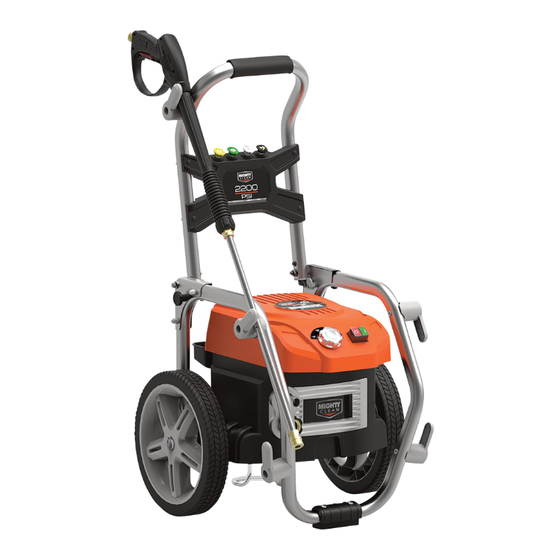

- Page 1 Model MC2200BL OPERATOR'S MAnuAL ELECTRiC HiGH-PRESSuRE WASHER Before operating this product, please read this manual thoroughly and retain it for future reference. SuMEC nORTH AMERiCA 3939 Royal Drive nW unit #234 Kennesaw, GA 30144 MC2200BL.indd 1 15-4-30 2:26...
- Page 2 DO nOT RETuRn PRODuCT TO PLACE OF PuRCHASE. iF YOu HAVE AnY QuESTiOnS, CALL OuR TOLL-FREE HOTLinE. (866) 902-9690 ForceToolsuSA.com MC2200BL.indd 2 15-4-30 2:26...
-
Page 3: Table Of Contents
MC2200BL Operator's Manual TABLE OF COnTEnTS Description of Product Parts………………………………………………………………………………..02 Technical Specifications……………………………………………………………………………………..04 Intended Use……………………………………..…………………………………………………………..04 Important Safety Instructions………………………………………………………………………………..05 Installation Instructions………………………………………………………………………………………...10 Operating Instructions………………………………………………………………………………………..15 Cleaning and Maintenance…………………………………………………………………………………..19 Moving and Storage Instructions…………………………………………………………………....20 Disposal..…………………………………………………………………………………………………..21 Troubleshooting……..………………………………………………………………………………………...21 Warranty………………………………………………………………………………………………....24 MC2200BL.indd 1 15-4-30 2:26... -
Page 4: Description Of Product Parts
18. Spray gun high-pressure water inlet 19. Trigger switch 20. Safety lock Fig.2 21. Trigger handle 22. 0° nozzle 23. 15° nozzle 24. 40° nozzle 25. Soap nozzle 26. Turbo nozzle 27. Nozzle cleaning needle Fig.3 MC2200BL.indd 2 15-4-30 2:26... - Page 5 WArNiNG: If any parts are damaged or missing, do not operate this tool until the missing parts are replaced. Failure to heed this warning could result in serious personal injury. NOte! Always recycle the packaging in accordance with local recycling schemes. Fig.4 MC2200BL.indd 3 15-4-30 2:26...
-
Page 6: Technical Specifications
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the pressure washer is used in commercial, trade or industrial businesses or for equivalent purposes. MC2200BL.indd 4 15-4-30 2:26... -
Page 7: Important Safety Instructions
2. To reduce the risk of injury, close supervision is necessary when a product is used near children. 3. Know how to stop the pressure washer and release pressure quickly. Be thoroughly familiar with the controls. MC2200BL.indd 5 15-4-30 2:26... - Page 8 20. Always turn water supply "ON" before turning pressure washer "ON" unless draining for storage. Running pump dry causes serious damage. 21. Always hold gun and wand firmly when starting and operating the pressure MC2200BL.indd 6 15-4-30 2:26...
-
Page 9: Ground Fault Circuit Interrupter Protection
Extension cords are not recommended unless these are plugged into a ground fault circuit interrupter (GFCI) found in circuit boxes or protected receptacles. 1. Use only extension cords that are intended for outdoor use. These extension MC2200BL.indd 7 15-4-30 2:26... - Page 10 OF iNJUry dO NOt direCt disChArGe streAM At selF Or Other PersONs. 1. High-Pressure jet can be dangerous if misused. 2. The jet must not be directed at persons, animals, electrical devices, or the unit itself. MC2200BL.indd 8 15-4-30 2:26...
- Page 11 This pressure washer has been designed for use with detergents that are specifically approved for pressure washer use. The use of other cleaning detergents may affect the operation of the pressure washer and void the warranty. MC2200BL.indd 9 15-4-30 2:26...
-
Page 12: Installation Instructions
Make sure the handle was fixed securely before each using. To fold the handle: Pull the locking/releasing pin outward on the right side of the pressure washer, and turn the handle downward to fold the handle. MC2200BL.indd 10 15-4-30 2:26... - Page 13 Storage position of turbo nozzle as shown in Fig.10. Connect garden hose and inlet adapter As shown in Fig. 11 Attach a hose with a quick-connect coupling (not supplied) to water inlet on the high-pressure washer. MC2200BL.indd 11 15-4-30 2:26...
- Page 14 In this case, use an appropriate back-flow prevention device conforming to the requirements of the American Society of Sanitary Engineers. 1. Connect the water supply hose to water supply. 2. Open the water inlet valve. Fig.12 Fig.13 MC2200BL.indd 12 15-4-30 2:26...
- Page 15 T5: Turbo: To remove particularly stubborn dirt Fig.14 ADJuSTMEnT Adjusting the pressure As shown in Fig. 15 This pressure washer is equipped with a pressure regulator. It has four settings. The approximate value for each setting is shown below: Fig.15 MC2200BL.indd 13 15-4-30 2:26...
- Page 16 Fig.16-1 Fig.16-2 To remove the power cord/hose Rremove the power In order to address it clearly. here take one holder as an cord/hose example .and rotate it clockwise. MC2200BL.indd 14 15-4-30 2:26...
-
Page 17: Operating Instructions
As shown in Fig. 18 & 19 You should maintain the correct operating position every time you start the pressure washer by placing one hand on the trigger handle handle and the other on the wand. MC2200BL.indd 15 15-4-30 2:26... - Page 18 2. To switch the pressure washer off, set the On/Off switch to OFF. 3. Close the water inlet valve. CAUtiON ! After releasing the trigger for 10 seconds, the motor can be completely stopped, due to this pressure washer is soft stop function which controlled by software. MC2200BL.indd 16 15-4-30 2:26...
- Page 19 Hold the handheld spray gun and the jet tube firmly with both hands. Be aware of the recoil when switching on the high-pressure jet. Unlock the safety button and press the trigger on the handheld spray gun. MC2200BL.indd 17 15-4-30 2:26...
- Page 20 4. When you have finished using the detergent injection system, fill detergent bottle with clean water. Siphon water by using soap tip for one minute, so that all detergent is flushed through system. Remove detergent bottle, and rinse it thoroughly. Fig.22 MC2200BL.indd 18 15-4-30 2:26...
-
Page 21: Cleaning And Maintenance
3. Place water inlet filter back in position to prevent any foreign matter from entering the pump. Clean the spray nozzles Clean the high-pressure spray nozzles. As shown in Fig. 24 Maintenance The pressure washer has no user serviceable parts. Fig.23 Fig.24 MC2200BL.indd 19 15-4-30 2:26... -
Page 22: Moving And Storage Instructions
The storage method is the same as above mentioned. In addition, store the pressure washer by using the original package as much as you can. Moving If shipping, use the original packaging whenever possible. Fig.25 Fig.26 Tidy the power cord MC2200BL.indd 20 15-4-30 2:26... -
Page 23: Disposal
Use only genuine spare parts. Only these spare parts are designed and suitable for the pressure washer. The use of other spare parts not only voids the warranty, but can also endanger yourself and your environment. MC2200BL.indd 21 15-4-30 2:26... - Page 24 Straighten out kinked water supply hoses Inadequate water supply Check the water supply Power cord is damaged Consult customer service The high-pressure washer Internal loose electrical Consult customer service operates intermittently connection On/Off switch defective Consult customer service MC2200BL.indd 22 15-4-30 2:26...
- Page 25 Re-attach the high-pressure hose. Spray tips partly blocked Clean spray nozzles Detergent too dense Dilute with water No detergent taken in Deposits or restriction in Flush with clean water and detergent circuit eliminate any restrictions MC2200BL.indd 23 15-4-30 2:26...
-
Page 26: Warranty
Might Clean retailers. (2) two-year Warranty – Pump and Motor The MC2200BL has a 2-Year Limited Warranty from the date of purchase against manufacturer defects for residential use only. Commercial use voids the warranty. This warranty does not cover accidental damage, unreasonable use, normal wear and tear, neglect or non-compliance with the Operating, Safety and Maintenance Instructions. - Page 27 2. Send in proof-of-purchase and serial number (if applicable) to confirm warranty coverage. 3. If service or a warranty evaluation is requested, Mighty Clean USA will provide an RGA number that should be used in all communications with Might Clean USA and is required to be indicated on the product itself and on the outside of the box.
