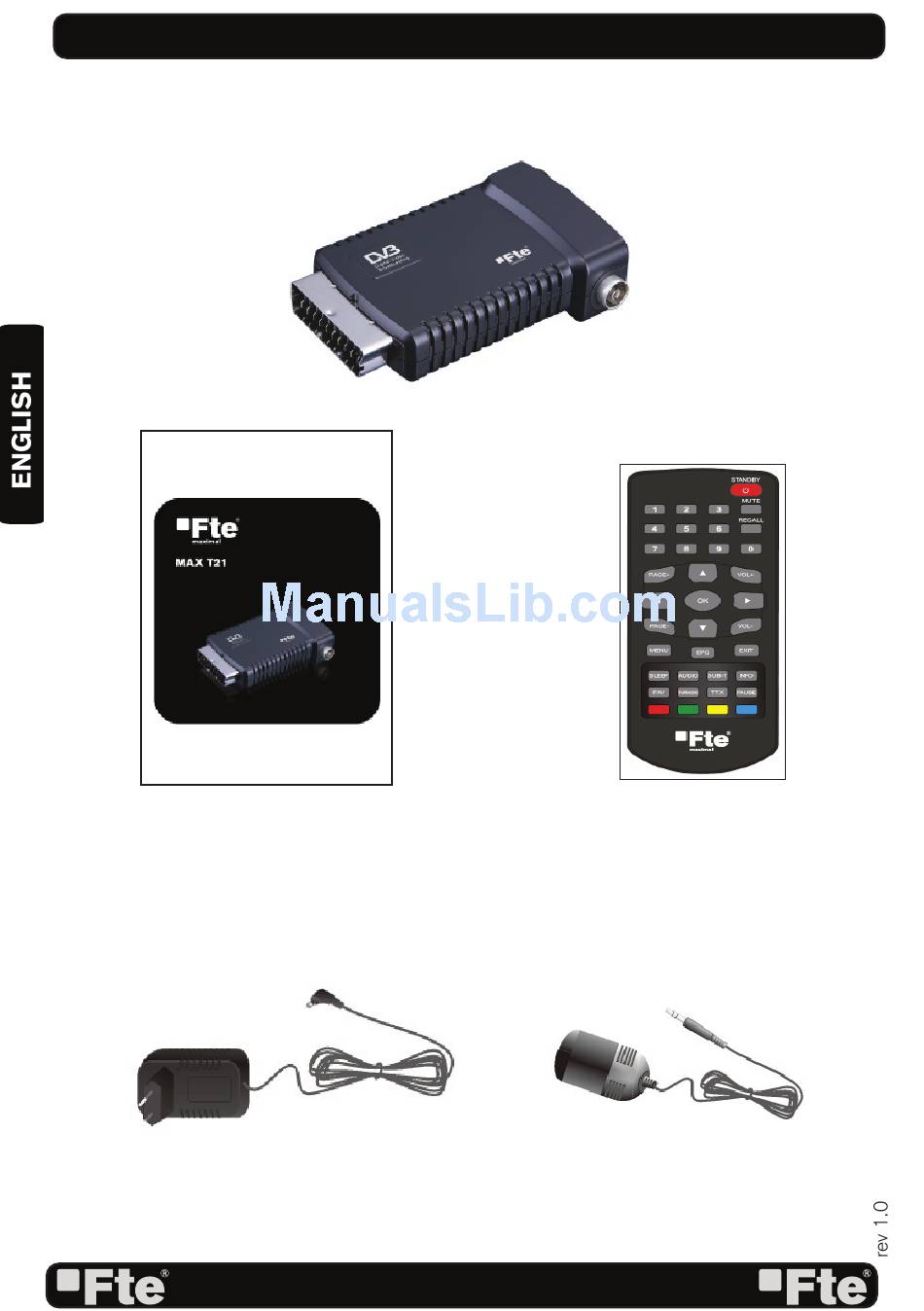

  • Page 1 CONTENT RECEIVER MANUAL REMOTE CONTROL POWER SUPPLY INFRARED SENSOR PAG. 2...

  • Page 2: Safety Precaution

    SAFETY PRECAUTION Warning: The lightning flash with The exclamation point arrowhead symbol, within To reduce the risk of electric shock, within equilateral don’t open the cabinet. Refer servicing an equilateral triangle, is triangle intended to qualified personnel only. intended to alert the user to alert the user to to “dangerous voltage”...
  • Page 3 QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE Follow next steps for the correct installation of this receiver. STEP 1: CONNECTIONS The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared sensor of the receiver during operation. If the sensor has been covered or there is a large object between the remote control and the sensor, the sensor will not respond.
  • Page 4 QUICK INSTALLATION GUIDE STEP 2: BASIC CONFIGURATION OF THE RECEIVER The receiver includes an installation assistant that will help you to setup the different parameters. When the receiver is turned on at first time (using the button at the rear panel of the receiver), the next menu is shown on the TV: In order to move through the different options of this menu, please use the keysof the remote control.
  • Page 5 QUICK INSTALLATION GUIDE STEP 3: TIME CONFIGURATION It is recommended to setup the clock before starting to enjoy the receiver, because correct time maybe is required by some applications. Please complete following options: Press the [Menu] key of the remote control for appearing the main menu.

  • Page 6: Delete All

    QUICK INSTALLATION GUIDE CHANNEL TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Delete All Favourites: This option deletes all the favourite lists created. Delete All Channels: This option deletes all TV and Radio stored channels. Group Rename: It allows changing the name of the favourite groups.
  • Page 7 QUICK INSTALLATION GUIDE SETUP OSD Language: This option allows selecting different menu and options languages. TV System: This option allows choosing the video Standard and other parameters of the screen. Region and Time: In this option, the time of the receiver and user region or country can be configured.

  • Page 8: Table Of Contents

    INDEX 1. Remote control & panel description 1.1.Front panel description.................11 1.2.Rear panel description.................11 1.3.Remote control description................12 2. Hotkey 2.1.Standby......................13 2.2.CH+/CH-.......................13 2.3.Vol+/Vol-......................13 2.4.Number......................13 2.5.TV/Radio......................13 2.6.Channel List........................13 2.7.Audio......................13 2.8.EPG.......................13 2.9. Subtitles......................14 2.10.Exit......................14 2.11.Menu......................14 2.12.Mute......................14 2.13.Recall......................14 2.14.Information....................14 2.15.Pup+/Pdown-....................14 2.16.TTX......................14 2.17.Fav......................14 3. Channel 3.TV Channel List....................15 3.1.1.TV Channel list edit................15 3.1.1.1.Favorite................15 3.1.1.2.
  • Page 9 INDEX 4. Installation 4 . 1 . A u t o s c a n ................1 8 4 .
  • Page 10 CONNEXION & REMOTE CONTROL DESCRIPTION 1. CONNEXION & REMOTE CONTROL DESCRIPTION 1.1. CONNEXION DESCRIPTION 1. TV SCART: Output SCART for the connection to a TV set. 2. ANT IN:Terr. input of the digital tuner. 3. IN 5 VDC: 5 VDC connection (power supply). 4.

  • Page 11: Remote Control Description

    CONNEXION & REMOTE CONTROL DESCRIPTION 1. POWER: Switches receiver ON or in stand-by-mode. 2. MUTE: Switches audio on and off. 3. RECALL: Watch the last viewed channel. 4. NUMERIC KEYS: For direct typing values and names. 5. Page+/Page-: Moves cursor in block steps 6.

  • Page 12: Standby

    BASIC OPERATIONS 2. HOTKEY 2.1 STANDBY 1.Press [Power] button to switch from TV mode to Standby mode 2.In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. 3.To switch off the STB complete press the main power button.

  • Page 13: Subtitles

    BASIC OPERATIONS 2.9. SUBTITLES In TV mode, press [Sub] button for activating / deactivating the channel subtitles, depending on the provider information (OSD 4). 2.10 EXIT [Exit] key can exit current menu. 2.11 MENU [Menu] key can enter the menu or exit current menu. OSD 5 2.12 MUTE 1.Press the [Mute] button to mute the sound.

  • Page 14: Tv Channel List

    CHANNEL 3.CHANNEL Press [Menu] in the TV mode to enter the main menu (OSD 1. Press [ ] to select the Channel item. 2. Press [OK] to enter the selected item. In the Channel menu (OSD 7): OSD 6 3. Press [ ] to select the wanted menu item.

  • Page 15: Skip

    CHANNEL After save and exit “TV Channel List Edit” menu, STB will request you to input the password while you want to watch the locked channel. (OSD 11) 3.1.1.3 SKIP In “TV Channel List Edit” menu, press number key [3] can make a “skip mark”...

  • Page 16: Move

    CHANNEL 3.1.4 MOVE 1. Press number key[4] ,there will show a “moving mark” in the right side of the selected channel like above (OSD 16) 2. You can move the selected channel to the position that you want to place by press [ ] key.
  • Page 17 INSTALLATION 4.INSTALLATION Press [Menu] in the TV mode to enter the main menu (OSD 22). 1. Press [ ] to select the Installation item. 2. Press [OK] to enter the selected item. In the Installation menu (OSD 23): 3. Press [ ] to select the wanted menu item.
  • Page 18 INSTALLATION 4.3 TUNER SETTING When you enter to “Tuner setting” menu, there will display the screen like below (OS28): In Aerial Adjustment mode: Tuner Power: On / Off OSD 28 PAG. 19...

  • Page 19: Osd Language

    SYSTEM SETUP 5. SYSTEM SETUP Press [Menu] in the TV mode to enter the main menu (OSD 29). 1. Press [ ] to select the System Setup item. 2. Press [OK] to enter the selected item. In the System Setup menu (OSD 30): 3.

  • Page 20: System Setup

    SYSTEM SETUP You can press [ t] keys to switch “Off / User Define / By Region”. •The “GMT Offset” item is valid only when the setting of “GMT Usage” is “Uesr Define”. You can press [ ] keys to switch “GMT Offset” value, and the range is “-12:00 ~ +12:00”, increase each half hour progressively.

  • Page 21: Parental Lock

    SYSTEM SETUP 5.5 OSD SETTING When you input to “OSD Setting” menu, you will see a screen like below (OSD 39): 1. Subtitle Display: You can press [ ] key to select “On” or “Off”. If the current channel has subtitle information, it will be showed up while this function is “On”.

  • Page 22: Information

    TOOLS 6.TOOLS Press [Menu] in the TV mode to enter the main menu (OSD 41). 1. Press [ ] to select the Tools item. 2. Press [OK] to enter the selected item. In the Tools menu (OSD 42): 3. Press [ ] to select the wanted menu item.

  • Page 23: Load Factory Default

    TOOLS •[Exit] — Quit game and draw back to “Game” menu. 3. Othello • Moving highlight to “Setup” and press [Left/Right] keys to select the game level (degree of difficulty). • Moving highlight to “Start” and press [OK] key to start the game.

  • Page 24: Technical Specification

    TECHNICAL SPECIFICATIONS Video Decoding MPEG2 ISO/IEC 13818-2 MP@ML Bit rate Max 15 Mbps Output PAL/NTSC Aspect ratio 4:3, 16:9 Active pixel 720x480 @ 30fps; 720x576 @25fps Output connector Scart Audio Decoding MPEG1,MPEG2 ISO/IEC 13818-3 LAYER I&II Sampling rate 32 /44,1/ 48 Khz Input Signal Demodulation COFDM 2k, 8k...
  • Page 25 PART OF THE DECLARATION OF CONFORMITY CE “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT MAX T21 IS IN CONFORMITY WITH FOLLOWING DIRECTIVES LOW VOLTAGE DIRECTIVE 2006/95/EC EMC DIRECTIVE 2004/108/EC” PAG. 26...
