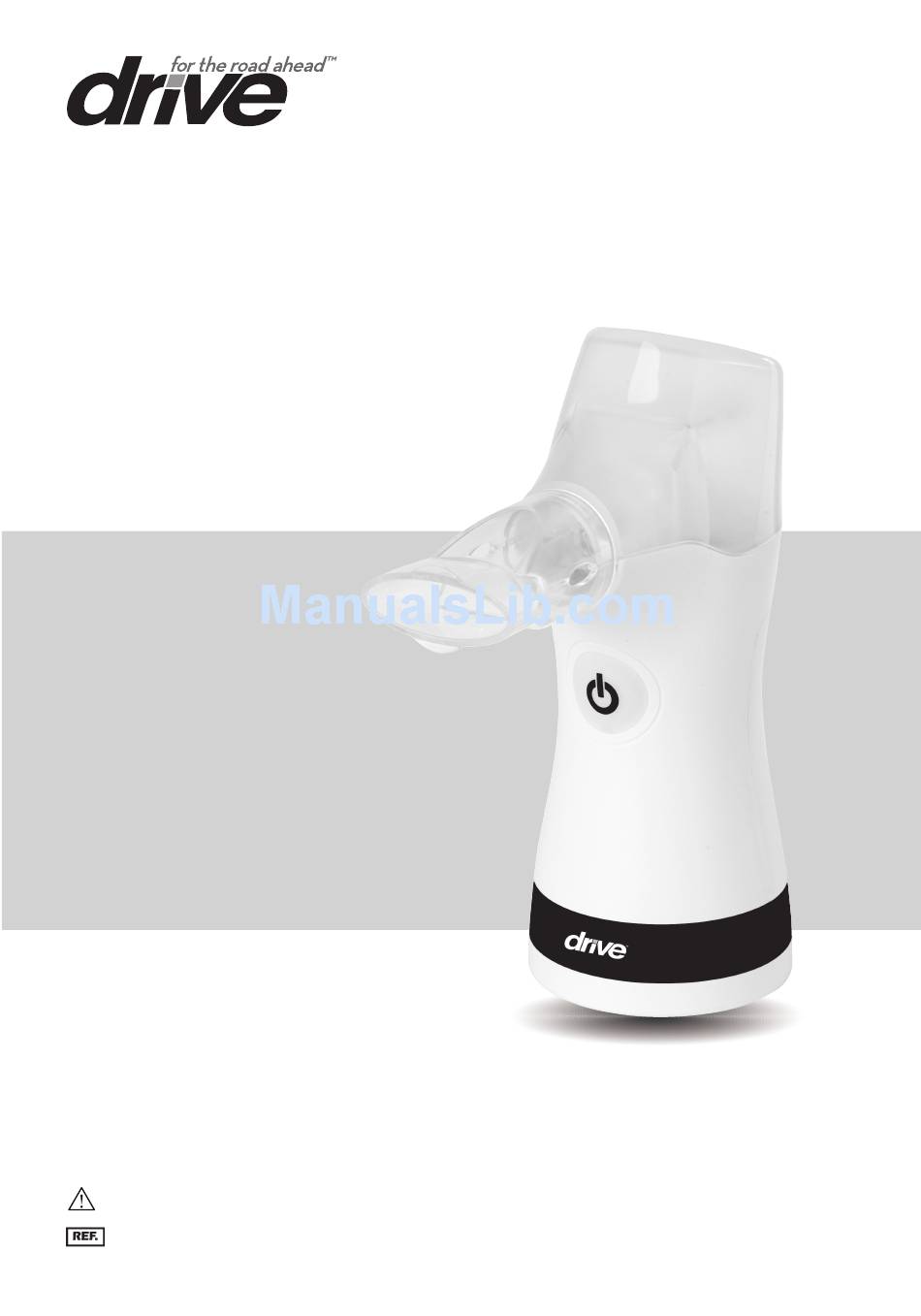

- Page 1 Voyager ™ Pro Nebulizer CAUTION: Federal (US) Law restricts this device to sale by or on the order of a physician. 18018...
-
Page 3: Table Of Contents
Getting acquainted Safety information and warnings Important information on the device ．Accessories ．Protecting against leaks ．Automatic switch-off Know Your Voyager Pro Nebulizer ™ Initial use ．Before using the device for the first time ．Assembly ．Battery Replacement ．Operating the device with the switching power supply ．Preparing the nebulizer ．Filling the nebulizer ．Closing the nebulizer... -
Page 4: Getting Acquainted
Getting acquainted Area of application The Voyager ™ Pro nebulizer is a vibrating mesh nebulizer for treating the upper and lower respiratory tract. The nebulization and inhalation of medication prescribed or recommended by a doctor can prevent against diseases of the respiratory tract, treat the side effects of these disorders and accelerate healing. - Page 5 ™ Pro Nebulizer must only be operated along with the appropriate Drive Medical accessories. The use of other accessories can impair therapeutic efficiency and may damage the device. ．Remove the batteries from the device if you will not be using it for an extended period.
- Page 6 Important ．Power loss, sudden faults or other unfavorable conditions may render the device unusable. You are therefore recommended to keep a spare device or replacement medicine (as agreed with the doctor). ．The device must be stored away from sources of heat. ．Do not use the device in a room in which a spray has previously been used.
- Page 7 General notes Important ．Use the device only: ．On humans ．For its intended purpose (aerosol inhalation) and in the manner described in these instructions for use. ．Any improper use can be dangerous! ．In acute emergencies, first aid takes priority. ．In addition to medicines, use only a saline solution. ．This device is not intended for commercial use, but only for individual use.
- Page 8 Notes on handling batteries ．Keep batteries out of the reach of children. Children can put batteries in their mouths and swallow them. This can cause severe harm to their health. In this case, consult a physician immediately! ．Normal batteries must not be recharged, heated or thrown into open flame (risk of explosion).
-
Page 9: Important Information On The Device
Important information on the device Accessories The safe functioning of the device can only be guaranteed if the accessories recommended by the manufacturer are used. Caution Protecting against leaks When filling the medicine container with medicine, ensure that you do not exceed the maximum mark (8 ml). - Page 10 Know Your Voyager ™ Pro Nebulizer Overview 1. Cover 2. Medicine container 3. Mesh Nebulizer 4. On/Off button Blue : device ready Yellow : change batteries 5. Battery compartment 6. Mini USB port Overview of accessories 7. Adult mask 8. Child mask 9.
-
Page 11: Initial Use
Initial use Before using the device for the first time Note: ．Before first use, the nebulizer and the accessories should be cleaned and disinfected. For more information, see page 15. Assembly Remove the device from the packaging. ．If not already fitted, fit the mesh nebulizer onto the neck of the container, and lock the neck in place by turning it counterclockwise until the gold-colored contact electrodes are facing down wards. -
Page 12: Battery Replacement
Battery Replacement 1. Turn the device upside down, and 2. Take off the bottom cover, and take follow the sign on the bottom cover off the old batteries, and replace to “Open” the bottom cover. four new AAA batteries. 3. Align the three lines with the groove 4. - Page 13 Operating the device with the AC Adapter Connect the USB cable and AC Adapter, insert the USB cable into mini USB port. Plug the AC Adapter into an appropriate outlet. ．If not already fitted, fit the mesh nebulizer onto the neck of the container, and lock the neck in place by turning it clockwise until the gold-colored contact electrodes are facing downwards.
-
Page 14: Cleaning And Disinfection
Operation Preparing the nebulizer ．For reasons of hygiene, it is imperative that the nebulizer and accompanying accessories are cleaned and disinfected after every use. If the therapy requires that different medicines be inhaled one after another, ensure that the nebulizer is rinsed and cleaned after every application. For details, see Cleaning and Disinfection on page 15. -
Page 15: Fitting Accessories
Fitting accessories ．When the required accessories (mouthpiece, adult mask or child mask) have been attached to the device, join the device firmly to the assembled medicine container. ．The adult mask and child mask must be fitted using the connecting piece. ．Now place the device to your mouth and close your lips firmly around the mouthpiece. - Page 16 Important Essential oils, cough medicines, solutions designed for gargling, and drops for application to the skin or for use in steam baths are unsuitable for inhalation using a nebulizer. These substances are often highly viscous and can impair the correct function of the device and hence affect the effectiveness of its application in the long term.
-
Page 17: Warning
Cleaning and disinfection Warning Observe the following hygiene instructions in order to avoid any health risks. ．The nebulizer and accessories are intended for multiple use. Please note that cleaning requirements differ according to the different application areas: Note: ．Do not clean the mesh or accessories with brushes or similar, as this may cause irreparable damage, which means that the intended result of the treatment is no longer guaranteed. -
Page 18: Cleaning
Important Never hold the complete device or nebulizer unit to clean under running water. When cleaning, ensure that all residues are removed and dry all parts carefully. Never use any substances that may be poisonous when in contact with the skin or mucous membranes, or when swallowed or inhaled. -
Page 19: Cleaning
Disinfection ．First clean the nebulizer and the accessories as described in the cleaning section. You can then contiune with disinfection. ．Pour 8 ml ethyl alcohol (75% v/v) into the medicine container. Close the container. Leave the alcohol in the container for at least 10 minutes. ．For better disinfection, shake the device gently from time to time. - Page 20 ．Remove the mesh nebulizer from the medicine container by turning it clockwise and drawing it out. First Second ．The nebulizer is later reassembled in the reverse order. ．Finally, clean all the parts again under running water (except for the mesh nebulizer).
-
Page 21: Cleaning
Drying ．Place the individual components on a dry, clean and absorbent surface and allow to dry completely (for at least 2 hour). Note: Ensure that all parts are thoroughly dried after cleaning, otherwise there is an increased risk of bacterial growth. Once all components are fully dried, reassemble the nebulizer and place the components in a dry, sealed container. - Page 22 Drive Medical recommends to change the mesh nebulizer after approximately 1 year. Remove the mesh nebulizer and install a new one as described on page 09 (section “Assembly”). For buying new mesh nebulizer, please contact your Drive Medical equipment provider.
-
Page 23: Troubleshooting
Troubleshooting Problem/Question Possible Cause/Remedy The nebulizer produces 1. Too little medicine in the nebulizer. little or no aerosol 2. The nebulizer is not held in an upright position. 3. The medicine is unsuitable for spraying (e.g. too thick, highly viscous). The medicine solution should be specified by your doctor. - Page 24 Problem/Question Possible Cause/Remedy What special steps 1. In babies, the mask should cover the mouth and nose should be taken for to guarantee effective inhalation. babies and children? 2. In children, the mask should also cover the mouth and nose. It is not suitable to use the nebulizer while sleeping or lying on the bed because the medicine will not reach the lungs sufficiently.
-
Page 25: Specifications
Specifications Model 18018 Particle Size 1.0 – 5.0 µm Technology Vibrating Mesh Medication Container 8 ml maximum Capacity Residual Volume Approx. 0.1ml Battery 1.5V (AAA batteries ×4) Electrical Adapter 100V-240V / 50~60Hz / 0.15A Power Consumption Approx. 1.5W Dimensions (mm) 2.75”... -
Page 26: Manufacture Date
= Type B Consult Instructions For Use Caution Manufactured for: Made in Taiwan Drive Medical Design & Manufacturing 99 Seaview Blvd. Manufactured for: Drive Medical Design & Manufacturing Port Washington, NY 11050 99 Seaview Blvd. Port Washington, NY 11050 Made in Taiwan SN Coding principles：... -
Page 27: Warranty Information
In no event shall Drive Medical or its subsidiaries by liable for loss of use or profit or other collat- eral, special or consequential damages. - Page 29 www.drivemedical.com...
