Page 1: Lqsc48 - Full Hd 1080P Waterproof Sports Camera User Manual

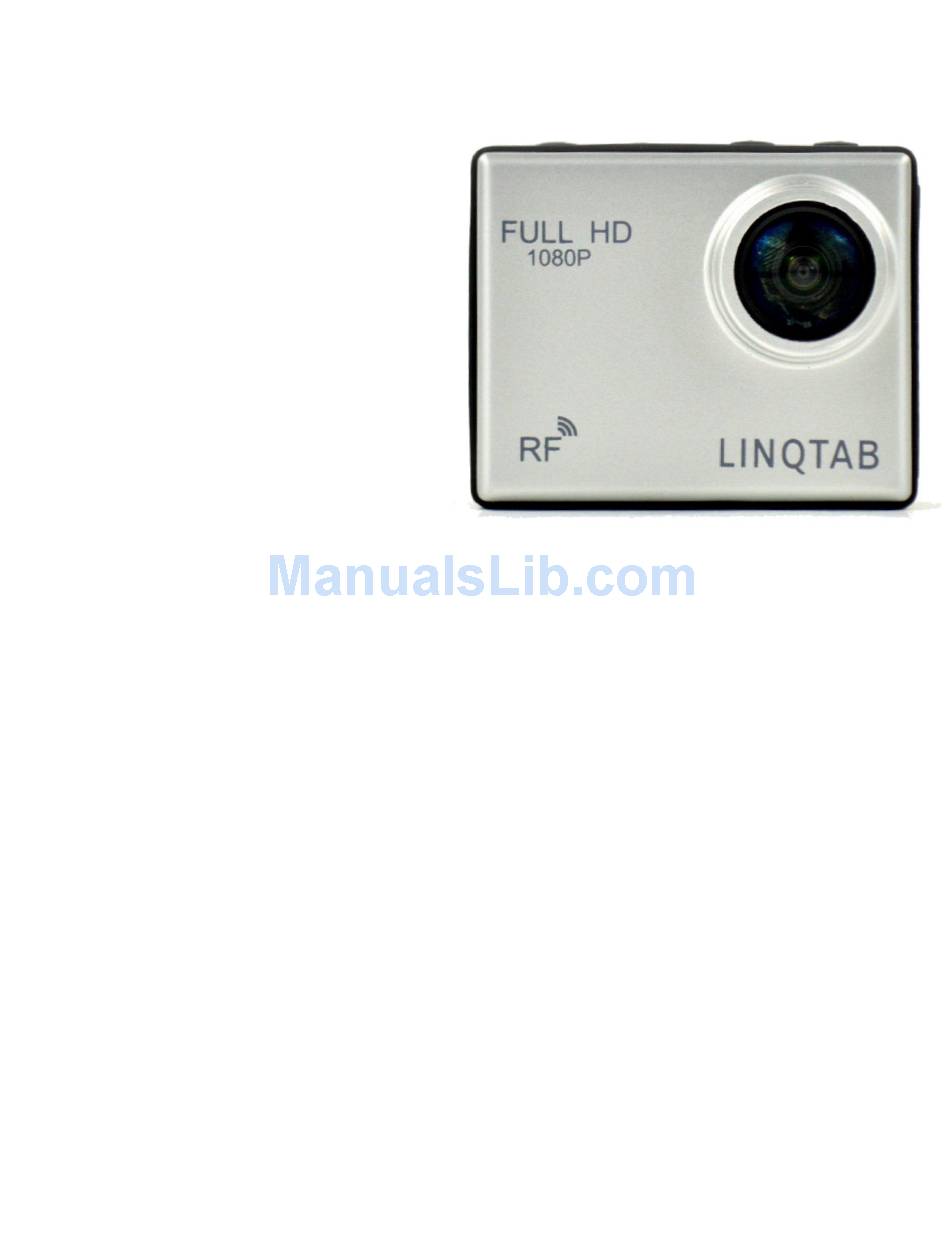

LinQTab LQSC48 LQSC48 – Full HD 1080p Waterproof Sports Camera User Manual Please read this manual before operating your device, and keep it for future reference. -
Page 2: Copyright
Copyright © LinQTab is a registered trademark of eXiom Technologies and its related entities. The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. -
Page 3: Table Of Contents
Table of Contents LQSC48 – Full HD 1080p Waterproof Sports Camera User Manual................1 Copyright ................................2 Table of Contents ..............................3 General notices for use ............................4 Disclaimer................................4 Box Contents ................................4 Getting Started ................................5 Product Specifications ............................5 Features................................. -
Page 4: General Notices For Use
The manufacturer accepts no liability for the information offered in this document. Box Contents 1 x LQSC48 Unit 1 x Remote Control 1 x Battery 1 x USB cable with Power Adapter... -
Page 5: Getting Started
Getting Started Product Specifications LQSC48 Full HD 1080p Digital Sports Camera Model No. LQSC48 - Full HD 1080p Waterproof Digital Sports Camera Image Sensor 1/3 inch CMOS View Angle 160 degrees(standard) Pixel 12 mega pixels Digital Zoom 4× Screen 2 inch TFT LCD Screen Resolution 480×240... -
Page 6: Features
Features Thank you and congratulations on your purchase of the LinQTab Portable Power Bank. Please read this manual through carefully to maximize your enjoyment of the product and to ensure your own safety. Safety Precautions: Do not use the camera in extremely hot, cold, dusty or damp environment. -
Page 7: Camera Overview Diagram
Camera Overview Diagram: 1. LCD 2. Lens 3. Microphone 4. Down 5. Up 6. “M” button – Menu Mode Switch 7. Record button - Record/Stop/Snapshot/0K 8. Indicator 1 9. Screw hole 10. Power button / Indicator 2 11. HDMI connector 12. -
Page 8: Operating Instructions
Operating instructions: Initial Camera Setup Before using the Camera for the first time 1. Open card slot cover. 2. Insert a Micro SD card {up to 64GB) into slot, please format the memory card before using. 3. Put battery into battery slot then tighten the battery cover. 4. -
Page 9: Camera Operations
Camera Operations Turn your camera on / off Action Steps and Indicators Turn On Press power button shortly, – Indicator 1 turns on (Green) – Indicator 2 turns on (Blue) – LCD turns on Now the camera is ready for use in standby mode. -
Page 10: Camera View Screen Icons
Camera View Screen Icons FEATURE SETTINGS AVAILABLE Resolution 1080 Full HD 1920x1080 @ 30fps 720P 1230 X 720 @ 60fps 720P 1230 X 720 @ 30fps WVGA 848 X 480 @ 60fps VGA 640 X 480 @ 60fps Loop Recording Off / 2 minutes / 3 minutes / 5 minutes / 10 minutes / 15 minutes / 20 minutes Exposure... -
Page 11: System Setup
System Setup Under video mode, press Button twice shortly to enter system specifications setup. SYSTEM SETTING SETTING OPTIONS Date / Time YYYY/MM/DD HH:MM:SS (Can be set by users) Key Tone On / Off Language English / French / Spanish / Portuguese / German / ltalian / Simplified Chinese / Traditional Chinese / Russian / Japanese AV Out... -
Page 12: Photo Setup
Photo Setup Under Photo mode, press the Button shortly to enter snapshot specifications setup. OPTIONAL SETTING SETTING MODES Capture Mode Single / 2S Timer / 5S Timer / 10S Timer Resolution in Megapixels 12M / 10M / 8M / 5M / 3M / 2M HD / 1.3M VGA Sequence On / Off Quality... - Page 13 Playback On The Camera Under photo mode, press and hold the button for2 seconds to enter playback. The Green indicator 1 turns on and the LCD shows icon. Press the and/or buttons to select video / photo you recorded. Press the button shortly to play videos.
- Page 14 On The TV - HDMI Out 0pen the connectors cover, connect the camera and TV with the HDMI cable (optional) provided. Select correct “HDMI" mode on TV, turn on camera then press and hold the button for playback mode, indicator 1 turns green. Press the and/or buttons to select vide or photo you recorded.
-
Page 15: Remote Control
Remote Control 1. On / 0ff button 2. Record / Stop / Snapshot button 3. Indicator Remote Specifications REMOTE SPECIFICATION VALUE Frequency 433 MHz Transmission Range Approx. 5 to 8 Meters Colour Black Dimension 41 x 52 x 14 mm Weight 22 grams Battery... -
Page 16: Charging The Camera
Charging The Camera Connect the camera to your PC, Laptop or USB charger using the USB cable provided. 0nce connected the indicator2 turns on camera then flashes, the unit is charging now. After around 3-4 hours, the indicator stops flashing then turns off. It is full charged. Disconnect the camera from your PC, Laptop or USB charger. -
Page 17: Optional Accessories
Optional Accessories... -
Page 18: Trouble Shooting
Trouble Shooting Q1 : Camera does not record, what can I do? A1 : Make sure your camera has power. Check there is a micro SD card in slot, format it on camera. Change another card for trying, suggest brand ones. Brands like Kingston. Reset the camera (Open the front cover and remove the battery) The remote control is not working, what can I do? Check if there is still power.
