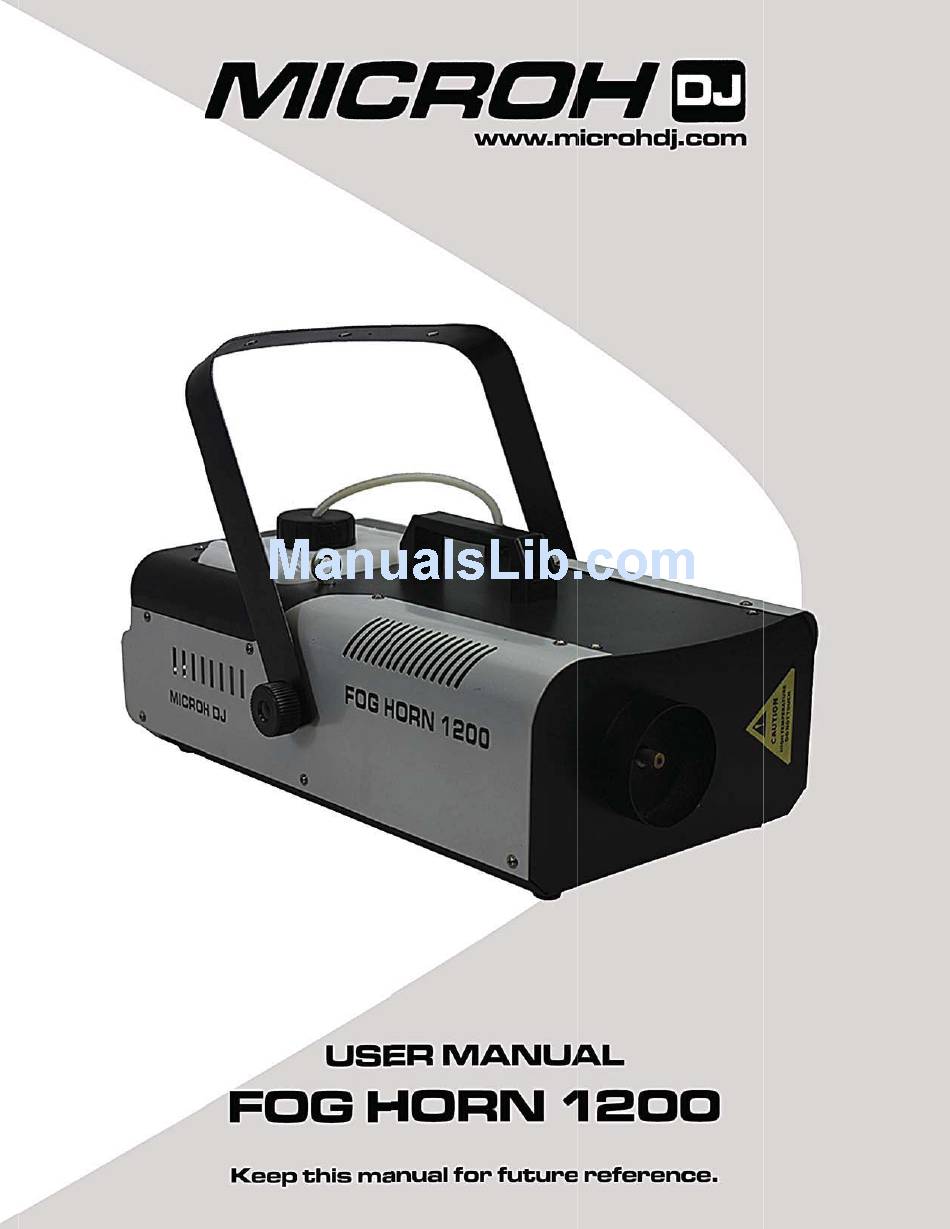

Microh FOG HORN 1200 User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOG HORN 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microh FOG HORN 1200

Summary of Contents for Microh FOG HORN 1200

  • Page 2 1. INTRODUCTION AND UNPACKING Thank you for purchasing the MICROH FOG HORN 1200 fogger. For your own safety and knowledge, please read this manual before installing or operating the device. This manual covers the important information on installation and applications. Please install and operate the fixture according to instructions.
  • Page 3 · In the event of a serious operating problem, stop using this product immediately! · Do not add perfume, alcohol, gasoline, or any other flammables to the fog fluid. · Operates best with MICROH’s ‘MAXIMUM’ water-based High Density Fog Fluid (HDF). 3. MOUNTING AND INSTALLATION Caution: For added protection, mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel.
  • Page 4 Regardless of the rigging option you choose for your MICROH FOG HORN 1200 fogger, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
  • Page 5 REMOTE The FOGHORN1200DMX can be operated manually, or with the included wireless remote control. MANUAL REMOTE - When the GREEN LED lights up the unit is ready for operation. Press the RED button to manually fog WIRELESS REMOTE - Plug the wired receiver into the fog machines 5-pin port labeled “Remote Control” - Press the either of the fog buttons, and the fog machine will output fog for as long as you hold down the button.
  • Page 6 9. TECHNICAL SPECIFICATIONS Heat up Time: 3-5 Mins Tank Capacity: 2.5L Spraying Distance: 15m Output: 10000 cu.ff/min Voltage: 110V AC 60Hz Power: 1400W Weight: 12.3Lbs 10. MAINTENANCE AND CLEANING The following points have to be considered during the inspection: 1) All screws for installing the device or parts of the device must be tightly connected, and must not be corroded.
  • Page 7 There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine MICROH parts from your local dealer. IF YOU SHOULD EXPERIENCE ANY PROBLEMS OR ISSUES PLEASE CONTACT MICROH PROFESSIONAL PRODUCTS BY EMAIL AT info@microhdj.com...
