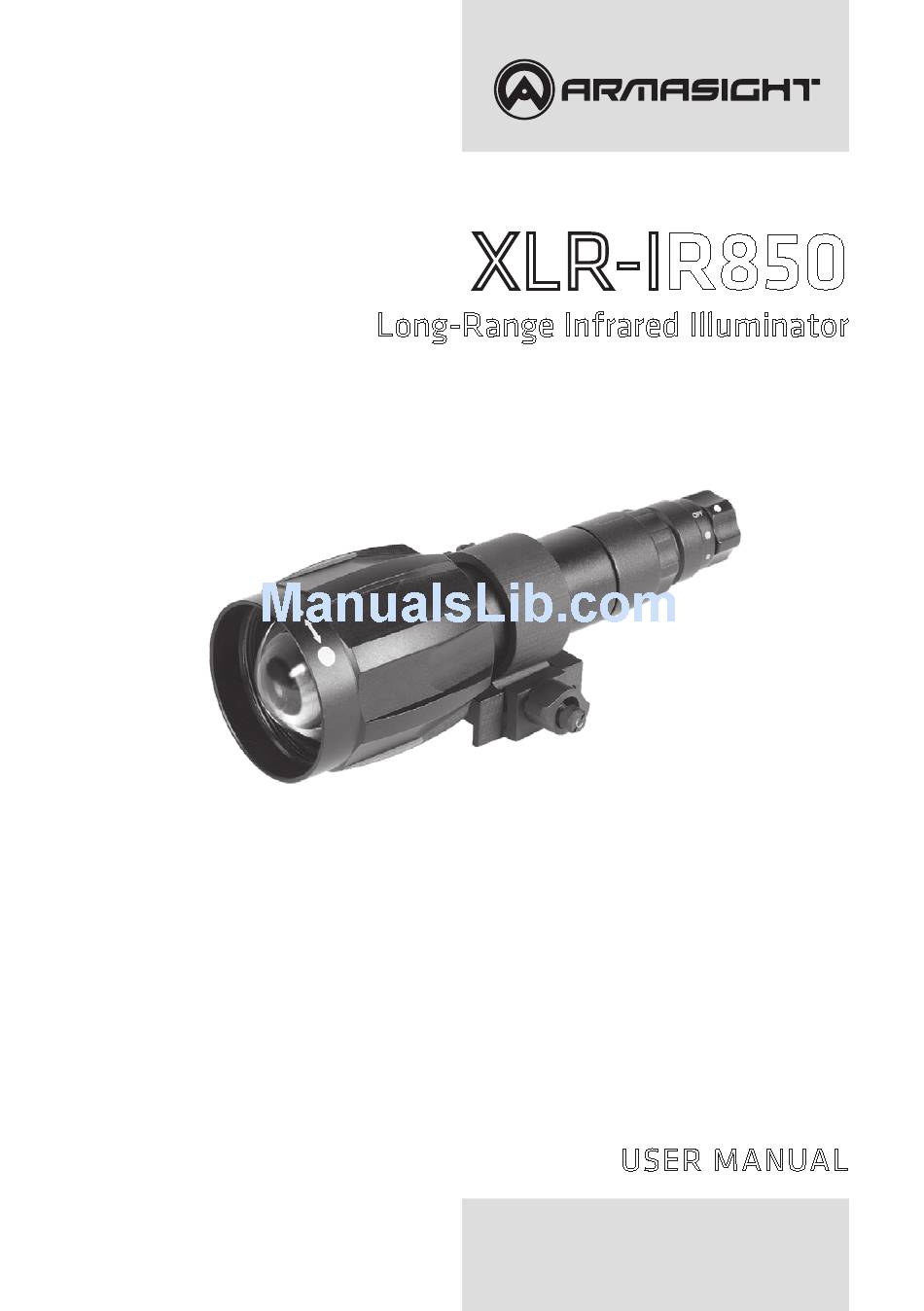

- Page 1 XLR-IR850 Long-Range Infrared Illuminator USER MANUAL...
- Page 2 IR illuminator will lose its brightness over long distances and that your beam may be seen by others using night vision devices. The powerful XLR-IR850 model comes standard equipped with a rechargeable battery and charger unit. An optional Afocal Doubler for XLR-IR850 doubles the distance of IR beam for ultra-long-distance observation. –...
- Page 3 AnD optionAl eQipMent The standard components and optional eqipment of the XLR-IR850 are shown in Figure 1 and listed in Table 2. The ITEM NO. column indicates the number used to identify items in Figure 1. FigUre 1. Xlr-ir850 stAnDArD coMponents AnD optionAl eQipMent tAble 2.
- Page 4 The XLR-IR850 is a removable near-IR illumination device that can be installed on the rail of night vision device (NVD). The IR illuminator is delivered with a dedicated mount, to be installed on the Picatinny/ Weaver rail.
- Page 5 You can use one of the optional Risers for increase the height of illuminator’s mount (for example, when a large objective lens interferes with or obscures the beam). In this case install the XLR-IR850 on the rail of riser (E). Then install the illuminator with riser on the Weaver rail of NVD so that the recoil stop of riser slides into one of the transverse slots of the rail.
- Page 6 IR spot is centered in the field of view, tighten the fixing screws (A) of the clamp. FigUre 5. irspot position ADjUstMent The XLR-IR850 can be used as hand-held long-range IR illuminator with an optional afocal doubler. Attach the magnifying lens to the XLR-IR850 as follows (refer to Figure 6):...
- Page 7 Agreement extend solely to the Customer. Armasight’s liability hereunder for damages, re- gardless of the form or action, shall not exceed the fees or other charges paid to Armasight by the customer or cus- tomer’s dealer. Armasight shall not, in any event, be liable for special, indirect, incidental, or consequential damages,...
- Page 8 Armasight Inc 815 Dubuque Avenue South San Francisco CA 94080, USA Phone: (888)959-2259 Fax: (888)959-2260 Intl Phone/Fax: (650)492-7755 info@armasight.com www.armasight.com...
