Summary of Contents for LinkTv Media LK7100

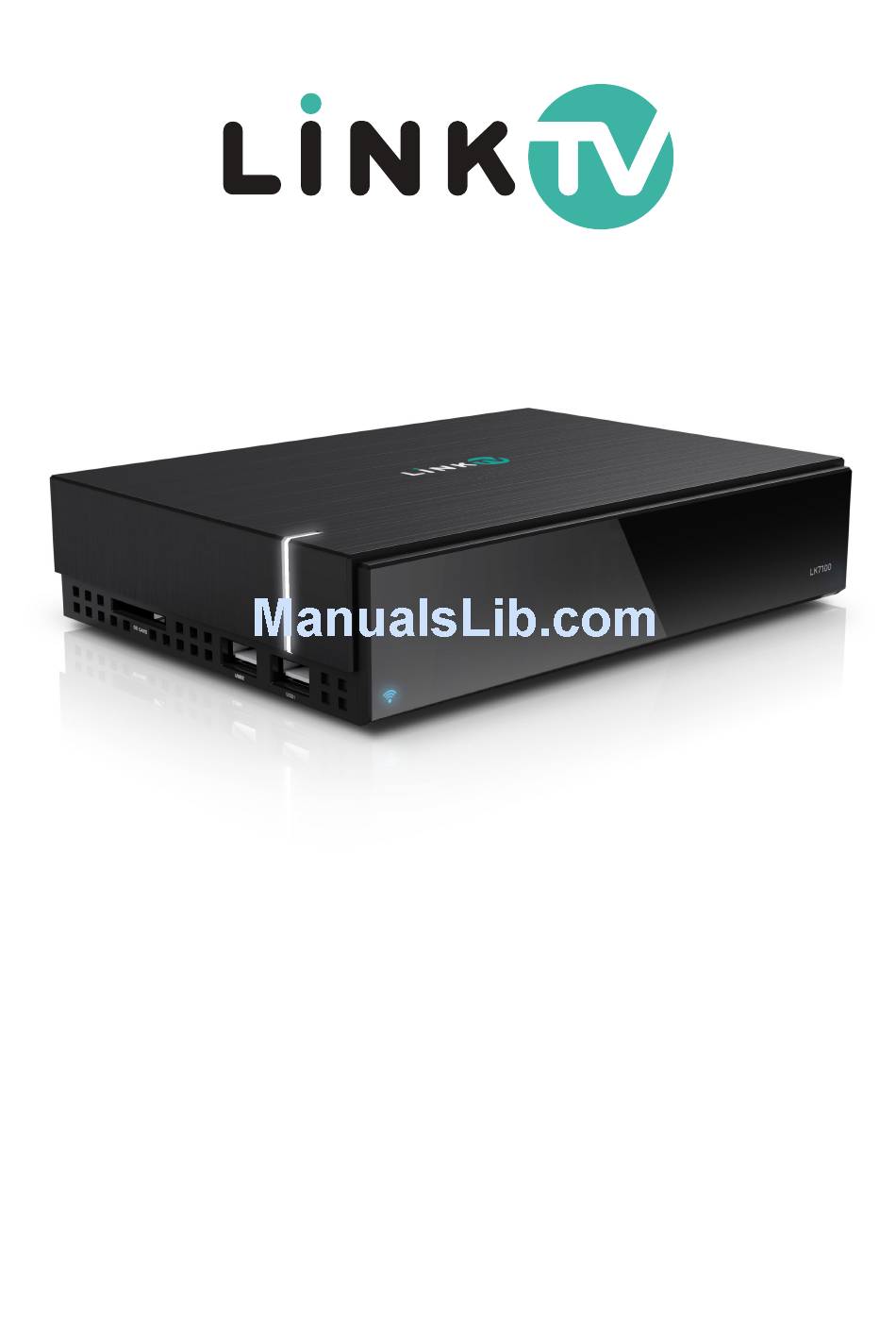

- Page 1 hd android iptv box user manual...
-
Page 2: Table Of Contents
LK7100 User Manual CONTENTS CONTENTS ........................0 AUTION ......................2 RODUCT APPEARANCE ..................3 EMOTE CONTROL ..................... 5 ASIC PERATIONS ....................6 YSTEM SETTING ...................... 16 5.1 W I NETWORKS ....................16 5.2 E THERNET ......................18 5.3 D ................ - Page 3 5.11 L & ANGUAGE INPUT ..................24 5.12 B & ..............ACKUP RESET 5.13 A CCOUNT ......................26 5.14 D &T ........................5.15 A BOUT THE ....................27 ROUBLESHOOTING ......................28 PECIFICATION ........................29...
-
Page 4: Safe Caution
1 Safe Caution NOTICE: To prevent fire and electric shock, do not expose this receiver to rain or moisture. In order to avoid any possible risk of electric shock, never attempt to open the unit. In case of the unit breaking down, repair of the unit should be carried out by qualified technicians. -
Page 5: Product Appearance
2 Product appearance The pictures show what our product looks like: Front panel: Rear panel: NOTICE: The pictures are for references only; please make the object as the standard... - Page 6 Devices Connection As shown, connect the interfaces on the television with the corresponding interfaces on the product (such as connect the product with TV sets through the HDMI cable), then after the power is connected, turn on the switch and you can use the product. NOTE: If you connect the device with AV cable, then you must choose “HDMI 576i”...
-
Page 7: Remote Control
3 Remote control NOTICE: The picture is for references only, please make the object as the standard. -
Page 8: Basic Operations
4 Basic Operations When you open the home screen, it shows like below: After you turn on your Box, Home opens. There are 6 items (SETTING, HELP, RADIO, YOUTUBE, MOVIES, ANDROID) on the screen. There are the classifications of some apps. - Page 9 Click EPG on your controller,you can see the EPG as below,: In the SETTING item, you can see 4 selections,General Setting, Choose Coutry, Manage Favorites, Switch to Favorite Channels, press general Setting to do some basic setting of your devices...
- Page 10 In the SETTING item,if you click Choose Country ,this picture will appear.
- Page 11 In the SETTING item, if you click Manage Favorites ,you can manage your favorite channels ,add or delect your preferred channel to the list, In the SETTING item,if you click Switch to Favorite Channels ,your favorite channel will appear on the screen,and you can press the blue button on your control to back to all channels.
- Page 12 In the HELP item, it will show if you press START can check your connection.
- Page 13 In the RADIO item, there will have quantity of RFM from different, countries .choose from one station ,you can listen to the radio immediately.
- Page 14 In the YOUTUBE item, you can search for videos,audios,etc...
- Page 15 In the MOVIES item, there has a lot of online movies for your reference,...
- Page 16 In the ANDROID Button,you can see 8 buttons as Gallery,Gmail,Chrome,Settings,Play Store,Music,BSPlayer Free,FileBrower. And when you see the screen above,if you press MENU on your controller,it will show 3 selection,Wallpaper to change your wall paper.manange apps to to some configuration of your apps,and press system setting to back to the general setting.
- Page 17 The MY APPS contains all apps install in your product, open it and you can see all apps in your Box. The WIDGETS contains some apps such the clock display. Click the icon for a while and you can change its place.
-
Page 18: System Setting
And if you choose to click the SHOP icon, you can see the screen like below: System setting This part is about the Android Setting. Click the icon Android Setting and you can see the screen like this. 5.1 Wi-Fi networks Connect to the Wi-Fi network. - Page 19 To extend the life of your battery between charges, turn off Wi-Fi when you're not using it. You can also set your device to disconnect automatically from Wi-Fi networks when it's sleeping. Turn Wi-Fi on and connect to a Wi-Fi network If you're adding a Wi-Fi network when first setting up your device, Wi-Fi is turned on automatically.
-
Page 20: Ethernet
1、Turn on Wi-Fi, if it's not already on. 2、In the Wi-Fi settings screen, Click the name of the network. 3、 Click Forget in the dialog that opens. When you connect to a Wi-Fi network, the stick obtains a network address and other information it needs from the network, using the DHCP protocol. -
Page 21: Data Usage
5.3 Data Usage By clicking DataUsage button,you can see how many MB each apps took. 5.4 Sound By clicking Sound,you can set the volumes,phone ringtone,default notification sound,dial pad touch tones,touch sounds. -
Page 23: Display
5.5 Display settings Use the Display settings you can set your TV mode, HDMI auto output mode, Display position, Font size and Wireless display. 5.6 Storage In you Click Storage,you can see the internal storage,,SD CARD storage. -
Page 24: Apps Setting
5.7 Apps setting You use the Apps setting to view details about the applications installed on your stick, to manage their data, to force them to stop if they misbehave, and to set whether you want to permit installation of applications that you obtain from web sites and email. 5.8 Permissions In the permissions,you can find your cookies for each apps you used. -
Page 25: Location
5.9 Location In the location ,if you press Mode,you can choose from High accuracy,Battery saving and device only as above pic shows. -
Page 26: Security Settings
5.10 security settings In the security settings, there are PASSWORD, DEVICE ADMINISTRATION and CREDENTIAL STORAGE. You can modify the parent’s password lock in the section of PASSWORD. In the section of DEVICE ADMINISTRATION, you can choose whether allow installation of apps from unknown sources or not, and whether disallow or warn before installation of apps that may cause harm or not. -
Page 27: Backup & Reset
Use the Language & input to select the language for the text on your stick and for configuring the onscreen keyboard, including words that you’ve added to its dictionary. Language & Keyboard screen Select language opens the Language screen, where you can select the language to use for the text on your stick. -
Page 28: Account
5.13 Account In the account,you can click add an account to add your corporate,google,IMAP account . 5.14 Date& Time In Date& Time,you can choose to Automatic date&time,or you can set by yourself.also, If you press Select time zone,you can change your time zone.Also if you prefer the time show in 24 hour format or 12 hour format can be configure here. -
Page 29: About The Box
5.15 About the Box System updates Opens a screen that reports on the availability of Android system software update. Status Opens the Status screen with a long list of information about your battery, mobile network connection, and other details. Battery use opens a list of the applications and operating system components you have used since you last charged the stick, sorted by the amount of power they have used. -
Page 30: Troubleshooting
Troubleshooting 1、 No signal on the HDTV Ø Check if the HDMI cable is securely connected. Ø Check if you have selected the correct HDMI input on your HDTV. Ø Set the values of the tuner parameters correctly in the installation menu. 2、... -
Page 31: Specification
Specification Basic Functions Mian Chip Amlogic 8726-MX Dual Core Cortex-A9 1.5GHz DDR3 1GB Flash EMMC 8GB Android 4.4 KitKat Video Graphical(up to 1080p) Decoding Network RJ45 Built-in 2.4G single band wireless 802.11b/g/n USB wireless dongle(optional) Keyboard Support virtual keyboard Support 2.4G wireless keyboard,fly air mouse and IR remote control Android APP XBMC,Google Play Music,Gmail,Browse,Maps, etc Video&Audio...
