Summary of Contents for Stinger bacharach

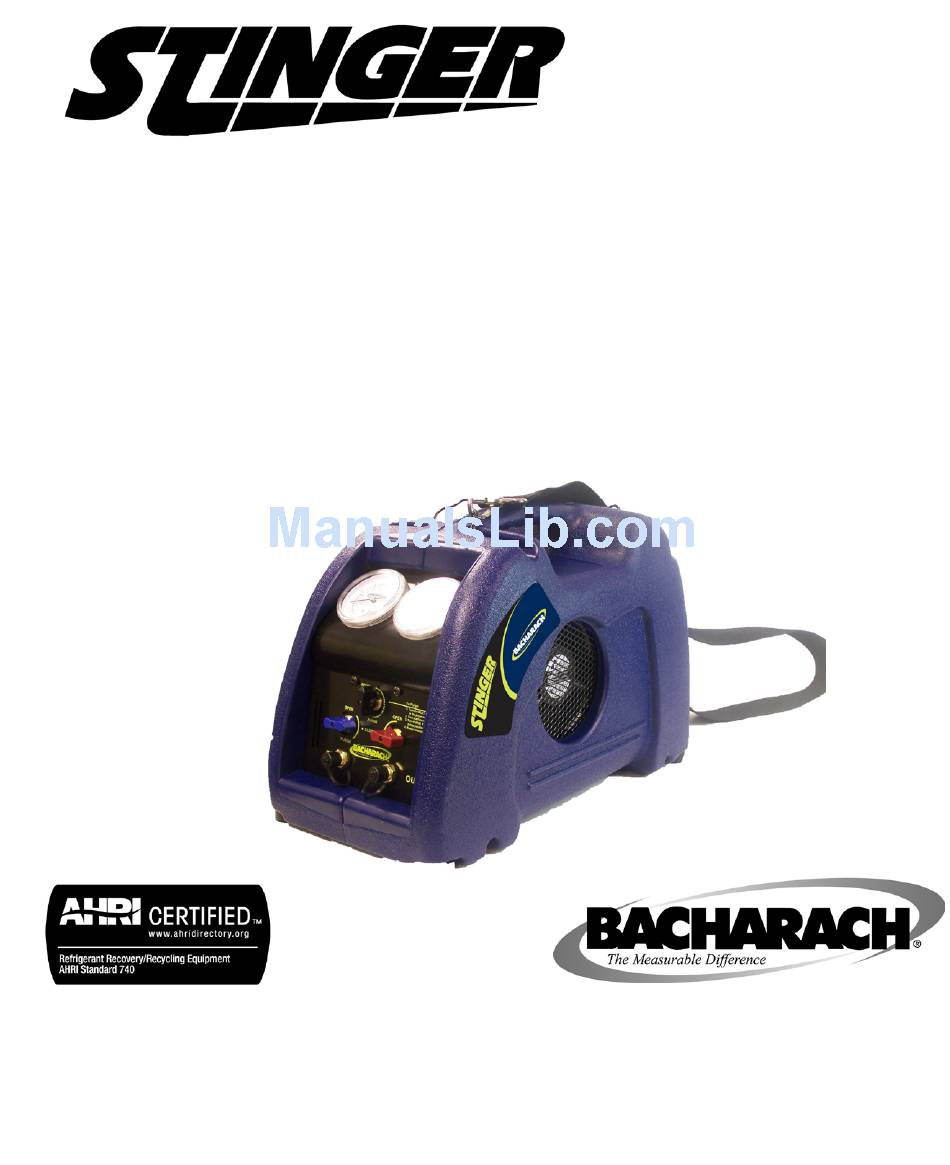

- Page 1 High Performance Oilless Commercial Refrigerant Recovery Unit User Manual 2090-0217 Rev. 4 – November 2010...
-
Page 2: Introduction
Congratulations on your purchase of the STINGER high performance oilless recovery unit. Bacharach has worked hard to make the STINGER the highest performing, most portable, and easiest to use recovery unit on the market. We are committed to your complete... -
Page 3: Stinger Specifications
STINGER Specifications STINGER R-12, R-22, R-114, R-134a, R-401A, R-401B, R-401C, R-402A, Compatible R-402B, R-404A, R-406A, R-407A, R-407B, R-407C, R-407D, Refrigerants R-408A, R-409A, R-410A, R-411A, R-411B, R-412A, R-500, R-502, R-507, R-509 • 110/120 VAC, 1 Phase, 50/60 Hz, 8 Amps See label on Power •... -
Page 4: Table Of Contents
Liquid Push-Pull Recovery Operations ..........11 Liquid Push-Pull Operations, Con’t............12 Liquid-Pull Recovery / Charging Method ..........13 R-410A Recovery – Special Notes ............14 Purging the STINGER ................15 DOT Recovery Cylinder Safety ............16 Recovery Tips ..................17 Troubleshooting ..................18 Schematic Diagram ................ -
Page 5: General Safety
Use weight scale A scale (P/N 2010-0000) must be used to indicate when the recovery tank is 80% full when the STINGER does not have the 80% Shutoff Kit option installed. Avoid dangerous environments Although the unit can be used outdoors, we do not recommend operation in the rain, or in wet locations. -
Page 6: Operational Safety
Eye: In case of liquid contact, immediately flush eye with water. Seek medical attention. Skin: Flush with water. Treat for frostbite by gently warming the affected area. CAUTION: All refrigerant hoses, recovery tanks, refrigerant lines, the STINGER unit, and other vessels containing refrigerants should be handled at all times as if under high... -
Page 7: Description Of Features
Purge Valve Outlet Gauge This valve determines Displays the what function the outlet/discharge pressure. STINGER performs. This valve is UP during recovery Outlet Port Valve operations and Opens or closes the DOWN for purging outlet port. Points UP... - Page 8 (PN 2090-0091/ Kit: PN 2090-0091) This optional accessory connects to a DOT recovery cylinder’s overfill sensor. It automatically Two Circuit shuts the STINGER off when the Breakers recovery cylinder reaches 80% of Protects the its liquid-fill limit. STINGER from Note: If this option is installed, the over current.
-
Page 9: Vapor/Liquid Recovery Operations
Proceed with the recovery process until the system pressure shows a vacuum. Turn OFF the STINGER for a minimum of 5 minutes; after which, determine the amount of refrigerant remaining in the system. Repeat this step until system pressure is below mandatory EPA levels. -
Page 10: Standard Recovery Hose Connections
Standard Recovery Hose Connections IMPORTANT NOTES FOR LIQUID RECOVERY The Stinger can be used for pumping virgin refrigerant on an intermittent basis. Unlike recovered refrigerant, virgin refrigerant does not contain oil. CAUTION: Routinely pumping virgin refrigerant through the STINGER can remove lubrication from the compressor, resulting in premature failure. -
Page 11: Liquid Push-Pull Recovery Operations
A scale or liquid-sight glass can be used to determine when all the liquid is recovered. The STINGER will not pull a vacuum using the liquid push-pull recovery operation. To finish the recovery operation, you must perform vapor recovery operations as described on Page 9. -
Page 12: Liquid Push-Pull Operations, Con't
Liquid Push-Pull Operations, Con’t. Open both the vapor and liquid valves on the DOT recovery tank. Turn ON the STINGER. The compressor will begin to “pull” vapors from the cylinder and “push” the liquid out of the system and into the recovery cylinder. -
Page 13: Liquid-Pull Recovery / Charging Method
STINGER. The virgin refrigerant is pulled directly into the system being charged. The STINGER keeps the pressure low in the system by removing vapor. For every pound of vapor removed, as much as 25 pounds of liquid refrigerant may be... -
Page 14: R-410A Recovery - Special Notes
“throttling” the inlet valve until the STINGER begins to run normally. WHEN RECOVERING LIQUID: If a loud knocking noise occurs, the inlet pressure on the STINGER should be throttled back by slowly closing the inlet valve until the knocking noise stops. This action will prevent compressor damage. -
Page 15: Purging The Stinger
Turn the purge valve (black knob center) slowly to the “PURGE” position (pointer DOWN position). The STINGER will now start purging itself of refrigerant. Allow the unit to run until the inlet gauge indicates that there is an adequate vacuum present in the system. -
Page 16: Dot Recovery Cylinder Safety
If your STINGER is not equipped with an 80% tank full shutoff cord, or if you are using a recovery cylinder that does not have a float switch, then you must use a scale to prevent overfilling the cylinder. -
Page 17: Recovery Tips
• Use an agency approved in-line filter (P/N 07-1700) to prevent contaminants from entering the STINGER. • If the STINGER has the optional 80% tank full shutoff cord installed, connect this cord to the recovery cylinder’s float switch. If the cylinder does not have a float switch, then be sure to install a shorting cap on the shutoff cord;... -
Page 18: Troubleshooting
Troubleshooting PROBLEM CAUSE ACTION AC power switch is ON, Power cord not attached Attach power cord. but fan, compressor, No voltage at AC outlet Verify voltage at job site. and status LED are all Circuit breaker has opened Identify cause of breaker activation, rectify and reset. - Page 19 Troubleshooting, Con’t. PROBLEM CAUSE ACTION Status LED still glows High pressure switch was once Turn unit OFF and then back ON. red after high pressure activated causing high pressure condition has been circuit to latch ON cleared Compressor starts but Inlet valve is in PURGE or CLOSED Rotate inlet valve to RECOVER.
-
Page 20: Schematic Diagram
Schematic Diagram... -
Page 21: Stinger Parts List
STINGER Parts List See STINGER Exploded View on Page 22. Item Part Description Number 2045-0620 Compressor (110/120 VAC) 2045-0720 Compressor (230 VAC) 2090-2042 Compressor (240 VAC) 2023-0100 Manifold 2014-0310 High Pressure Switch, 550 psi 2013-0090 Fan, 4", 110/120 VAC 2013-0040 Fan, 4", 230 VAC... -
Page 22: Stinger Exploded View
STINGER Exploded View... -
Page 23: Compressor Parts List
Compressor Parts List See Compressor Exploded View on Page 24. Part No. Item Description 2081-0410 Motor Shaft Head Bearing 2081-0370 Crank Housing 2043-0030 Shaft Seal 2051-1900 Screw, Machine, M5 x 10MM 2081-0310 Piston Cup Seal Retainer 2043-0020 Piston Cup Seal 2081-0270 Piston 2081-0400... -
Page 24: Compressor Exploded View
Compressor Exploded View... -
Page 25: Warranty / Repair Procedures
Warranty / Repair Procedures Bacharach warrants this product for 1 year from the date of purchase indicated on the original sales receipt. The warranty covers all parts within the unit, but excludes damage to the unit caused by misuse or mishandling. The unit’s motor brushes carry an extended warranty of 5 years.
