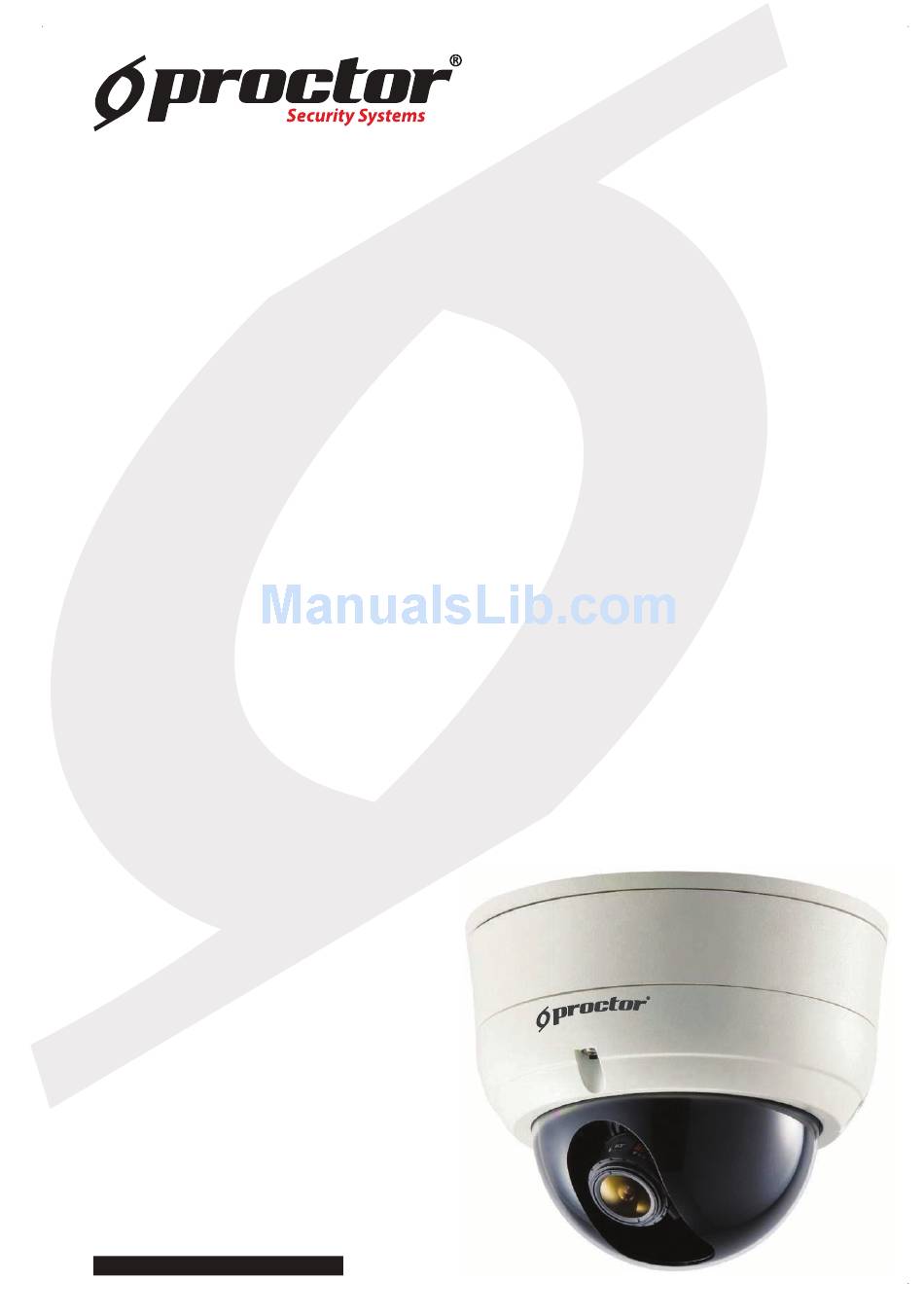

- Page 1 Megapixel IP Dome Camera 1.3MP / 2.0MP /3.0MP User Manual ver.2.0 www.proctorsystems.com...
-
Page 2: Safety Precaution
Safety Precaution We appreciate your purchasing Proctor Megapixel IP Camera. Before installing the product, please read the following with care ² he power before installing system. ² Do not install under the direct sunlight or in dusty areas. ² Make sure to use the product within the temperature and humidity spe ed in the ²... -
Page 3: Table Of Contents
Table of Content 1. Introduction .......................... 4 About this manual ....................... 4 Features..........................4 Product and Accessories ...................... 5 System Connections ......................7 2. Installation ..........................9 3. System Operation ........................ 11 Remote Video Monitoring ....................11 Initialization of IP address ....................14 4. -
Page 4: Introduction
1. Introduction About this manual This user manual provides information on operating and managing the premium network camera. The manual includes instructions of installation, operation and con guration of the system as well as how to make troubleshooting. Features Megapixel IP camera is megapixel network-based system with remote live monitoring, audio monitoring and control via an IP network such as LAN, ADSL/VDSL, and Wireless LAN. -
Page 5: Product And Accessories
User Interface Diagnose and upgrade through dedicated program called True Manager System con guration using Internet Explorer High Reliability Reliable embedded system System recovery by dual watch-dog functions Product and Accessories Megapixel IP Dome Camera 1.3MP / 2.0MP /3.0MP User Manual ver.2.0 1.3 Megapixel IP Camera Manual www.proctorsystems.com... -
Page 6: Part Names And Functions
Part Names and Functions Rear View ① ② Connector Function 1. Ethernet/802.3af Ethernet port/802.3af LED : Booting and system check 2. RESET Button Initialization of network setting 3. AUDIO IN Audio input 4. AUDIO OUT Audio output 5. POWER IN DC 12V 6. -
Page 7: System Connections
System Connections IP camera can be connected in either 1 to 1 connection where one camera is connected to one PC client or a decoder system or 1 to many connections where one system can be connected to several PCs and decoder systems. -
Page 8: Multicast Mode
In this con guration, a site can be monitored from many remote central locations. Maximum connections s. Maximum connections would be limited by network bandwidth connection. Functionally, the VMS (Video Management System) anagement System) software provided can replace the decoder. Multicast Mode If the network supports multicasting, a large number of decoders can be used to receive video e ectively from coders can be used to receive video e ectiv... -
Page 9: Installation
2. Installation Connecting Network (LAN) Connect the power adaptor to IP camera Connect network cable to ethernet port To display video through composite port, after connecting each port to a monitor, set preview option “ON” on the web-viewer page. Connecting Audio Audio is full-duplex. - Page 10 Check if it Works Once the power is supplied to the IP camera, it will start booting. The IP camera will boot up to an operating mode after approximately 40-60 seconds. The green LED on the Ethernet port will ash indicating the IP camera is ready.
-
Page 11: System Operation
3. System Operation Remote Video Monitoring There are two ways to monitor video when the center system and IP camera are connected. In order for a proper operation, an IP address must be set accordingly. Please refer to True Manager Manual enclosed with product for further details. - Page 12 Video Select Select the Video stream to be viewed: Primary or Secondary This camera is capable of dual streaming; primary streaming and secondary streaming. Video will be displayed according to the resolution set on video con guration. If dual streaming ( “Use Dual Encode”...
- Page 13 Alarm Output Operate the alarm device by pressing the number icon This camera supportsone alarm output. A number icon indicates status of the alarm device. Snapshot Capture video images and store them as BMP or JPEG les. Talk Transfer audio from PC’s mic to the camera. File Record Recording to an AVI le on Live View page is available.
-
Page 14: Initialization Of Ip Address
Initialization of IP address If a system IP address is lost, the system can be reset to the system default IP address using the reset button in the back side of the system. 1. Whire systme is in operation, press the reset button for more than 5 seconds. 2. -
Page 15: Remote Configuration
4. Remote Con guration Using Web Brower Remote setting is available by using web browser. Enter IP address of camera and then a live view screen appears as below. Press Setup button located in the upper right area of the monitoring screen to go to the server setup. -
Page 16: System Configuration
System Con guration 16/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 17 General System ID Enter System ID that is used as a camera title The set System ID is displayed with video image on Web browser. The System ID is also transferred to remote software, such as VMS, and displayed on it. Language Select the language to be used for web-based con guration Firmware...
- Page 18 Con g Backup & Restore Backup All the setting of con guration can be stored. Restore Stored con guration can be browsed and restored. The server is rebooted once Con g Restore button is pressed. Time Start Time The latest the camera’s booting date and time Current Time Current date &...
- Page 19 Automatically synchronize with NTP server Synchronize the camera time with an NTP server using NTP (network time protocol). Name of the NTP server should be registered on NTP server Name. The Network Time Protocol ( NTP ) is a protocol for synchronizing the clocks of computer systems over packet-switched, variable-latency data networks.
-
Page 20: Video Configuration
Video Con guration 20/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 21 Encode Enable Preview Select ON to enable to display video on the monitor that is connected to the composite or HD-SDI video port. Select the Output format accordingly in the end of the Video page. Note that when Enable Preview is ON , dual streaming is not available.
- Page 22 H.264 Pro le Select H.264 Pro le: High Pro le or Baseline Pro le The standard de nes various sets of capabilities, which are referred to as pro les, targeting speci c classes of applications. High Pro le (HiP) The primary pro le for broadcast and disc storage applications, particularly for high-de nition television applications (for example, this is the pro le adopted by the Blu-ray Disc storage format and the DVB HDTV broadcast service).
-
Page 23: Motion Detection
Motion Detection Use Motion Detection Determine to use Motion Detection function Motion Detection Area Editing Con gure regions for motion detection. Regions of arbitrary shape can be con gured by the following steps. Select Enable on Edit tab Select editing Mode. Set is for including cells to motion detection region and Erase is for excluding. -
Page 24: Output Format
BurnIn OSD Insert system ID and date/time in the compressed video . System ID and time respectively can be turned on or o in the video. Position and Font size can be con gured also. System ID for BurnIn OSD exists independently from normal System ID. -
Page 25: Audio Configuration
Audio Con guration Algorithm Algorithm Select the audio algorithm: G.711 or AAC G.711 and AAC from client to server direction are supported. Thus, bidirectional audio communication is supported. Bit rate Select the bitrate between 64Kbps and 128kbps when AAC is selected The sampling rate is xed to 8KHz and 32KHz for G.711 and AAC respectively. -
Page 26: Network Configuration
Network Con guration 26/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 27 Local IP mode Select the IP mode: Fixed IP or DHCP (Dynamic Host Con guration Protocol) Depending on the selected mode, further con guration items come as follows IP Mode Selection Description Local IP Fixed IP address Local Gateway IP address Fixed IP Gatewa Local Subnet...
- Page 28 Ipv6 Link Local Display Ipv6 Link Local. Port Base Port (1025 ~ 65535) Enter the Base Port number. Network base port is use for communication with remote clients. In order for camera and remote systems (decoder or VMS, NVR software) to be connected, the port number must be identically con gured in camera side and client side.
- Page 29 One-way Streaming This IP camera provides two kinds of one-way(unidirectional) streaming based on UDP to clients: and MPEG-TS . Both are a kind of broadcasting where tra c from client to server is not generated at all. RTP (Real-Time Transport Protoco l) is an Internet protocol used for transmitting single real-time multimedia data such as audio and video to a select group of connected clients.
- Page 30 MPEG-TS is a standard format for transmission and storage of audio, video, and data,[7] and is used in broadcast systems such as DVB and ATSC. Transport Stream is speci ed in MPEG-2 Part 1, Systems (formally known as ISO/IEC standard 13818-1 or ITU-T Rec. H.222.0). Transport stream speci es a container format encapsulating packetized elementary streams, with error correction and stream synchronization features for maintaining transmission integrity when the signal is degraded.
- Page 31 DDNS Select the DDNS (Dynamic DNS) server to use. One of the two servers can be selected. True DNS: TrueDNS service is used in this mode. Systems can be registered on the website for TrueDNS service: http://ns1.truecam.net . System will get a domain name of xxx.truecam.net style. Please refer to user guide document for True DNS service.
- Page 32 Address Information Followed network information is displayed (Read only) IP Address: The Camera own IP address. This information is useful when the camera’s IP mode is set to DHCP. Domain Name: In case the camera is registered at DDNS server, the registered domain name is displayed.
-
Page 33: Serial Configuration
Serial Con guration 33/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 34 Serial Port Con guration Serial Port Information This camera supports one RS-485 serial port By default, Pelco-D protocol is used with 2400bps baudrate. Sensor Type There is one sensor input port on Megapixel IP camera.The sensor port can be con gured to the following.
- Page 35 To set all cells in the schedule, click below “Empty Cell”. 35/55 Megapixel IP Camera Manual www.proctorsystems.com...
-
Page 36: Event Configuration
Event Con guration 36/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 37 When a decoder instead of a PC client is connected to an IP camera, one system becomes a Local system and the other a Remote system (Generally a system which is being used by the user is called as Local system).
- Page 38 E-mail Noti cation Specify the information to send event information, when E-mail is selected as an event action. Server Address Enter an address of mail(SMTP) server Port Specify a port for SMTP operation ( Port 25 is the default port in SMTP operation .
- Page 39 Message Description Test E-mail has been sent successfully. Reception in the client E-mail sent successfully can be checked. Failed to connect SMTP Connection to the SMTP server failed. It is necessary to check if server the server is reachable and server address and port are correct. The server is reachable but authentication failed.
- Page 40 FTP Upload Specify the information to upload event information, when FTP is selected as an event action’ Server Address Enter an address of an FTP server to receive video les Port Specify a port for FTP operation (Port 21 is the default port in FTP operation. If a di erent port is con gured in the FTP server, this port needs to be changed accordingly).
- Page 41 Number of Frame Enter frame number of JPEG Capture (from 1 to 10). Continuous Upload Continuous upload ‘ On’ allows video clips to be transmitted regularly regardless of occurrence of events. When this mode is turned on, FTP upload by events is suppressed. Upload Duration Specify recording duration of a video clip to be transmitted.
-
Page 42: Preset Configuration
Preset Con guration Preset Select preset # and insert the name of preset. Set camera position for the preset and press Save List button. 42/55 Megapixel IP Camera Manual www.proctorsystems.com... -
Page 43: Record Configuration
Record Con guration 43/55 Megapixel IP Camera Manual www.proctorsystems.com... -
Page 44: Disk Information
DISK SD memory can be used, and at least 1GB size is recommended. Either EXT3 or FAT32 le system can be used. A disk with either EXT3 or FAT32 le system can be read in Linux PC. However, only disk with FAT32 le system can be read in Windows PC. - Page 45 General Use record O : Recording function will not be used when “O ” is selected Use Disk : Recording will be enabled and data will be written to a disk Use FTP : Recording will be enabled and data will be uploaded to an FTP server. In this mode FTP upload by event is automatically disabled.
- Page 46 FTP Base Directory Specify the name of the directory to be created in the FTP server. It is valid only when Use Record is set to Use FTP . Event Type Three recording modes are supported: Continuous , Event , Disconnect . In case of Event recording, event types can be selected among several events.
- Page 47 Search and Playback Recorded video and audio data can be saved as AVI format in the disk. In general, one AVI le is created for an event in case of event-based recording. However, it is possible that recorded data by serious of events happening continuously can be merged to a single AVI le depending on pre/post event time setting.
- Page 48 Playback Selecting an AVI le will show a dialog for opening or saving the le Pressing Save button, the le will be stored in the PC. The AVI le can be played with Windows Media Player. If you press Open in the dialog, the le will be downloaded and played automatically with Media Player. Another connection through web is disabled during downloading and it is also not allowed to download two AVI les at the same time.
- Page 49 Deletion of data If you want to delete recorded les, select the les by checking the item in front of each le and press Delete button. It is possible to delete multiple les at once. 49/55 Megapixel IP Camera Manual www.proctorsystems.com...
-
Page 50: User Configuration
User Con guration User List User can be registered and privilege level of a user can be speci ed. User con guration is allowed only to registered and privilege level o on is allowed only to admin user. Max 16 users can be registered and each user can have one of four privileges. min user. - Page 51 Delete User Select the User to be deleted and press Delete button. Change Password Press Modify Password button. The following window will appear. Enter the current password and then set a new password. Modify Privilege Level Press Modify Privilege button to change User level. It is not allowed to change the privilege level of admin user.
-
Page 52: Camera Configuration
Camera Con guration 52/55 Megapixel IP Camera Manual www.proctorsystems.com... - Page 53 Flip Horizontal Flip The image appear left and right side cosses when “on” is selected. Vertical Flip The image appear up and down side croses when “on” is seleted. Refer to the principle of lpping image Auto Exposure & Auto White Balance (AE & AWB) AE control gain , iris and exposure time for image quality automatically.
- Page 54 AE Target The AE target can be adjusted in the range 0-40. Lower value mean darker image. This is used on AE mode. AE MAX The AE MAX can be adjusted in the range 0-45. AE MIN The AE MIN can be adjusted in the range 0-35. The changes of image become insensitive if the value is lower and sensitive if the value is larger in case of these both AE MAX and AE MIN.
- Page 55 Shutter Speed Value Shutter speed can be selected in the range of 1/30 sec to 1 sec. When 1/6 sec is selected for example, the image sensor is exposed for 1/6 sec, and thus max 6 frames can be obtained for one second. IRIS Megapixel IP camera support Auto IRIS Lens Mode...
