Summary of Contents for Delta Thermie HD-FL Series

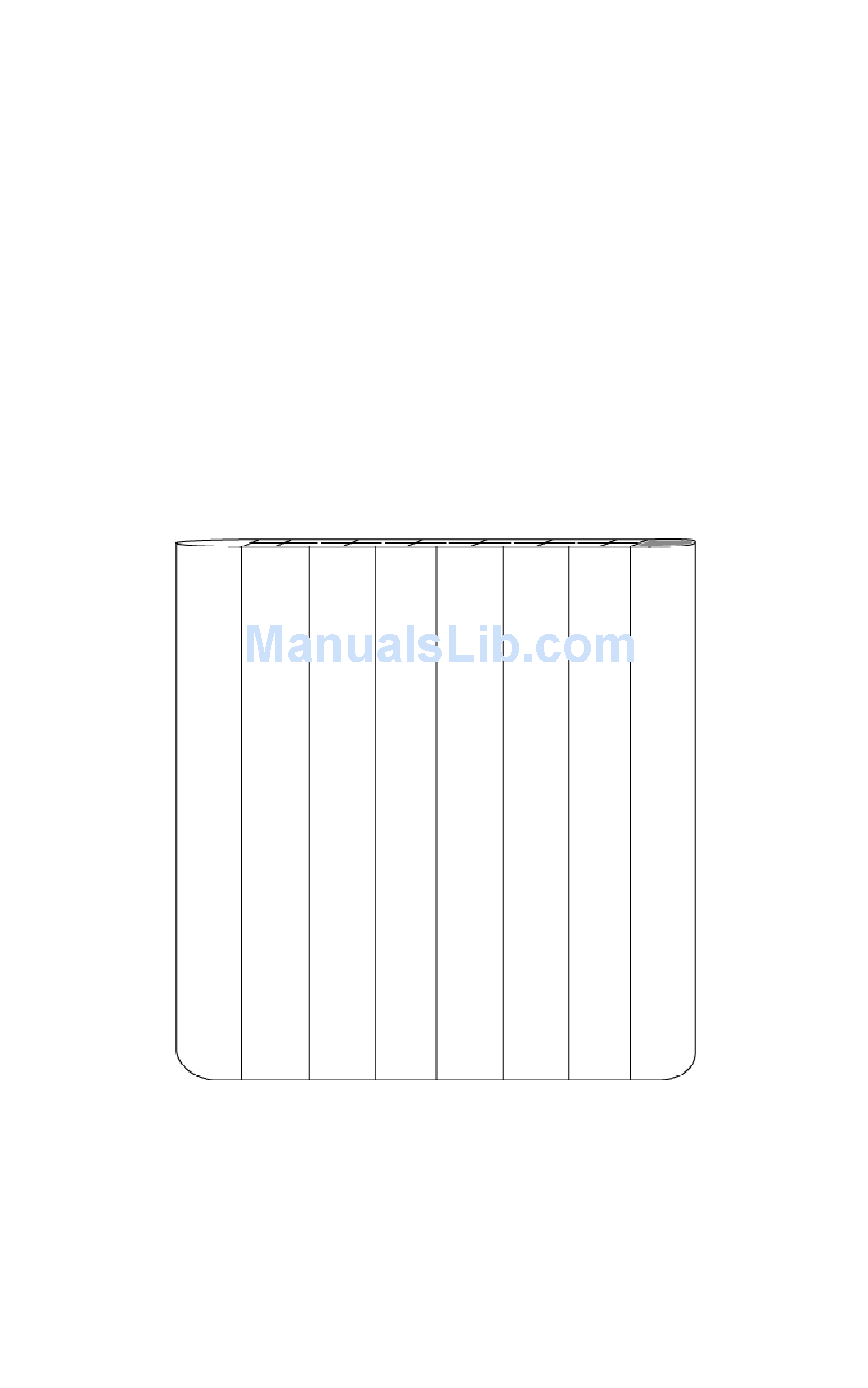

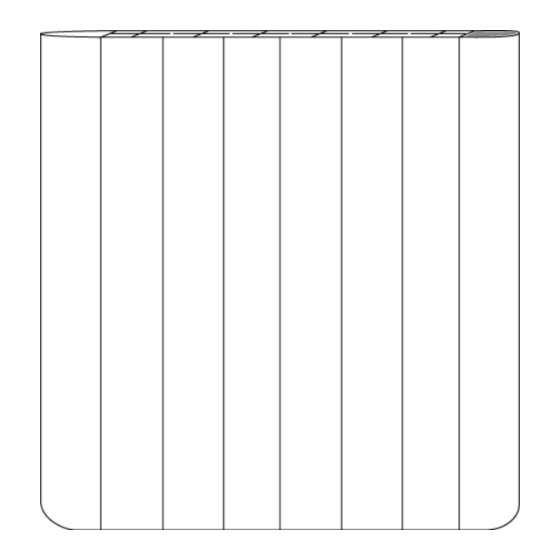

- Page 1 DELTA THERMIE Users Manual Aluminium Radiator HD-FL Serie Please read this manual carefully before use...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should always be observed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING: To reduce the risk of fire, electrical shock, or injury to person: 1. The product is for household use only. 2. - Page 3 cause a risk of fire. 11. Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner.
-
Page 4: Specifications
supervision or instruction concerning use of the appliance by a person responsible for their safety. 20.Children should be supervised to ensure that they do not play with the appliance. 21. This heater is filled with a precise quantity of special oil. 22. -
Page 5: Installation
CHARACTERISTIC 1. 1 heat setting 2. Over heating protection 3. With digital LCD 4. Room temperature setting 5. Room temperature sensor 6. Digital clock, digital week calendar 7. Multi-running mode: daily program mode, weekly program mode, free use mode 8. Anti-frost function 9. - Page 6 (1) Drill holes on the wall according to the picture. Warning: Be sure to keep the distance between the heater and floor, wall and so on accordingly. (2) Fit the fasten tube in the holes. (3) Fit the up-hook on the wall with screws. (4) Hang the unit on the up-hook.
-
Page 7: Control Panel And Lcd Screen
INSTRUCTIONS FOR USE Warning： Before using the heater make sure that it is mounted tightly on the wall. Damage may occur if it is placed on an incline or decline. The control system is with following functions: 1. With digital LCD to let you know the working situation of the unit. - Page 8 ------Increasing; ------Decreasing; Screen: Clock, Date, Program name, Target temperature, Comfort, Economic, Anti-frost, Stand by, buttons lock, heating, program setting, timer, program contents, solid time mark Rationale: There are 3 running modes: free , daily weekly Free use mode( ): It will include normal mode and timer mode ;...
-
Page 9: How To Use
Every program combined with 3 working modes: comfort( economic( )and anti-frost( and empty). every day(24hours) is divided into 24 segments evenly. Every segments will be filled in with one working mode to combine a daily program. All the setting for daily program will be kept in memory by the unit. - Page 10 2-1-1.Time setting: Press ,the hour start to twinkle, use to select hour (0 ~ 23). Press again, the minutes start to twinkle, use to select minute( 0 to 59); Pressed again, date start to twinkle, use to select date (1-Monday, 2-Tuesday, 3-Wednesday, 4-Thursday,...
- Page 11 from 10 ℃ ~ 35 ℃. (Note: If press without releasing, you can achieve rapid increasing or decreasing; If there is no pressing, the twinkle would stop after 5 seconds and setting will be finished automatically.) 2-1-3.Timer setting(timer mode): Long-press (3 seconds) till the showed.
- Page 12 Quit from timer mode: long press button (3 seconds) until the disappeared. The unit automatically return back to free normal mode. (Note: Once the machine exit free program (enter the day, week program, or standby), and then return to the free program, the unit always enters into the free normal mode first.
- Page 13 Anti-frost mode: ( and program content displayed empty ), 7 ℃, it’s inherent and non-adjustable. If a daily program was chosen for the work program, the unit will repeat the program every day. Different program used for the first time as follows: P1：...
- Page 14 2-3-1. Time setting: Same as 2-1-1, then the unit will automatically adjust to the current time and running accordingly. 2-3-2. Temperature setting: Long-press (3 seconds) until twinkle, at the same time the original comfort temperature start to twinkle. Press to set the target comfort temperature. Press to confirm, and start to twinkle, the original economic temperature also starts to twinkle.
- Page 15 will showed until the setting is completed, the heating will stop during the setting). The date does not show , time is 00:00. The mark starts to twinkle rapidly at the first segment of selected program, such as following (when the selected daily program is P1): Press to select the working mode (...
-
Page 16: Time Setting
following: 2-4-1．Time setting Same as 2-1-1, then the unit will automatically adjust to the current time and running accordingly. 2-4-2．Temperature setting： Same as 2-3-2 2-4-3. Setting weekly program: Long-press (3 seconds) to enter weekly program setting, the time and working mode are no longer displayed, showed displayed until the setting finished, the unit stopped heating during the setting), Monday marking begin to twinkle, program... - Page 17 Monday (1). Press to confirm and automatically enter the Tuesday (2).With same method you can select a daily program for everyday in a week . Finally press to complete week program settings. Then Disappear and the unit will run according to new weekly program.
-
Page 18: Other Notes
Note: Press to power on, the unit would come back to factory pre-setting. 4. Other notes： (1) The screen is with back light. It will extinguish after 1 minute if you didn’t press any button. It will light up if you press any button. -
Page 19: Maintenance
) after 1 minute if you didn’t press any button. Open lock: press at same time. (3) Time will be clean to 00:00 if you unplugged unit or cut off the power. (4) This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot. -
Page 20: Conformity With Directives
package and store it in a clean dry place. 5. In case of malfunction or doubt, do not try to repair the heater yourself, it may result in a fire hazard or electric shock. CONFORMITY WITH DIRECTIVES This product is CE marked to denote conformity with Directives 73/23/EEC (Low Voltage) and 89/336/EEC (Electromagnetic Compatibility), as amended.
