Summary of Contents for ALC PDR

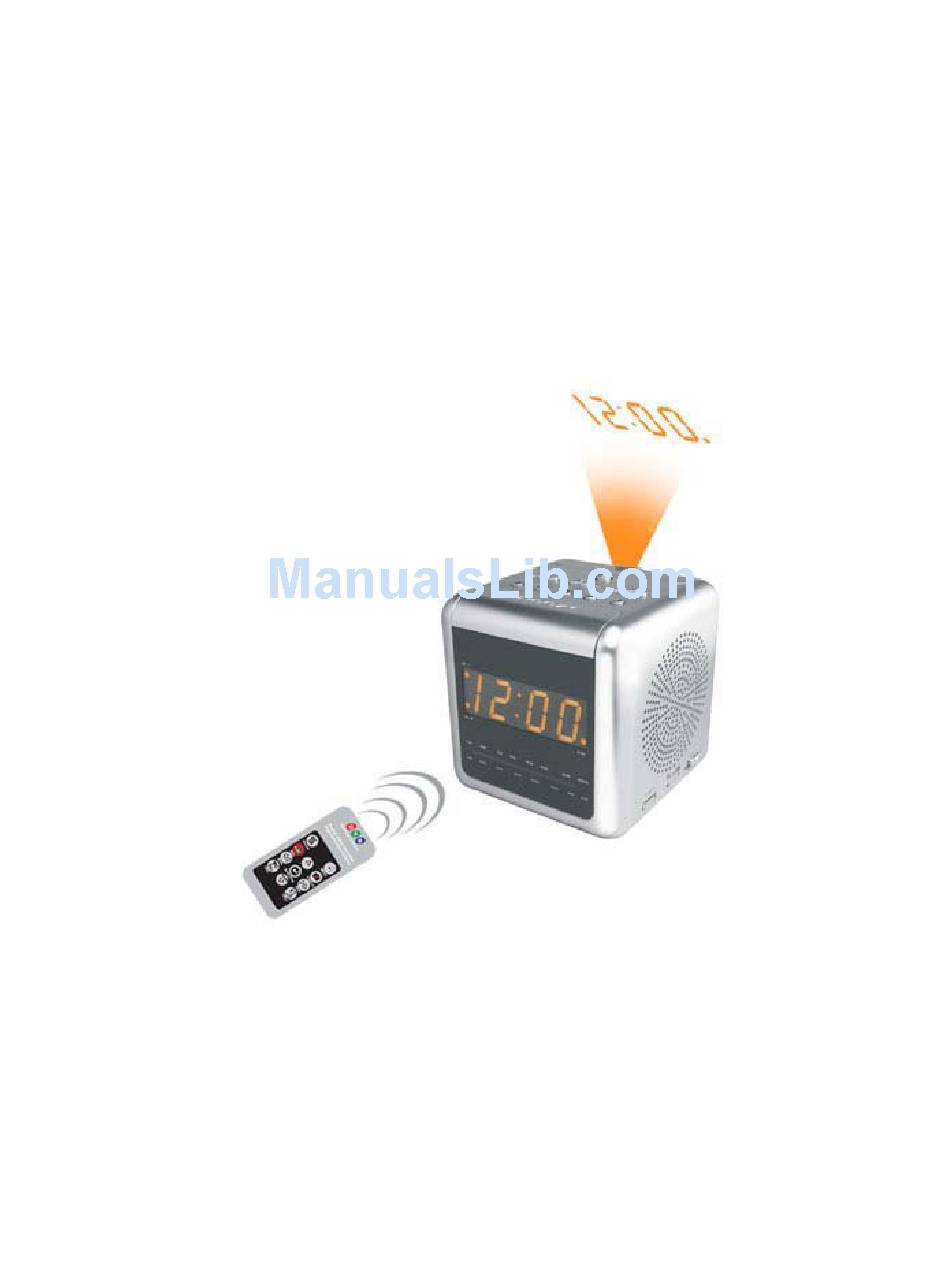

- Page 1 Portable Digital Recorder User Manual...
- Page 2 Package ………………………………………………… Specification .. ………… …………………………………… ………… Recording Capacity Estimator .. ………… …………………………… CHAPTER 1 - Appearance & Installation Appearance Introduction …………………… IR Remote controller introduction …… ……… Camera installation …………………………… External Trigger installation ……………… Monitor / earphone installation ……………… SD memory card installation ………………...
- Page 3 Model Number Alarm Clock Portable DVR Compression MPEG4 Storage Device External SD Card of Any Size Image Resolution Record:320 × 240 MPEG4 ,Snapshot: 320 × 240 JPEG Video Playback NTSC:30fps/sec , PAL: 25fps/sec. (ASF file format) Photo Display JPEG format 640×480 Audio / Video Input 4 pins connector (with DC power for camera) Audio / Video Output...
- Page 4 1. Projection Lamp 2. Projection ON/OFF Button 3. Power ON/OFF 4. Radio/N1/N2 Band 5. Alarm 1 Button 6. Alarm 2 Button 7. Sleep Button 8. Snooze Button 9. Time Button 10. Hour Button 11. Minute Button 12. AM/FM Button 13. VR ON/OFF Button: DVR ON/OFF 14.
- Page 5 1-2 IR Remote Control 1- Source: Video Source selection 2- Menu: System Menu 3- REC Recording Button 4- Capture Picture Capture Button 5- Enter Button Enter / Play Function Camera To use the camera simply push the VR ON/OFF. To record, use your remote control REC Button. The light will be flashing Green/Orange when recording.
- Page 6 Monitor / earphone installation VR OUT : Connect to the external monitor and earphone. 1-6 SD memory card installation Please make sure the SD card is in the correct direction before plug-in.
- Page 7 5. Storage capacity status display SD card storage level display 2-2 System setting Press MENU button on control panel or remote controller. 2-2-1 Capacity display on/off. SYSTEM > CAPACITY > ON - Display Capacity - SYSTEM > CAPACITY > OFF – Do not Display Capacity 2-2-2 Delete Records - SYSTEM >...
- Page 8 2-2-3 Time Setup SYSTEM > DATE TIME – Date and time adjustment SYSTEM > DISPLAY ON – Date and Time display ON/OFF Setting Select options by using LEFT/RIGHT Arrows on the Remote Control and adjust values using UP/DOWN. Select video system for AV OUT. 2-2-5 Motion Detection FUNCTION FUNCTION >...
- Page 9 2-2-6 Overwrite recording FUNCTION> OVER WRITE> ON/OFF Recorded video will be overwritten. OVER WRITE ON - OVER WRITE OFF - Recording will stop when SD card reaches full capacity. FUNCTION CAPTURE MODE Select the recording mode when motion triggered. SNAP 1 JPG: Capture a single JPG photo when motion detect function is triggered.
- Page 10 Video recording -Press “REC” to start recording and press “REC” again to stop recording. -Please stop recording before pressing "MENU" to enter System setup menu. -On Live Display , press left/right/down to enter Playback menu. Then, press up/ down to change page and press left/ right to select a file. After the file selected: -Press “ENTER”...
