Mark Fitness XM-7630 Owner's Manual

Dumbbell bench
Hide thumbs

Advertisement

Quick Links

Download this manual
XM-7630
ADJUSTABLE
DUMBBELL BENCH
Owner's Manual
8/09

Advertisement

loading

Summary of Contents for Mark Fitness XM-7630

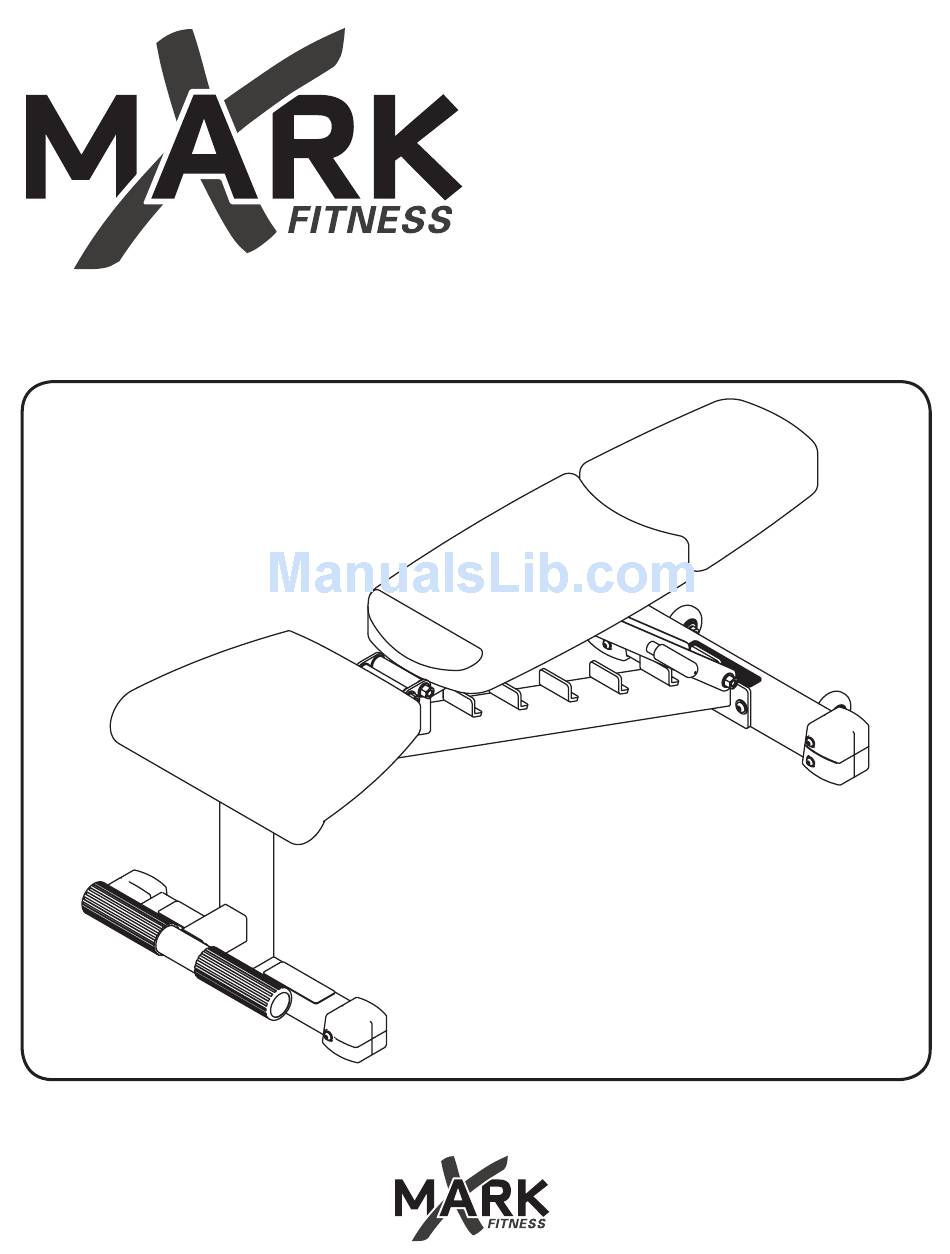

  • Page 1 XM-7630 ADJUSTABLE DUMBBELL BENCH Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View...

  • Page 3: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 4: Before You Start

    Visit www.xmarkfitness.com for warranty information QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-7630 When calling please have the following product information available: Model Name : Date Mfg.: Serial # Model Name Decal Location...

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 1 Attach Main Frame (#1) to Shaped Base (#3) using: • two M10*25 Button Head Cap Screws (#29) • two M12 Nylon lock Nuts (#37) •...
  • Page 7 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 2 Attach Frame Seat Pad Support (#4) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#26) • one M12 Nylon lock Nut (#36) • two Φ13*Φ26*2 Flat Washers (#33)
  • Page 8 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 3 Attach Frame Back Pad Support (#5) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#26) • one M12 Nylon Lock Nut (#36) • two Φ13*Φ26*2 Flat Washers (#33) Attach Frame Adjustable Back Pad (#6) to Frame Back Pad Support (#5) using: •...
  • Page 9 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 4 Attach Upper Back Pad (#8) and Lower Back Pad (#9) to Frame Back Pad Support (#5) using: • four M10*70 Button Head Cap Screws (#28) • four Φ11*Φ23*2 Flat Washers (#34) Attach Seat Pad (#10) to Frame Seat Pad Support (#4) using: •...

  • Page 10: Parts List

    Parts List XM-7630 Parts List Ref # Part # Description P00701 Main Frame P00247 Rear Base P00702 Shaped Base P00703 Frame Seat Pad Support P00047 Frame Back Pad Support P00645 Frame Adjustable Back Pad P00413 Nylon Spacer P00048 Upper Back Pad...

  • Page 11: Exploded View

    Exploded View...
  • Page 12 Customer Service: 1-800-719-4605...
