Summary of Contents for Amina ALF120

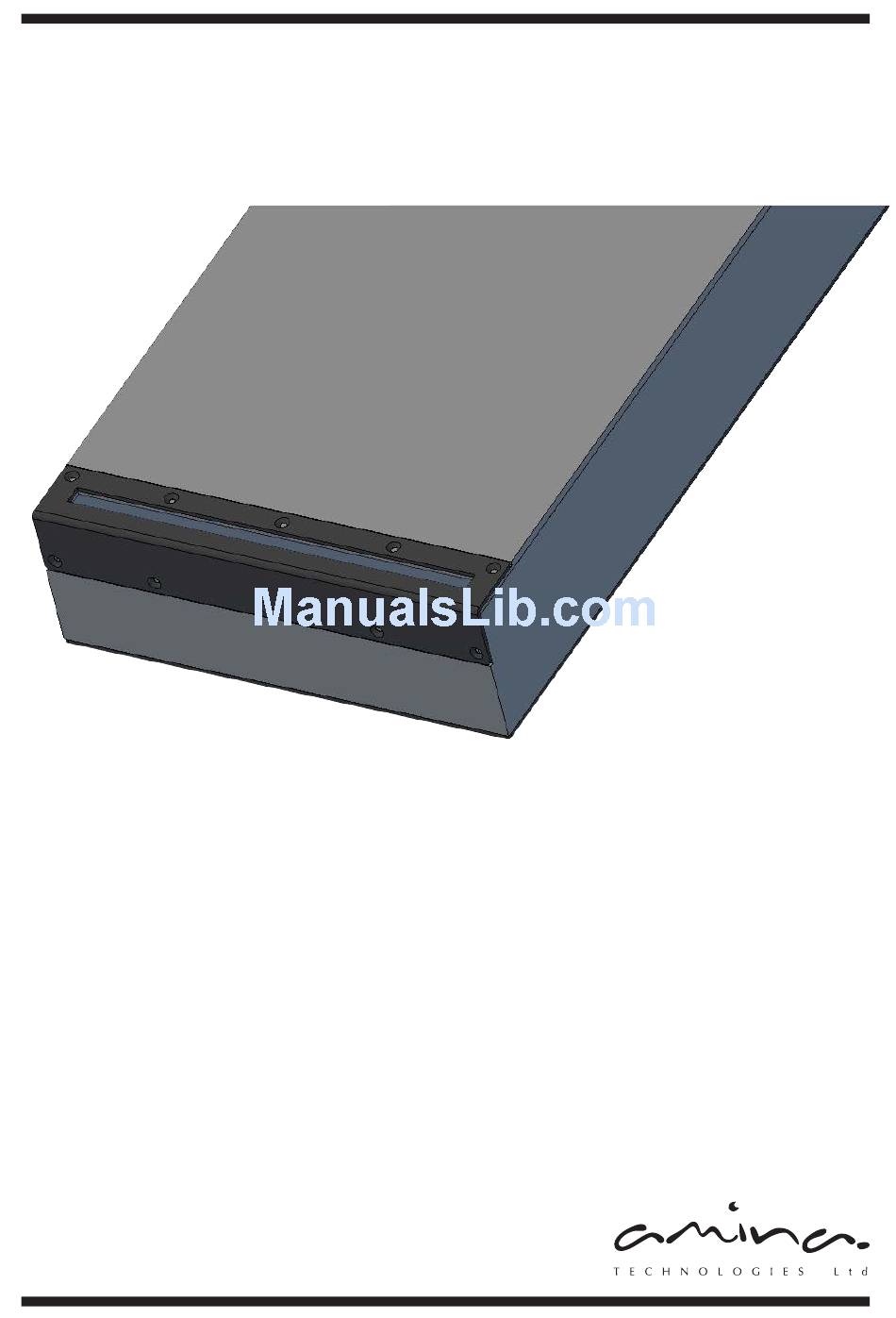

- Page 1 User guide ALF120 Subwoofer...
-
Page 2: Table Of Contents
Applications with in-wall speakers ..3 Preparing the ALF120 ........7 Applications with free-standing Connecting the ALF120.........7 speakers ...............3 Fitting the ALF120 into the wall ....8 Choosing an amplifier ........3 Testing the ALF120 ......... 8 Unpacking .............. 4 Making good the wall ........9 Contents .............. -
Page 3: Caution
For applications with both The ALF120 is a large item. Two people in-wall and free-standing speakers, the are recommended to handle the ALF120 ALF120 must be driven by an amplifier during installation. -
Page 4: Unpacking
Unpacking Contents Unpack the unit. The carton should contain: • ALF120 subwoofer Retain this User Guide. If you pass the unit on to a third party make sure you • 48 x felt pads pass on the User Guide. •... -
Page 5: Outlet Port
Outlet port The bass sound from the ALF120 exits through the outlet port slot at the base of the front of the cabinet. The outlet port is placed in this position to allow discreet in-wall installation. The slot in the wall that aligns with the outlet port is positioned low down, close to the floor. -
Page 6: In-Wall Installation
In-wall locations there may be difficulties making the The ALF120 can be mounted in- ALF120 fit or making good the wall. If wall, providing that the stud wall is the cavity is too large and the ALF120 constructed from 5” timber which gives... -
Page 7: Preparing The Alf120
In-wall installation Preparing the ALF120 Connecting the ALF120 A pack of felt pads are supplied with Once the pads are fitted the ALF120 is the ALF120. These must be fitted to the ready to be connected. ALF120 when wall-mounted to reduce •... -
Page 8: Fitting The Alf120 Into The Wall
CAUTION! The ALF120 must only be If there are any problems w ith the fit tested with a DSP equipped amplifier of the ALF120 in the cavity, now is the such as the Amina A100Q that can be time to resolve them. -
Page 9: Making Good The Wall
The wall may be a new build or you could gasket in the position shown at the have opened a cavity in an existing wall base of the ALF120. to install the ALF120. In either case it is now necessary to build/re-build the wall to complete the installation. •... -
Page 10: Cutting The Outlet Slot
ALF120. 18mm Stud height • Check that the slot aligns with the Gasket opening at the base of the ALF120. • The wall can now be made good and plastered. 14mm 15mm 16mm Port Plate... -
Page 11: Free-Standing
Free-standing Vertically Horizontally In some rooms it may be possible to The ALF120 is also suitable for horizontal stand the ALF120 vertically behind use, laid on its back underneath furniture. furniture. If you are considering this If you are considering this arrangement,... -
Page 12: Amplifier
ALF120. Phase When setting up any a speaker system that includes the ALF120, it is advisable to experiment with connecting the ALF120 in reverse phase with respect to the other system speakers. -
Page 13: Connection Schematic
A100Q amplifier to drive the complete system. NOTE: The ALF120 must be driven by either an A100Q amplifier or an alternative DSP* amplifier with DSP program provided by Amina technical. The use of other amplifiers or DSP programs may result in damage to the ALF120. -
Page 14: Troubleshooting
** Quarter space (Pi) boundary loading. Warranty The ALF120 is designed to operate reliably for many years. Correctly installed and in accordance with these instructions, Amina warranties the ALF120 against defective materials and workmanship for a period of one year. - Page 15 Amina Technologies Ltd Cirrus House, Glebe Road Huntingdon, Cambs, PE29 7DL England T: +44 1480 354390 W: www.amina.co.uk / E: inspired@amina.co.uk Copyright 2015 ALF120 V1.0...
