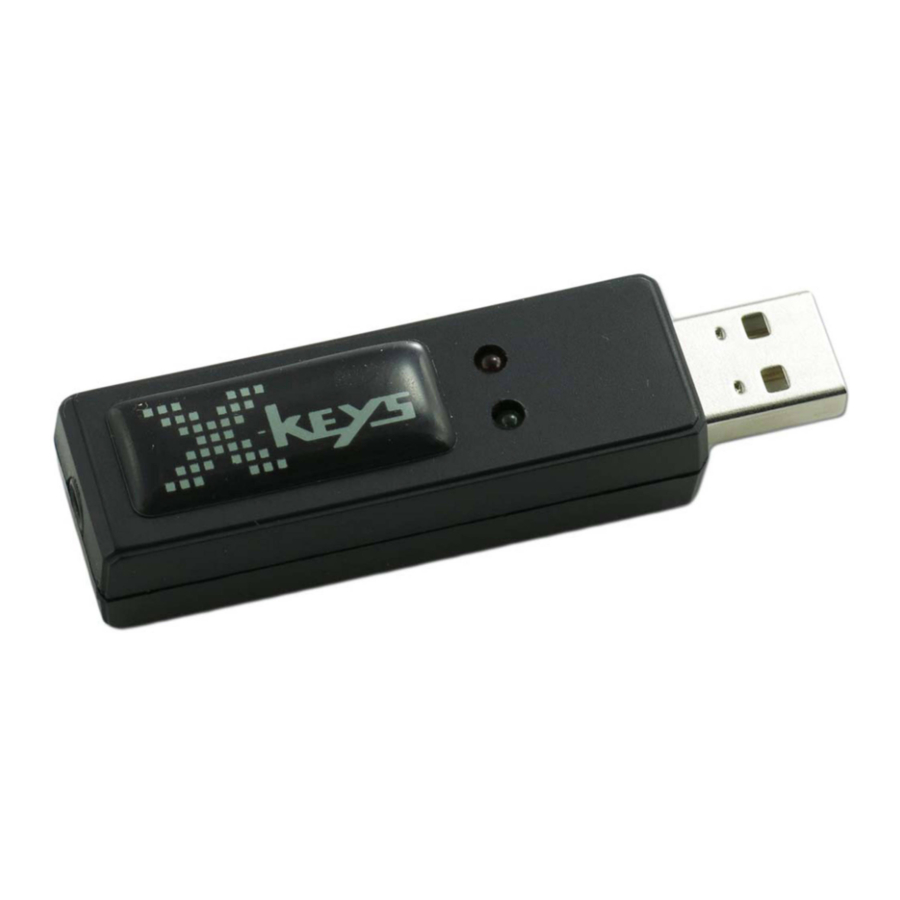

X-keys XK-1283-UJS3-R Product Manual

Download this manual

Part Number XK-1283-UJS3-R

3 Switch Ports

Made, Sold, and Supported in the USA

From P.I Engineering,

USA:

www.xkeys.com

UK:

www.keyboardspecialists.co.uk

Box Contents

This package contains:

1- X-keys Switch Interface

1- Product Manual

Quick Start for Windows

Download and install MacroWorks 3.1 (MW3) from:

http://xkeys.com/PISupport/SoftwareMacroWorks.php.

Plug in the X-keys Switch Interface and wait for Windows to recognize it.

MW3.1 will display an icon in your Windows Taskbar. Click on the icon and

select the Switch Interface.

Press any switch connected to the Switch Interface (or double-click on the

port image) to begin recording a macro.

Type keystrokes or select text, shortcut, or function. Multiple lines of

keystrokes, text, shortcuts, and functions may be entered on a single switch.

Press the switch again (or click Save) to complete programming.

When finished, close the programming window.

To quickly learn how to use MW3.1 watch the brief tutorials on our website.

Consult the MW3.1 help file for complete instructions and tips on programming

and using your X-keys.

NOTE: Mouse and joystick commands are found in the Functions menu.

Mac Users

Install ControllerMate for X-keys from the Apple page in the Software section

of our website (a free download).

ControllerMate for X-keys is published by OrderedBytes in partnership with P.I.

Engineering. For full programming instructions and support, please visit

www.orderedbytes.com/controllermate/.

USB 3 Switch Interface

Product Manual

The No Slogan Company

Page 1 Quick Start for Windows Download and install MacroWorks 3.1 (MW3) from: http://xkeys.com/PISupport/SoftwareMacroWorks.php. Plug in the X-keys Switch Interface and wait for Windows to recognize it. MW3.1 will display an icon in your Windows Taskbar. Click on the icon and select the Switch Interface.
Page 2 Hardware Mode Programming The X-keys XK-3 has an internal memory for storing hardware macros like keystrokes, mouse actions, game controller (joystick) or multi-media commands. To program these macros, use MacroWorks 3.1 in “Hardware Resident Mode.” (under the Mode menu). Once programmed, the XK-3 will send macros to any computer or USB enabled device with no software installation required.
Page 3 X-keys XK-12 Jog & Shuttle – 12 keys with jog & shuttle X-keys XK-3 Foot Pedal – three programmable pedals X-keys XK-4/XK-8/XK-16 Stick – a single row of 4, 8, or 16 keys X-keys XK-68 Joystick - 68 keys with a precision joystick X-keys XK-68 Jog &...
Page 4: Limited Warranty
Under this warranty, P.I. Engineering will, at its sole option, repair or replace any X-keys product which is defective, provided that you are responsible for (i) the cost of transportation of the product to P.I. Engineering or its designated service facility, and (ii) any loss or damage to the product resulting from such transportation.
