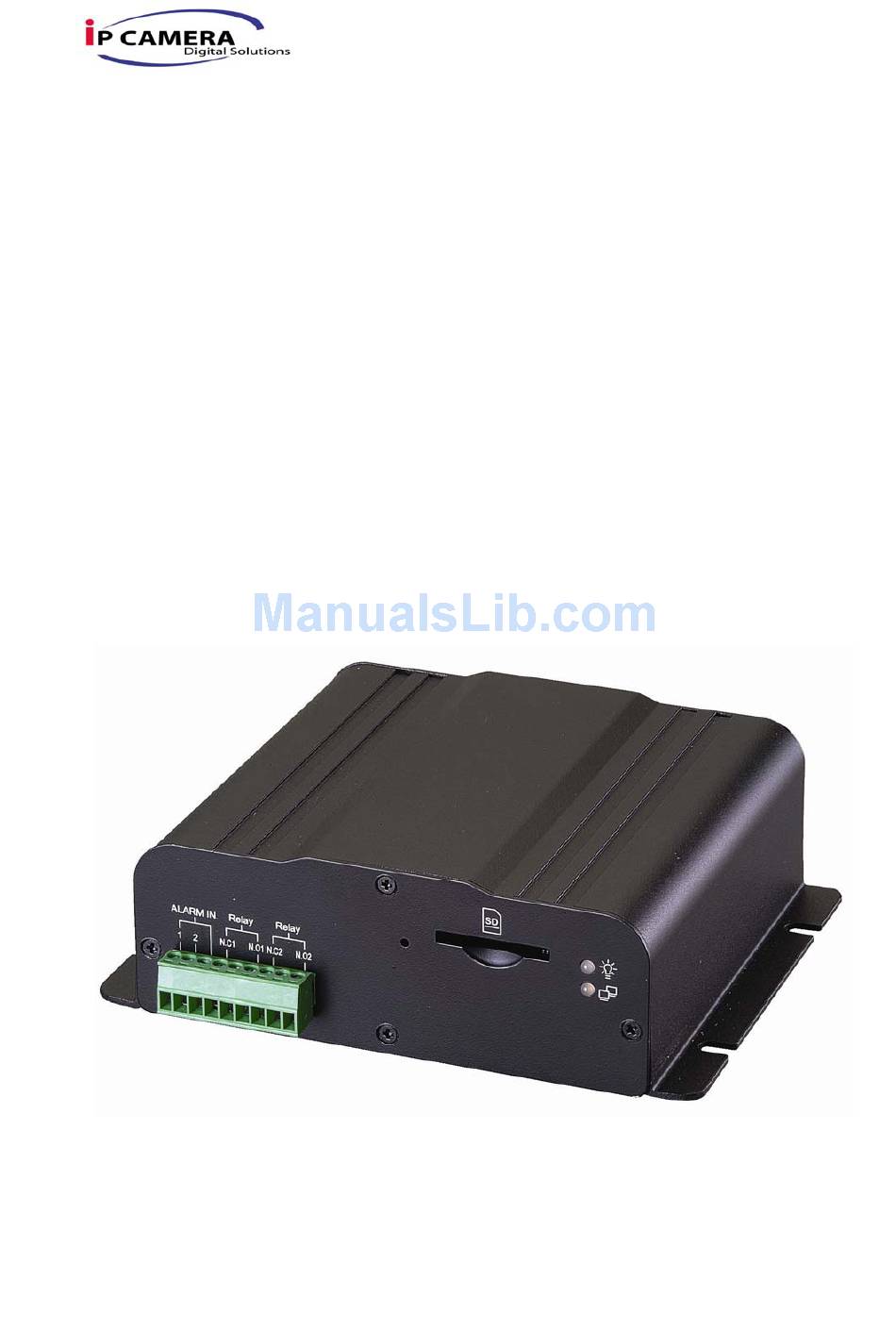

Page 1 User Manual IPw-TX264 1Ch Video Server 1/42...
Page 2: Product Specifications
I. Preface Video Server is a 1 channel video server with the web server built in. User views real-time video via IE browser. Video Server supports H.264/ MPEG-4 (3GPP Only)/ JPEG video compression which provides smooth and high video quality. The video can be stored in the SD card, and playback remotely.
Page 3 Power Over Ethernet YES (optional) Power Consumption DC 12V, 350mA, 4W Dimensions 134mm (W) x 42mm (L) x 107mm (D) Network Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP Wireless (Optional) Wireless 802.11b/g Security...
Page 4 Delete files Web browsing requirement Windows 2000, XP, 2003, Microsoft IE 6.0 or above Hardware Suggested Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB 6/42...
Page 5: Product Installation
III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 7/42...
Page 6: Hardware Installation
B. Hardware Installation B-1: Hardware Connection Connect power adaptor Connect Video Server to PC or network with Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for Video Server”. B-2: I/O Control Instruction I/O terminal connector –...
Page 7 Digital Input Alarm Input 1. GND (Ground) : Initial state is LOW 2. Alarm : Max. 50mA, 12VDC Relay Output 1. COM: (Common) 2. N.O. (Normally Open): Max. 1A, 24VDC or 0.5A, 125VAC ALARM IN ALARM Relay Out N.O. B-2 Relay Connection: Digital Input connection Door/Window Contacts...
Page 8 Relay Output Connection ALARM N.O. C. IP Assignment Use the software, “IP Installer” to assign the IP address of Video Server. The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii.
Page 9 IP Installer configuration： vii. IP Installer will search all IP Devices connected on Lan. The user can click “Search Device” to search again. viii. Click the Video Server listed on the left side. The network configuration of this Video Server will show on the right side. You may change the “name”...
Page 10 PC IP address: 192.168.1.110 Different Subnets: Video Server IP address: 192.168.2.210 PC IP address: 192.168.1.110 To Change PC IP address: Control Panel Network Connections Local Area Connection Properties Internet Protocol (TCP/IP) Properties Please make sure your Video Server and PC have the same Subnet. If not, please change Video Server subnet or PC IP subnet accordingly.
Page 11: Install Activex Control
Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options…...
Page 12 When popup the following dialogue box, click “Yes”. 14/42...
Page 13: Live Video
IV. Live Video Start a IE browser, type the IP address of the Video Server in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the Video Server。The following program interface shows.
Page 14 ：Get into the administration page ：Video Snapshot Shows how many people connect to this Video Server Show system time, video resolution, and video refreshing rate Video Server supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is Video Server side.
Page 15 Snapshot：Save a JPEG picture Record Start：Record the video in the local PC. It will ask you where to save the video. To stop recording, right-click the mouse again. Select “Record Stop”. The video format is AVI. Use Microsoft Media Player to play the recorded file. Mute：Turn of the audio.
Page 16: Video Server Configuration
V. Video Server Configuration Click to get into the administration page. Click to back to the live video page. 18/42...
Page 17 A.System i、 System Information Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Video Server name. This name will show on the IP Installer. Select Language：There are English, Traditional Chinese, and Simple Chinese to select.
Page 18 “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. ii、 User Management Video Server supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this Video Server Add user：...
Page 19 Click “edit” or “delete” to modify the user. 21/42...
Page 20 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all settings and restore defaults system. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.
Page 21 B.Network i、 IP Setting Video Server supports DHCP and static IP. DHCP：Using DHCP, IP Vandal Dome will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
Page 22 UPnP This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP...
Page 23 ii、 PPPoE： Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
Page 24 Set up the IP refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended. Camddns service： Please enable this service Key-in user name IP Schedule update is default at 5 minutes Click “Apply”.
Page 25 iv、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks： scan all wireless services.
Page 26 WEP： Authentication：There are Open System and Shared Keys, it is based on different encryptions. This has to be the same as the Router’s setting. Encryption：There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. Key Type：There are HEX and ASCII.
Page 27 C.A/V Setting i、 Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. ii、...
Page 28 Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second.
Page 29 – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~4Mbps – Increase CBR to increase the picture qulity; vise versa VBR：1(Low)~10(High) –...
Page 30 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Format：H.264 or JPEG RTSP Path: RTSP output connecting route Streaming 2 Advanced Mode：...
Page 31 It means "Group of Pictures". The higher the GOP is, the better the quality is. Video Format：H.264 or JPEG RTSP Path: RTSP output name 3GPP Streaming Setting mode: 3GPP default value is Resolution=176x144， 5FPS，Format=MPEG4 Enable or Disable 3GPP Streaming 3GPP: 3GPP output name iii、...
Page 32 From local PC to Video Server, check “chatting” in the browsing page (You will need a mic to send audio from local PC to IP Camera) The Audio will not be smooth when enable SD card recording function simultaneously. 34/42...
Page 33 Setting”. Using mouse to drag and draw the area. The same operation for area 2 and 3. Record File Setting: IP CAMERA allows 3 different types of recording file to change its record size. When motion/alarm is triggered, there are 3 different types of...
Page 34 record mode. AVI File (With Record File Setting ) Multi-JPEG (With Record File Setting), only with JPEG compression format. Single JPEG (Single File with Interval Setting) Record Time Setting： Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered.
Page 35 iii、 I/O Setting Video Server supports 2 input/ 2 Relay output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card. iv、...
Page 36 v、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. vi、 SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely.
Page 37 The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del. When the SD card is full, it will remove the oldest video automatically. 39/42...
Page 38: Network Configuration
VI. Network Configuration i、 Configuration 1： Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only Video Server connects to the internet For fixed real IP, set up the IP into Video Server. For dynamic IP, start PPPoE.
Page 39 iii、 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP Video Server and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. 41/42...
Page 40: Factory Default
VII. Factory Default i、 To recover the default IP address and password, please follow the following steps. ii、 Remove power and press and hold the button in the back of Video Server. iii、 Power on the Video Server. Don’t release the button during the system booting.
