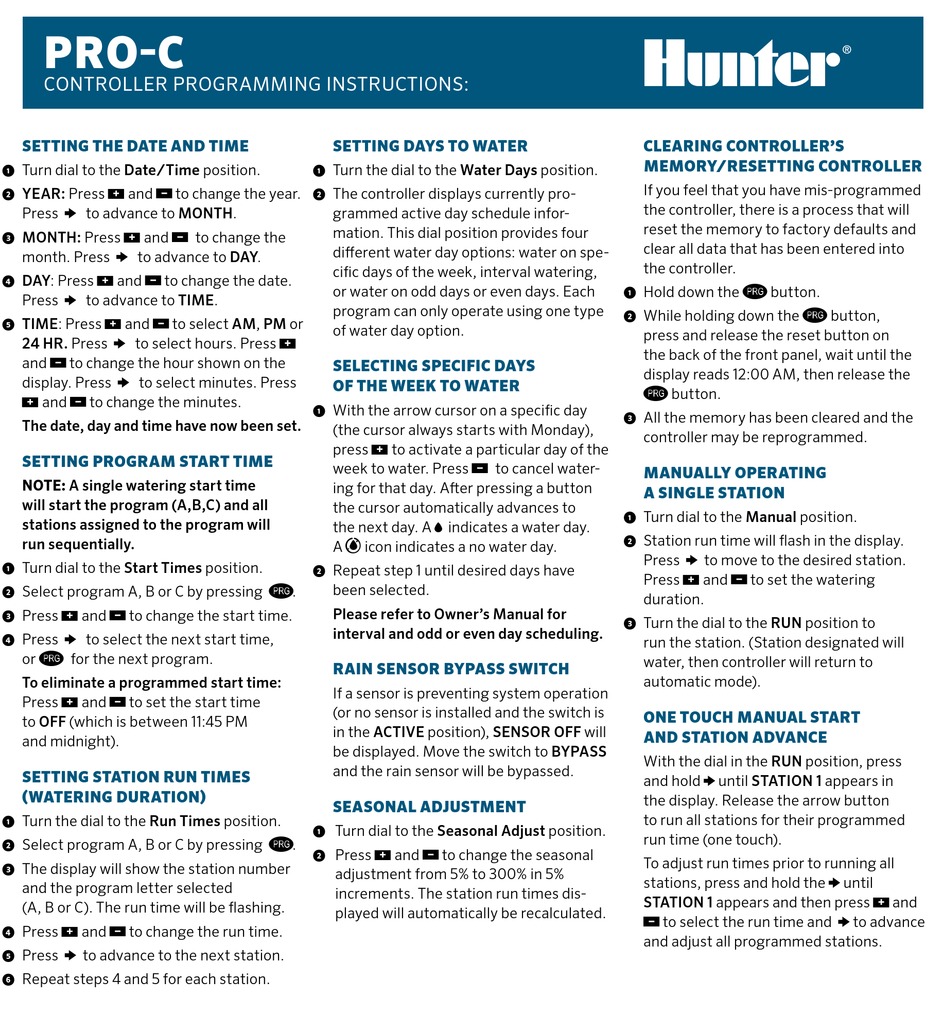

Hunter Pro-C Series Programming Instructions

Pro-c
Controller Programming instruCtions:

Setting the Date anD time

Turn dial to the Date/Time position.
①
YEAR: Press j and k to change the year.
②
Press i to advance to MONTH.
MONTH: Press j and k to change the
③
month. Press i to advance to DAY.
DAY: Press j and k to change the date.
④
Press i to advance to TIME.
TIME: Press j and k to select AM, PM or
⑤
24 HR. Press i to select hours. Press j
and k to change the hour shown on the
display. Press i to select minutes. Press
j and k to change the minutes.
The date, day and time have now been set.
Setting Program Start time
NOTE: A single watering start time
will start the program (A,B,C) and all
stations assigned to the program will
run sequentially.
Turn dial to the Start Times position.
①
Select program A, B or C by pressing
②
Press j and k to change the start time.
③
Press i to select the next start time,
④
or n for the next program.
To eliminate a programmed start time:
Press j and k to set the start time
to OFF (which is between 11:45 PM
and midnight).
Setting Station run timeS
(watering Duration)
Turn the dial to the Run Times position.
①
Select program A, B or C by pressing
②
The display will show the station number
③
and the program letter selected
(A, B or C). The run time will be flashing.
Press j and k to change the run time.
④
Press i to advance to the next station.
⑤
Repeat steps 4 and 5 for each station.
➏
Setting DayS to water
Turn the dial to the Water Days position.
①
The controller displays curr ently pro-
②
grammed active day schedule infor-
mation. This dial position provides four
different water day options: water on spe-
cific days of the week, interval watering,
or water on odd days or even days. Each
program can only operate using one type
of water day option.
Selecting SPecific DayS
of the week to water
With the arrow cursor on a specific day
①
(the cursor always starts with Monday),
press j to activate a particular day of the
week to water. Press k to cancel water-
ing for that day. After pressing a button
the cursor automatically advances to
V
the next day. A
W
A icon indicates a no water day.
Repeat step 1 until desired days have
②
been selected.
n .
Please refer to Owner's Manual for
interval and odd or even day scheduling.
rain SenSor ByPaSS Switch
If a sensor is preventing system operation
(or no sensor is installed and the switch is
in the ACTIVE position), SENSOR OFF will
be displayed. Move the switch to BYPASS
and the rain sensor will be bypassed.
SeaSonal aDjuStment
Turn dial to the Seasonal Adjust position.
①
n .
Press j and k to change the seasonal
②
adjustment from 5% to 300% in 5%
increments. The station run times dis-
played will automatically be recalculated.
①
②
③
①
indicates a water day.
②
③
clearing controller'S
memory/reSetting controller
If you feel that you have mis-programmed
the controller, there is a process that will
reset the memory to factory defaults and
clear all data that has been entered into
the controller.
n
Hold down the button.
n
While holding down the
press and release the reset button on
the back of the front panel, wait until the
display reads 12:00 AM, then release the
n button.
All the memory has been cleared and the
controller may be reprogrammed.
manually oPerating
a Single Station
Turn dial to the Manual position.
Station run time will flash in the display.
Press i to move to the desired station.
Press j and k to set the watering
duration.
Turn the dial to the RUN position to
run the station. (Station designated will
water, then controller will return to
automatic mode).
one touch manual Start
anD Station aDvance
With the dial in the RUN position, press
and hold i until STATION 1 appears in
the display. Release the arrow button
to run all stations for their programmed
run time (one touch).
To adjust run times prior to running all
stations, press and hold the i until
STATION 1 appears and then press j and
k to select the run time and i to advance
and adjust all programmed stations.
