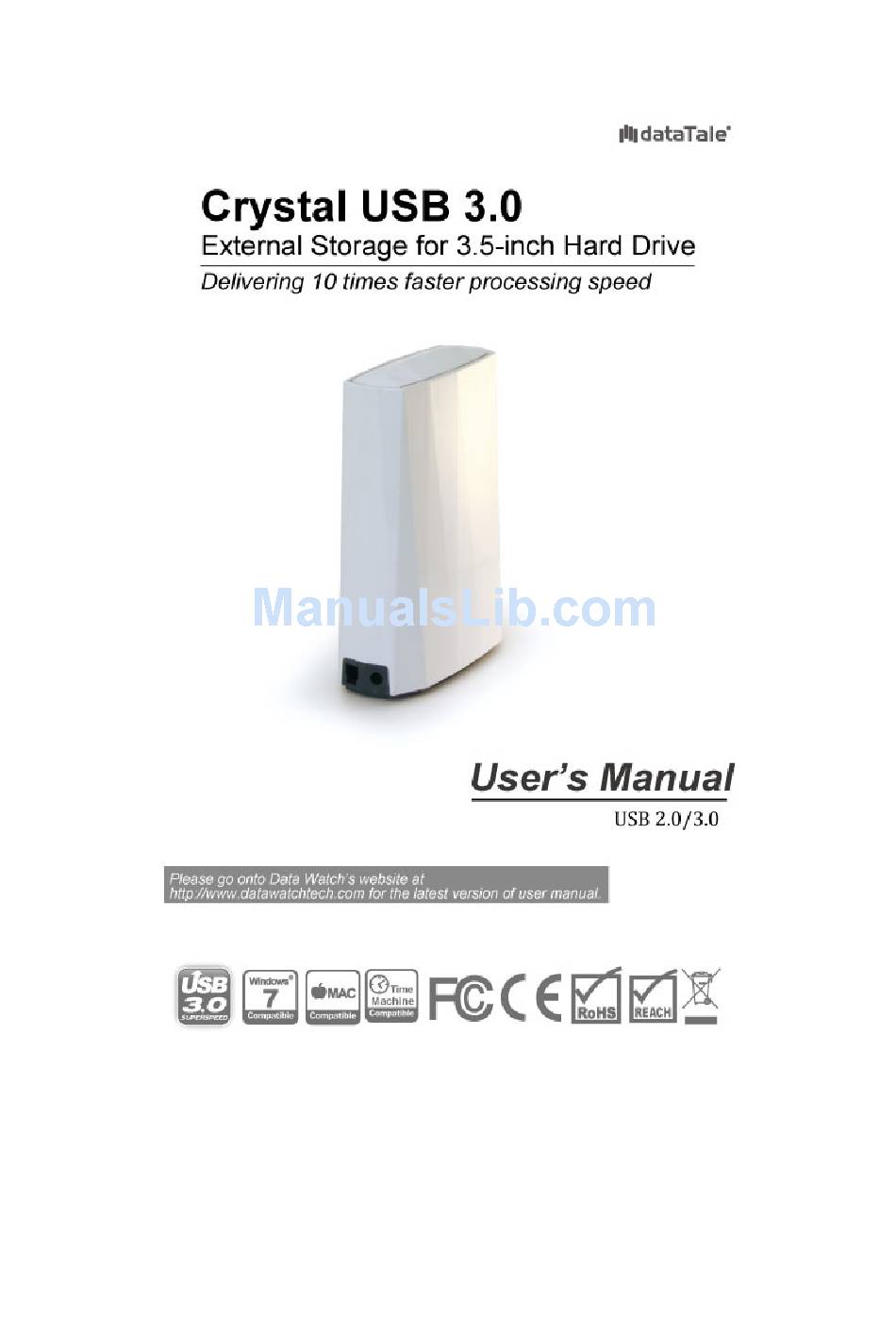

DataTale Crystal USB 3.0 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rev.01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crystal USB 3.0 and is the answer not in the manual?

Questions and answers

Related Manuals for DataTale Crystal USB 3.0

Summary of Contents for DataTale Crystal USB 3.0

  • Page 1 Rev.01...

  • Page 2: Table Of Contents

    Table of Contents  GENERAL INFORMATION ..................3 Copyright................................3 Notices and Classifications ........................... 3 Contact Us ................................3 PRECAUTIONS FOR THE ENCLOSURE............... 4 INTRODUCTION ...................... 5 Features ................................5 SYSTEM REQUIREMENT ..................6 PC....................................6 MAC..................................... 6 Optional Accessories ............................6 PACKAGE CONTENTS....................6 HU­M10J ................................... 6 SYSTEM UNIT VIEWS....................7 Rear/Front View ............................... 7 Bottom View ...............................

  • Page 3: General Information

    GENERAL INFORMATION Copyright Copyright @ 2011 Data Watch Technologies Co., Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Data Watch Technologies Co., Ltd or ONNTO Corporation.

  • Page 4: Precautions For The Enclosure

    PRECAUTIONS FOR THE ENCLOSURE ♦ The main circuit board of the Enclosure is susceptible to static electricity. Proper grounding is required to prevent electrical damage to the Enclosure or other connected devices, including the host computer. Always place the Enclosure on a smooth surface and avoid all dramatic movement, vibration and percussion.

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing the Crystal USB 3.0 3.5-inch HDD Enclosure. The Crystal USB 3.0 3.5-inch HDD Enclosure provides stylish yet ozone-friendly housing environment for any 3.5” SATA hard drive, with the new SuperSpeed USB 3.0 technology. The installation instructions in this manual apply to the following models: HU-M10J (USB 2.0/3.0 combination)

  • Page 6: System Requirement

    SYSTEM REQUIREMENT To use the Crystal USB 3.0 3.5-inch HDD Enclosure, the minimum system configuration in the host computer require the following: 500MHz or faster CPU 256MB or higher RAM Microsoft Windows XP, 2003, Vista, 2008, 7 or higher One available USB 2.0 or USB 3.0 port...

  • Page 7: System Unit Views

    SYSTEM UNIT VIEWS Rear/Front View The hidden LED will indicate the current operating status by shining downward onto the surface. Bottom View Inside View...

  • Page 8: Assembling The Enclosure

    ASSEMBLING THE ENCLOSURE To begin using the Crystal USB 3.0 3.5-inch HDD Enclosure, simply install a 3.5” SATA hard drive into the Enclosure by completing the following steps: Partitioning and formatting operations will erase all existing data on the hard drive. Remember to backup all existing data from the hard drive before performing any partitioning or formatting operations to prevent loss of data.
  • Page 9 Once the Housing Case is removed, the PCBA board (Printed Circuit Board) and two (2) HDD Holders should be already securely installed onto the Bottom Base. See Inside View for reference. Also, find the two (2) HDD Screws included inside the package. 3.

  • Page 10: Putting On & Switching Power Plug On Ac/Dc Adapter

    PUTTING ON & SWITCHING POWER PLUG ON AC/DC ADAPTER 1. Find the AC/DC Adapter in the package. The package may include different types of plug heads vary by region. 2. Press the click release and slide the existing Power Plug from the AC/DC Adapter.

  • Page 11: Connecting The Enclosure Unit To Acomputer

    CONNECTING THE ENCLOSURE UNIT TO A COMPUTER Complete the following steps to connect the Enclosure Unit to a host computer: The Enclosure Unit should only be connected to a host computer via one interface at a time. Connection of the Enclosure Unit to a computer via two or more interfaces simultaneously is not recommended.

  • Page 12: Led Status

    LED STATUS LED COLOR STATUS BLUE POWER ON FLASHING BLUE DATA ACCESS SAFE REMOVAL OF THE ENCLOSURE Safe removal of the Enclosure Unit from the host controller is highly recommended. In order to safely remove your Enclosure Unit from the host controller, you would need to eject the device on your host controller system.

  • Page 13: Q&As

    Q&As Hard Drive Capacity My hard drive is at least 2TB or above, will the Enclosure be able to support the gigantic storage capacity? Yes, the Enclosure will be able to support any hard drive over 2TB size capacity. I would like to format my hard drives with the FAT (a.k.a. File Allocation Table) format, which can be read and written by both Mac and PC.

  • Page 15: Appendix: Specifications

    APPENDIX: SPECIFICATIONS Model Name HU-M10J Connector USB 2.0/3.0 x 1 3.5” SATA hard drive HDD Support USB 3.0: up to 5Gbits/s Data Transfer Speed USB 2.0: up to 480Mbits/s System Material Plastic casing Status Indicator Power On / Access Output: 12V/1.5A, Input: 100~240V Power Supply Universal AC/DC adapter Dimension...
