Summary of Contents for U Fly Quiet UFQ-A6

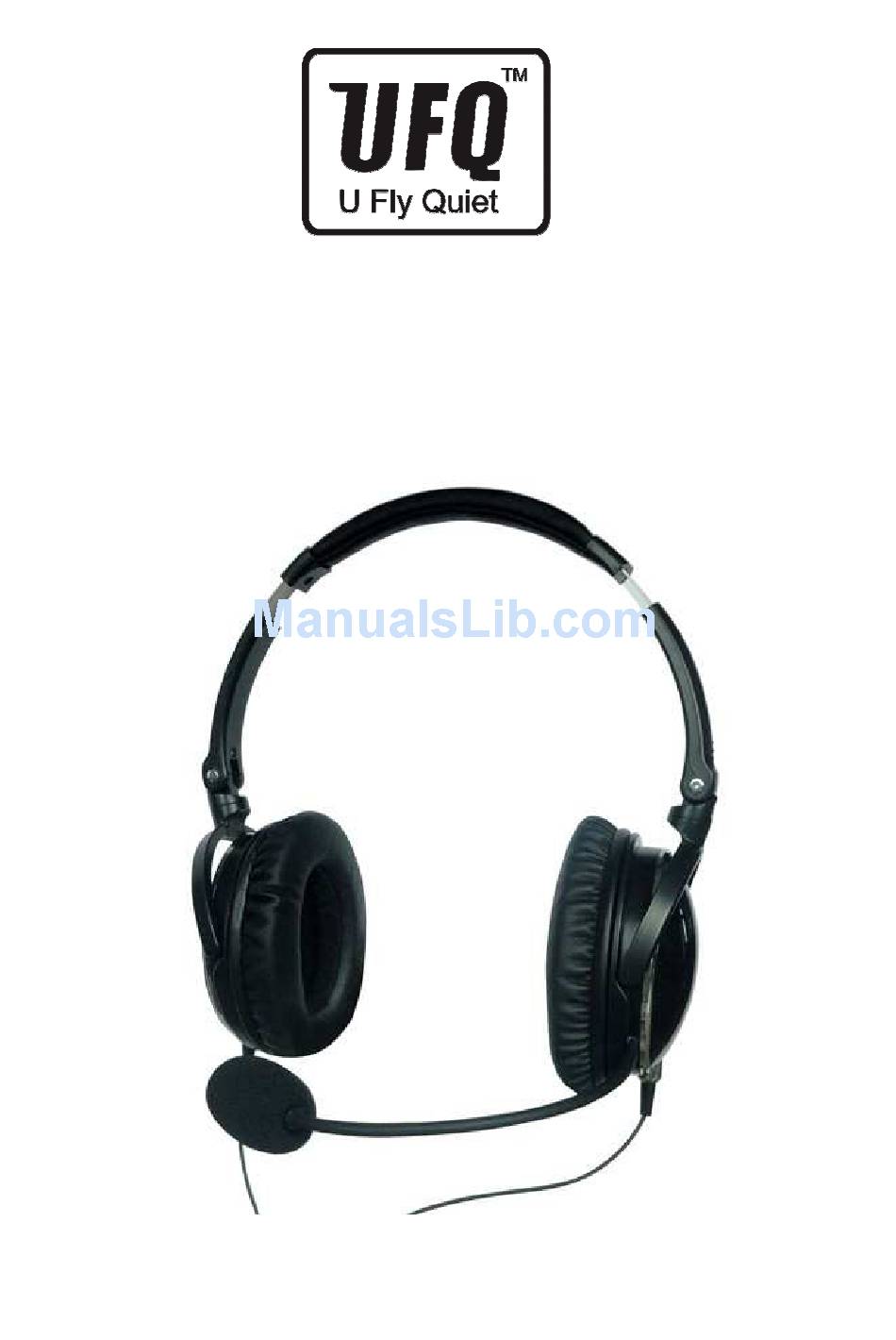

- Page 1 U Fly Quiet Aviation Headset UFQ-A6 Good bye noise! Enjoy clear communication & music!! ------------------------------------------------------------------ ------------------------------------------------------------------ - 1 -...
- Page 2 Contents of the UFQ-A6 package Carry case User manual Micro USB cable for battery charge Power adapter Auxiliary input/Cell phone link cable for iPhone and Samsun and ect on Features Advanced reverse noise canceling technology, reduce 90% background noise. Noise canceling special use 40mm drive, whole pieces forming corona diaphragm, for crystal clearly high quality voice.
-
Page 3: Getting Started
Fitting your headset Fitting your headset is the key to comfortable use and the superior Active Noise Reduction(ANR) of UFQ-A6. A solid seal around your entire ear and a symmetrical fit across the top of your head are necessary for you to experience peak performance from the ANR feature. - Page 4 Understanding Controls for UFQ-6A A. Clip which is easy on the Shirt or coat B. Charge Port C. Power ON/OFF switch D. Power indicator LED 1) Power on LED shows blue color 2) In charging LED shows red color 3) If power on LED shows nothing means the battery runs out then need to recharge the battery 4) While during use the blue color LED turn off also means the battery runs out, then ANR is not available,need to switch to OFF...
- Page 5 then headsets will still work as PNR. E. Auxiliary input jack Provides a wired input for cell phones and audio devices Link cable also included F. Panel volume controls Sliders adjust panel volume controls independently for each ear Also affect the volume of auxiliary devices H.Mono/Stereo switch ------------------------------------------------------------------ ------------------------------------------------------------------ - 5 -...
- Page 6 Using your UFQ A6 Headset To power UFQ A6 Headset,follow these steps 1) Put on the UFQ A6 Headset and adjust for proper fit and seal (see page 3) 2) Switch on the power, the LED shows blue color, you feel quieter suddenly 3) If necessary put the clip on your shirt or coat Matching Mono/Stereo Setting to an Audio Panel...
- Page 7 Connecting to iPhone or iPad other wired Auxiliary Devices Usually you just need one cable with cables with 2 4 poles male 3.5mm connectors is OK. See the picture Link cable Adapter Consider iPhone with different connections with other brands cellphone like Samsung,Nokia and ect on UFQ A6 also with an adapter included, use link cable and adapter then can work well.
- Page 8 General Battery power supply:3.7V Weight: 259g ( include ear seals and mic boom) Panel aircraft: 8-40VDC Headphone Transducer:40mm moving coil Frequency Resonse:20 Hz-20 kHz Nominal impedance @ 1 kHz Mono: 300 ohms Stereo: 600 ohms Microphone Transducer principle: Noise-canceling electret Frequency response: 200 Hz-6000 Hz Maximum SPL (Sound Pressure Level): 114 dB Terminating impedance: 220-2200 ohms...
- Page 9 U Fly Quiet (UFQ) Aviation Designed in U.S.A Made in China 5F,#459 yangguang RD, Song Jia Cao ,Yinzhou Ningbo,China 315175 sales@uflyquiet.com www.uflyquiet.com ------------------------------------------------------------------ ------------------------------------------------------------------ - 9 -...
