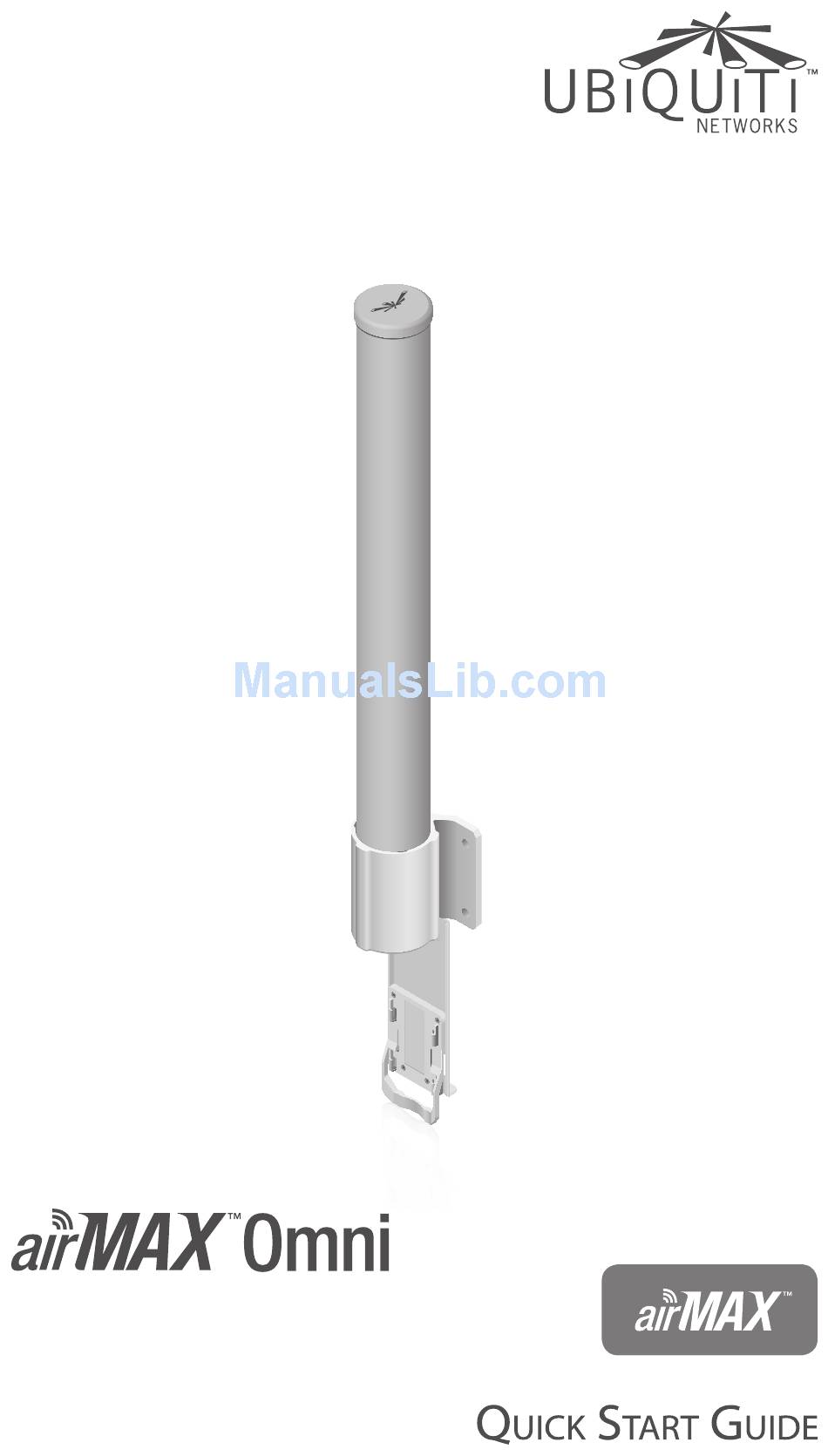

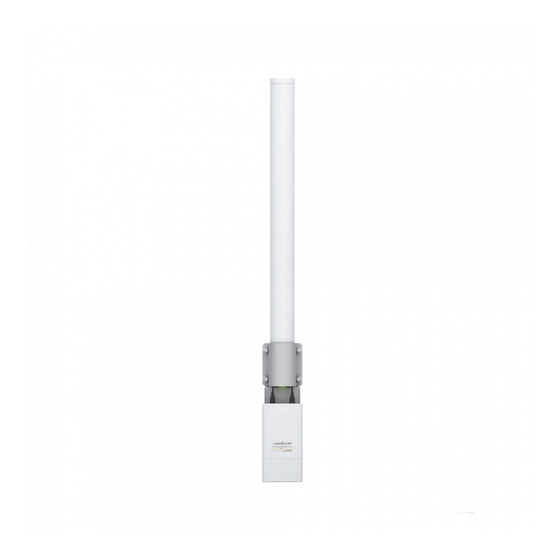

- Page 1 2.4 GHz 2x2 Dual Polarity MIMO Omni Antenna Model: AMO-2G10...
-
Page 2: Package Contents
Carriage Bolts (Qty. 2) (M8x120, Qty. 4) 2.4 GHz 2x2 Dual Polarity MIMO Omni Antenna Model: AMO-2G10 Serrated Flange Nuts RF Cables Quick Start Guide (M8, Qty. 4) (Qty. 2) Products may be different from pictures and are subject to change without notice. -
Page 3: Installation Requirements
Installation Requirements • RocketM2 (sold separately) • 13 mm wrench • Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. - Page 4 2. Attach the RocketM to the antenna. a. Align the mounting tabs on the back of the RocketM with the Rocket mounting bracket. b. Slide the RocketM down to lock it into place. 3. Attach the other ends of the RF Cables to the RF connectors on the antenna.
- Page 5 4. Insert the four Carriage Bolts into the main mounting bracket of the antenna.
- Page 6 5. Attach the antenna to the top of the pole. (If you attach the antenna to a lower point on the pole, then the pole will block part of the signal.) Note: The mounting assembly can accommodate a Ø 1.5" - 3.0" pole. a.
-
Page 7: Specifications
Specifications AMO-2G10 Dimensions 1012 x 122 x 105 mm Weight 2.1 kg (Mount Included) Frequency 2.35 - 2.55 GHz Gain 10 dBi Elevation Beamwidth 12° Electrical Downtilt 4° Max. VSWR 1.7:1 Wind Survivability 125 mph Wind Loading 22 lbf @ 125 mph... -
Page 8: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 9: Limited Warranty
Limited Warranty UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s) furnished hereunder (the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’... - Page 10 Returns No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 11: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF... - Page 12 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 13 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 14: Declaration Of Conformity
Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi [Czech] ustanoveními sm rnice 1999/5/ES. Dansk Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav [Danish] og øvrige relevante krav i direktiv 1999/5/EF. -
Page 15: Online Resources
Italiano Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. - Page 16 w w w . u b n t . c o m © 2012-2013 Ubiquiti Networks, Inc. All rights reserved. J060413—720-00044-01...
