Summary of Contents for techo-bloc MANCHESTER ELITE

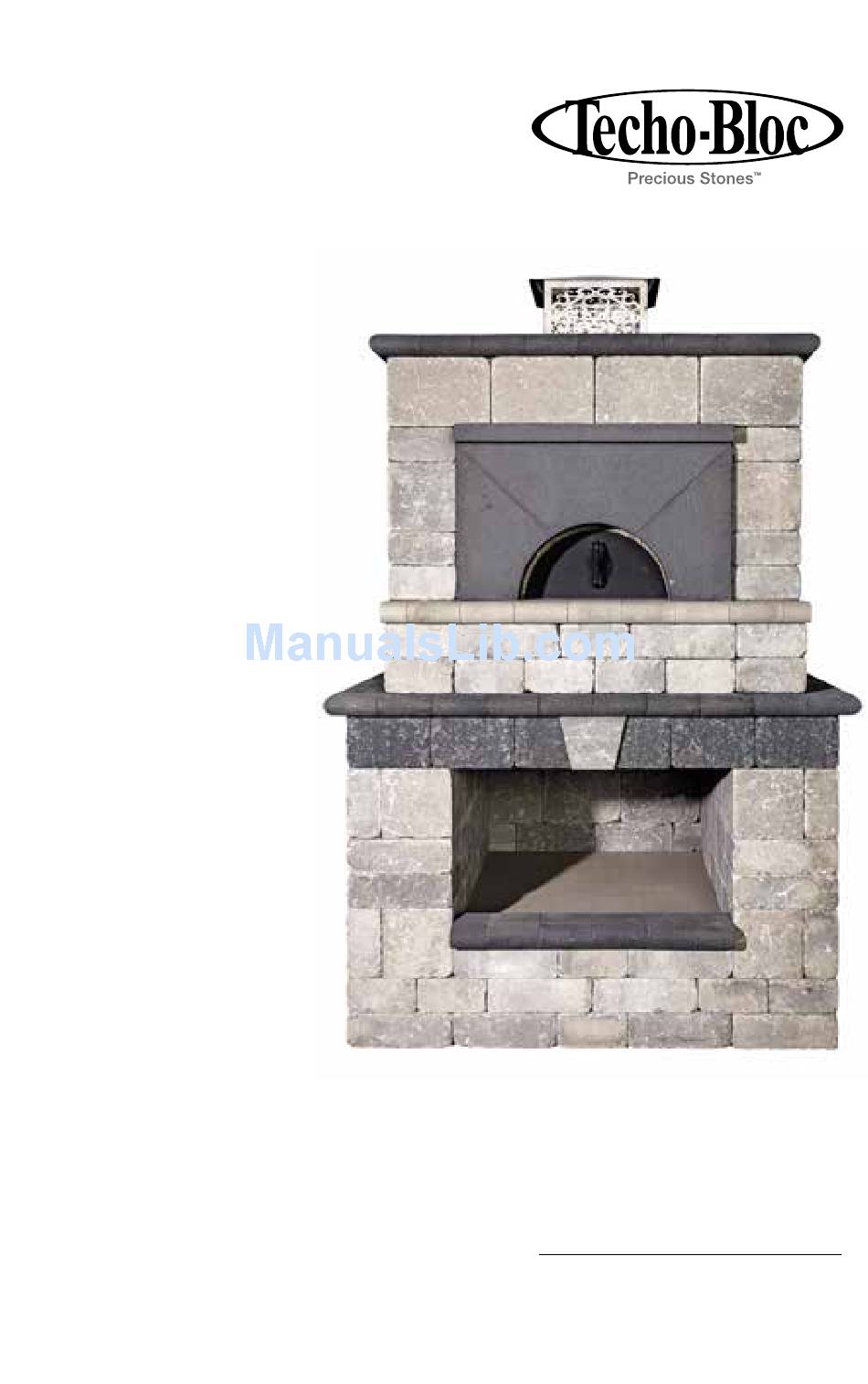

- Page 1 MANCHESTER ELITE PI ZZ A OV E N I NSTAL L AT I O N GU I D E A ND OWNE R ’ S M ANUAL...
-
Page 2: Table Of Contents
TABL E O F CONTENTS COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 OVERALL DIMENSIONS . -
Page 3: Components
Check with your municipality for regulations on the installation and use of an outdoor Pizza Oven. We also recommend that you contact your home insurance company and advise them of the acquisition of your new Techo-Bloc Pizza Oven. This Pizza Oven is for OUTDOOR USE ONLY. Check with your municipality for minimum clearance distances. -
Page 4: Overall Dimensions
OVERALL DIMENSIONS Below are the overall dimensions of the pizza oven . The height shown is the total height (including buried portion) . The pizza oven should be buried 4" below finished grade. FRONT ELEVATION RIGHT SIDE ELEVATION... -
Page 5: Concrete Pad Preparation
CONCRETE PAD PREPARATION The following drawings are NOT ENGINEERED DRAWINGS. They are provided as a general guidance for the consideration of the installer. Concrete pillars extending to frost line may be required as per local code. Check your local building codes before installing. -
Page 6: Installing Top Section
INSTALLING TOP SECTION Carefully insert the forklift forks in the openings of the top section . Lift the top section onto the bottom section . FILLER BLOCKS Place the filler blocks into the fork holes . Should you want to move the Pizza Oven in the future, do not glue the filler blocks. -
Page 7: Safety
SAFETY Working around an oven that can generate up to 800°F can be dangerous if proper clothing and tools are not used . Also, combustible materials in the vicinity of the oven may be at risk . WARNING: When working around a pizza oven, make sure that proper clothing is worn and proper tools are used. -
Page 8: Cooking
speed along with several other factors that will vary with each application . This adds character and gives an authentic old world appearance to your oven but the staining can easily be removed with a wire brush and water or by using a masonry cleaning solution for soot and smoke than can be purchased at most hardware stores, specialty fireplace retailers or on the internet . -
Page 9: Cleaning, Inspection And Maintenance
Keep the door in place and a cap on the chimney when not in use to protect the interior cooking chamber of the oven from exposure to moisture . WARRANTY For warranty details and exclusions on TECHO-BLOC PRODUCTS, please visit our website at: https://www.techo-bloc.com/contact-us/about-us/... - Page 10 R E D E F I N I N G L A N D S C A P E P R O D U C T S CANADA 5255, Albert-Millichamp street, St-Hubert, Québec J3Y 8Z8 USA. 852 Pennsylvania ave, Pen Argyl, PA 18072 Toll free: 1-877-832-4625 Fax : 450-656-1120 www.techo-bloc.com...
