Argosy HV675 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual

V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV675 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argosy HV675

Summary of Contents for Argosy HV675

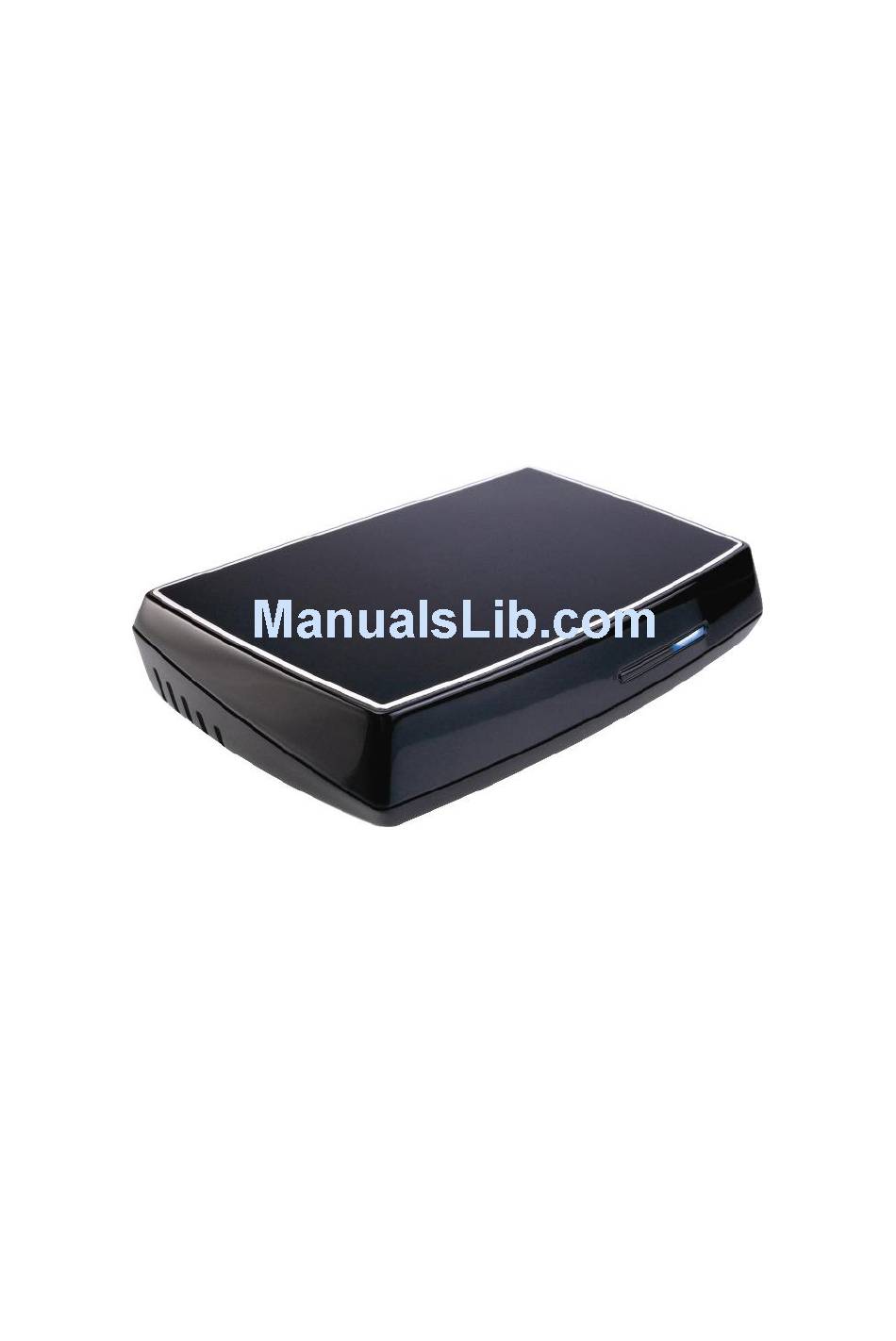

  • Page 1: User Manual

    User Manual V 1.0...

  • Page 3: Table Of Contents

    CONTENTS Introduction ................1 Features ....................1 System Requirements ................1 The Remote Control..............2 Using the Remote Control for the First Time..........2 Changing the Battery of the Remote Control ..........2 Buttons ....................3 Parts and Functions ..............4 Quick Start................5 USB Connection................6 Mounting the USB External Storage ............6 Partition of the USB External Storage............7 Media Files for Playback ................7 TV Connection................9...

  • Page 5: Introduction

    Introduction Introduction Features Plays back DVD Folder, VCD, MPEG1, MPEG2, DivX/Xvid(AVI) movie files, MP3, WAV music files, JPEG photo and graphic files. Supports both NTFS and FAT32 file system. Supports both NTSC and PAL TV systems. Supports video output up-scaling to 1080i. Supports HDMI and component video output.

  • Page 6: The Remote Control

    The Remote Control The Remote Control Using the Remote Control for the First Time For the first time use of the remote control, pull out the tab to enable the battery power of the remote control. Changing the Battery of the Remote Control If the battery becomes depleted, change the battery according to the following instructions: 1.

  • Page 7: Buttons

    The Remote Control Buttons Activate this device / Return to ○ STANDBY: Standby TV SYS Switch output TV system ○ SETUP: Enter Setup Menu ○ SOURCE: No function ○ AUDIO: Switch audio channels ○ SUBTITLE: Switch DVD / DivX subtitles ○...

  • Page 8: Parts And Functions

    Parts and Functions Parts and Functions Remote receiver : When using the remote, point the remote towards here. ○ Power and access Lights up: The power is on. ○ indicator (blue) : Blinking: Booting up/ Accessing data through PC connection. Power connector : Connect to the AC adapter.

  • Page 9: Quick Start

    Quick Start Quick Start Read before use. Do not operate electronics with wet hands. Do not operate this device in a bathroom. Do not bend cables in a sharp angle. Keep this device unreachable from children. Keep this device and its accessories away from heat sources. How do I use this device? Copy media files from your computer to a USB storage device, and then connect it to this device.

  • Page 10: Usb Connection

    USB Connection USB Connection Mounting the USB External Storage Compatibility This device supports FAT16/32, and NTFS file systems. This device supports USB external HDDs and USB Flash drives. This device does not supports USB Flash drives smaller than 512MB in capacity. This device does not support file system with Allocation Unit Size smaller than 4096 bytes.

  • Page 11: Partition Of The Usb External Storage

    USB Connection If a USB external storage is removed without Safely Remove processes, the “SURPRISE REMOVE” message will be shown on the screen. This device will automatically reboot in this situation. • Removing the USB device without the Safely Remove processes may cause system to hang and damage the device.
  • Page 12 USB Connection This device can play back the following media files: DVD movie files DivX/Xvid (DivX 3.11/4.x/5.x) movie files: The filename extensions are avi, divx, xvid DivX/Xvid subtitle files: The filename extensions are srt, sub, idx/sub, smi, psb, ass, ssa VCD files: The filename extension is dat MPEG1 / MPEG2 files: The filename extensions are mpg, mpe, mpeg, m2p, vob Audio and music files: The filename extensions are wav, mp3,...

  • Page 13: Tv Connection

    TV Connection TV Connection Connecting to AV Equipments HDMI Connection The HDMI connector can output both digital audio/video signals. Many HDTV sets and digital AV receivers support this type of connection. (HDMI cable not provided) To a TV: To an AV receiver: If the HDMI cable is disconnected in playback, this device will stop playback immediately.

  • Page 14: Power Connection

    TV Connection quality. You will have to connect the audio cable for audio output. You can also configure display ratio, progressive scan, and the 1080I/720P up-scaling output in SETUP MENU > VIDEO SETUP . Some TV sets are equipped with separate composite and component audio Note: inputs.
  • Page 15 TV Connection • When using the remote control, point the remote control towards the remote receiver. • During the remote control operation, the inhibit icon will appear on the screen when a button of non-available operation is pressed. • If the setting of the video output is incorrect, the TV screen will not display normally.

  • Page 16: Hdmi Cable Connection Behavior

    TV Connection HDMI Cable Connection Behavior Detail View (non-playback) In 480I / 480P / 576I / 576P component output settings, it automatically switches to 720P when a HDMI cable is connected. It switches back to previous setting when the HDMI cable is removed.

  • Page 17: Detail View

    TV Connection Detail View When this device is connected to a TV and activated for playback, all folders and media files will appear on the screen as the figure shown below. This mode is called “Detail View”. Folder name Item number/ Total items Selected item Item information...
  • Page 18 TV Connection Press • If a folder contains no recognizable media file, pressing the button will open that folder. Press Open a folder Press button to open the selected folder. Go up a folder Press STOP button or select to go back to the parental level folder.

  • Page 19: Thumbnail View

    TV Connection Thumbnail View To switch to the Thumbnail View, press the MENU button on the remote control. Thumbnail View is ideal of browsing photos. Folder name Item number/ Total items Selected item Items displayed as large icons. JPEG files are shown as thumbnails.
  • Page 20 TV Connection mode, and then press SETUP key to open SETUP MENU . Pause • Press button will pause the slideshow play. In the pause state, Slideshow press ZOOM button to enlarge the photo image in a recurring sequence; press ANGLE button to rotate the photo image counterclockwise.

  • Page 21: Playing Back Media Files

    Playing Back Media Files Playing Back Media Files About Media Files File Format Icon Description Folder Play A folder The parental folder This device introduces a convenient feature named “Folder Play”. You can play all media files contained in one folder by simply pressing the button on that folder icon.
  • Page 22 Playing Back Media Files selection of subtitles, chapters, and angles. DivX files A DivX /Xvid movie file. The filename extension can be avi, divx, or xvid. A DivX /Xvid subtitle file. The filename extension can be srt, sub/idx, ssa, ass, psb, sub, or smi. A video file (Thumbnail View).
  • Page 23 Playing Back Media Files This device can play both MP3 and WAV music files. To play these music files, select a file or a folder that contains these files, and then press the button. While the music is playing, the playback seek slider will be displayed on the screen. The title, performer, and the album information from the ID3 tag of an MP3 file will be displayed on the screen also.

  • Page 24: Using The Remote Control

    Playing Back Media Files Using the Remote Control The icons on top of table indicate the media files associated with each function. While playing back, you can enable the following operations: DVD Folder Plays the complete DVD movie with DVD menu. DVD Menu Press MENU button will open the DVD Main Menu.
  • Page 25 Playing Back Media Files Zoom in Pause Slideshow first, and then press ZOOM button to enlarge the image in a recurring sequence. If the image is larger than the screen, press to move it. • The ZOOM function will be disabled in 1080I/720P video output mode.

  • Page 26: Stop Playback

    Playing Back Media Files Language setting. You can adjust this setting in SETUP MENU > GENERAL SETUP > OSD LANGUAGE . • UTF-8 subtitles are not supported. • After pressing the SUBTITLE button, if the appears, it means that there is no subtitle file or the selected subtitle file is not supported.

  • Page 27: Volume Adjustment

    Playing Back Media Files Pause Pause the ongoing playback Pause Press button. Resume Press button to continue playing the file. Volume Adjustment Increase or decrease the volume output level. Volume up Press VOL+ button. Volume down Press VOL- button. Play the Previous/ Next Play the previous title / chapter or file.

  • Page 28: Slow Motion

    Playing Back Media Files Slow Motion Plays a file at a slower speed (the speed is adjustable). Slow motion Press SLOW button to adjust speed. Resume Press button to restore normal speed. : Adjust speed in sequence: [1/2X 1/4X 1/8X Normal].
  • Page 29 Playing Back Media Files Repeat from A to B Repeats a selected segment. Starting Point While playing to the desired start point, press A-B button. Ending Point While playing to the desired end point, press A-B button. It will start the repeated playback immediately. Normal Play Press A-B button again to cancel this repeat operation.

  • Page 30: Setup Menu

    Setup Menu Setup Menu Press SETUP to display the Setup Menu. See the following to set up the functions: Operation of SETUP MENU Press to select the sub-menu. Press to enter the sub-menu. Select EXIT SETUP and press exit. You can also press SETUP to exit directly. Operation of the Sub-menu Press to select the function.

  • Page 31: Audio Setup

    Setup Menu the appendix for the country list (page 34). (*only active if OSD LANGUAGE is set to English) ANGLE MARK When playing a multi angle DVD movie, a mark will be displayed on screen. ON: The angle mark will be displayed on the screen for 3 seconds. OFF: The angle mark will not be displayed on the screen.

  • Page 32: Video Setup

    Setup Menu This function only works if you have selected “SPDIF/PCM”. LPCM stands for Linear Pulse Code Modulation, which is a common method for encoding audio signal in CD and DVD. Higher sampling rate means audio output with more detail to meet Hi-end audiophile equipment requirements.

  • Page 33: Preferences Setup

    Setup Menu OUTPUT options disabled, and the DVD/JPEG ZOOM function will also be disabled at this mode. 1080I : When connecting to a TV supports high definition video input, enabling this option will output in 16:9 up-scaling component video format for High Definition displays.

  • Page 34: Appendix

    Appendix Appendix Specifications STORAGE USB devices USB Flash drive / USB external HDD Minimum 512MB or larger (USB card readers are not supported) File System FAT32 or NTFS Minimum Allocation Unit Size 4096 bytes INTERFACE USB 2.0 type A Connector x 1 AUDIO/VIDEO INTERFACE HDMI HDMI connector x 1...

  • Page 35: Troubleshooting

    Appendix Troubleshooting Problem Possible Cause Solution TV screen does not ◎Video setting is not correct. ◎Press the TV SYS button to switch display normally output TV system (See page 29 for more detail). No power ◎The power plug is not properly ◎Check the power connection and (All LEDs are off) connected.
  • Page 36 Appendix Problem Possible Cause Solution more detail). ◎This movie comes with only one ◎Check the contents. Can’t change audio or subtitle language of a language. movie ◎Audio cable is not connected. ◎Check audio connection. No audio output ◎Volume is too low. ◎Increase volume.
  • Page 37 Appendix Problem Possible Cause Solution ◎Convert the text subtitle file to image subtitle file. The audio or subtitle ◎This movie doesn’t come with the ◎Press AUDIO or SUBTITLE to is not the language selected language. select another language. you have selected Can’t fast forward, ◎Some movie files prohibit these rewind, slow motion,...

  • Page 38: Fonts Support Country List

    Appendix Fonts support country list *This list is for reference only. The actual support may be subject to change without prior notice. List of Latin 1 fonts (Western Europe) Albanian, Danish, Dutch, English, Faroese, Finnish, French, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish, Swedish and Welsh.

  • Page 39: Copyright

    Appendix Copyright Microsoft and Windows are registered trademarks of Microsoft Corporation. All other products are trademarks or registered trademarks of their respective owners and are hereby recognized as such.
  • Page 40 7451350-50...
