Item No: TAR0004
Ver 2013.1
Instruction Manual & Parts Catalogue
This radio control model is not a toy. Before using, please ensure you fully read and understand this manual.
The contents and specifications are subject to change without prior notice due to improvements and design changes.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X5 1:5 Brushless Buggy and is the answer not in the manual?

Questions and answers

Summary of Contents for Tamco X5 1:5 Brushless Buggy

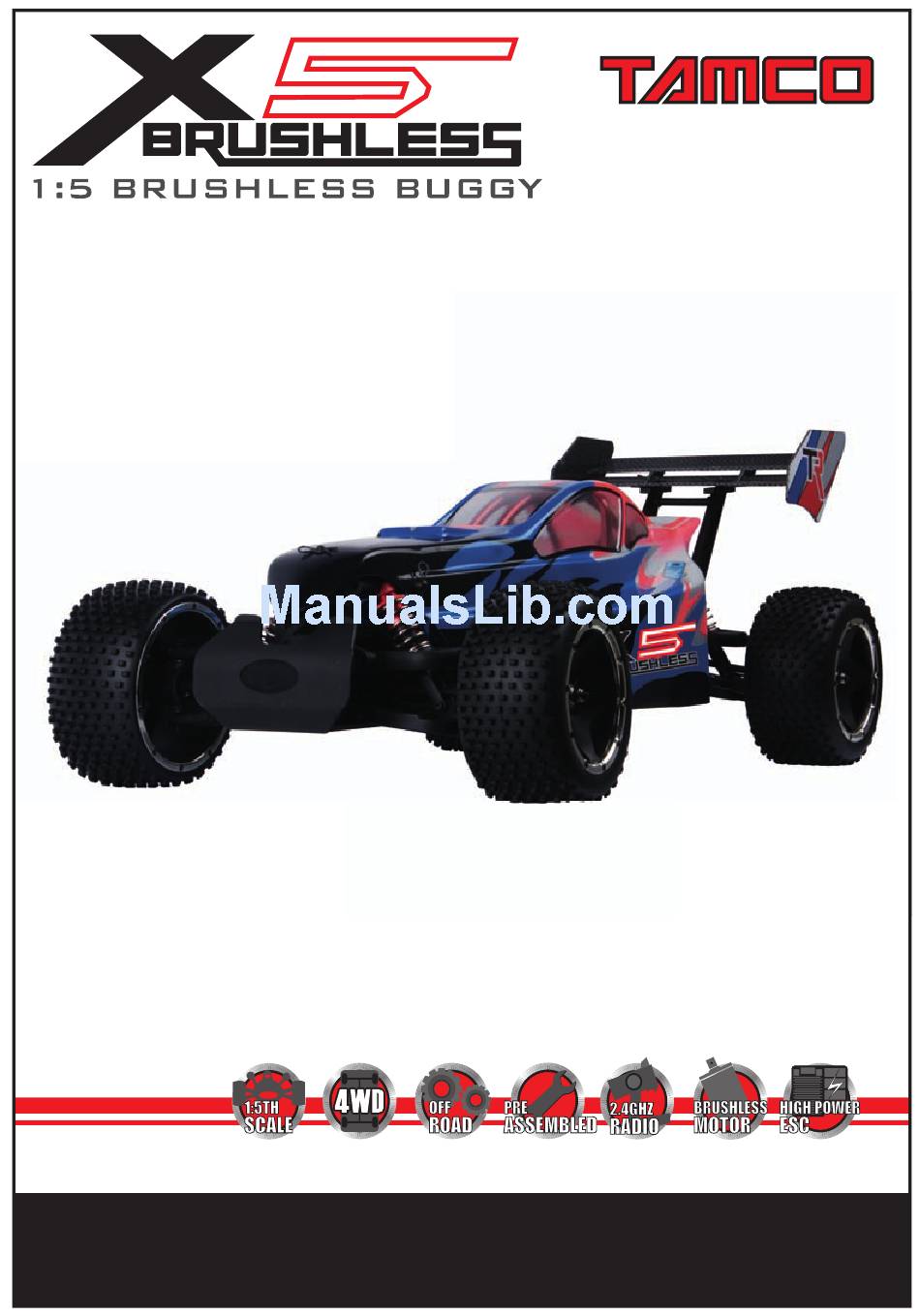

  • Page 1 Item No: TAR0004 Ver 2013.1 Instruction Manual & Parts Catalogue This radio control model is not a toy. Before using, please ensure you fully read and understand this manual. The contents and specifications are subject to change without prior notice due to improvements and design changes.
  • Page 2: Safety Precautions

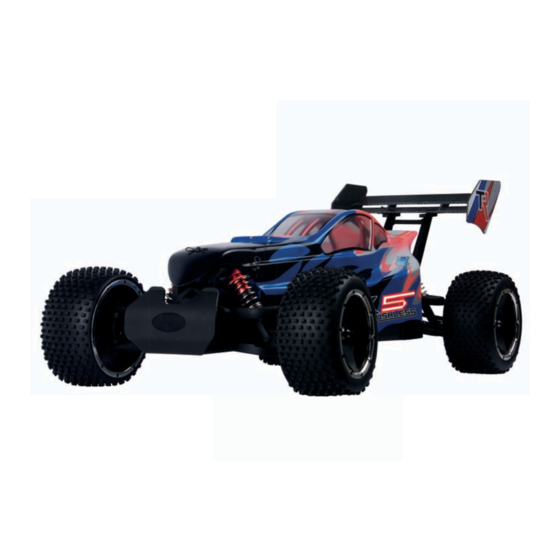

    Introduction Thank you for purchasing this TAMCO X5 1:5 Brushless Buggy. This high performance radio control model car is not a toy and should be used by someone with previous radio control experience. The X5 is equipped with the latest 2.4ghz radio equipment and a high power brushless motor along with a matched Electronic Speed Controller.
  • Page 3: Binding Process

    TAGT2 Transmitter Features & Functions 1 - Transmitter Antenna 2 - Steering Wheel 3 - Throttle/Brake Control 4 - Steering Reverse Switch 5 - Power LED 6 - Steering Trim 7 - Power Switch 8 - Throttle Reverse 9 - Power Check LED 10 - Bind Button 11 - D/R Trim 12 - Throttle Trim...
  • Page 4 NOTE: Although the TAMCO X5 is supplied fully assembled, we recomend you take some time to check that all the nuts and bolts are fully tightened before use. Please also ensure that all electrical connections are correct and well connected. These checks should become...
  • Page 5: Speed Controller

    Speed Controller The TAMCO X5 uses a high power brushless system which can be dangerous so we strongly advise you read and understand all the notes and instructions related to this system. Speed Controller Features Compatible with sensorless brushless motors and most sensored brushless motors.
  • Page 6 Throttle Range Setting & Calibration The ESC Unit in your X5 has been calibrated ready for use. If you decide to remove or replace the unit or a new transmitter, or change the settings of neutral position of the throttle stick, ATV or EPA parameters, etc.you will need to calibrate the ESC unit to fit the throttle range otherwise the ESC cannot work properly.
  • Page 7: Setup Troubleshooting

    Set Up Trouble Shooting Trouble Possible Reason Solution After power on, motor doesn’t connections between Check the power connections work, and the cooling fan doesn’t battery pack and ESC are not Replace the connectors work correct After power on, motor can’t work, Input voltage is abnormal, too Check the voltage of the battery pack but emits “beep-beep-, beep-beep-...
  • Page 8 Program The ESC Unit Note 5: In the program process, the motor will emit “Beep” tone at the same time when the LED is flashing. If the “N” is bigger than the number “5”, we use a long time flash and long “Beep---” tone to represent “5”, so it is easy to identify the items of the big number.
  • Page 9 Programmable Items List (The italics texts in the above form are the default settings) Programmable Value Programmable Items Basic Items Forward Only Forward/Reverse Forward and 1. Running Mode with Brake with Brake Reverse 2.Drag Brake Force 100% 3.Low Voltage 3.0V 3.2V 3.4V Non-Protection...
  • Page 10 Modes Running Mode: With “Forward Only with Brake” mode, the car can go forward and brake, but cannot go backward, this mode is suitable for competition; “Forward/Reverse with Brake” mode provides backward function, which is suitable for daily training. Note: “Forward/Reverse with Brake” mode uses “Double-click” method to make the car go backward. When you move the throttle stick from forward zone to backward zone for the first time (The 1st “click”), the ESC begins to brake the motor, the motor speeds down but it is still running, not completely stopped, so the backward action is NOT happened immediately.
  • Page 11: Replacement Parts

    Replacement Parts TAR013002S TAR102001 TAR102101 TAR102117 Racing Wheels x 2 Radio Tray Set Front Metal Top Plate Metal Cone Spacers TAR102118 TAR102119 TAR112001 TAR112002 Front Steering Hubs Rear Hub Set Plastic Top Arm Spacers Output Cup O Rings TAR112004 TAR112009 TAR112006 TAR112007 Upper Suspension Arms...
  • Page 12 Replacement Parts TAR112118 TAR112119 TAR112120 TAR112121 Rear Axle Set Front CV Drive Shafts Servo Saver Metal Post Set Servo Saver Spring Set TAR112132 TAR112133 TAR112123 TAR112124 Servo link Rod Set Servo Saver Rod Set Steering Turnbuckles Rear Top Shaft TAR112137 TAR112138 TAR112139 TAR112140...
  • Page 13 Replacement Parts TAR136011 TAR136008 TAR136009 TAR136010 Rear Top Brace Gear Mount & Axle Set Dogbone Set Motor Mount Bracket Set TAR136014 TAR136015 TAR136012 TAR136013 Receiver & Battery Tray Heat Sink & Cooling Fan Centre Top Brace Gear Cover Set TAR136016 TAR136018 TAR136019 TAR136020...
  • Page 14 Replacement Parts TAR181001 TAR181002 TAR182001 TAR181003 8mm E Clips 8x22x7 Bearing 10x22x6 Bearing 10x26x8 Bearing TAR183001 TAR183002 TAR183004 TAR183003 M4x12 Flat Head Hex Screw M4x38 Flat Head Hex Screw M4x60 Flat Head Hex Screw M4x12 Hex Screw TAR183005 TAR183007 TAR183008 TAR183006 M5x25 Flat Head Hex Screw M4x44 Flat Head ST Hex Screw...
  • Page 15 Replacement Parts TAR187000 TAR511190 TAR186001 TAR186002 4x10x1mm Shim Set M6 Wheel Nut Large Body Pins 6x12x1mm Shim Set TAR581001 TAR581003 TAR511602 TAR582001 3mm E Clips 5mm E Clips 5000mAh LiPo Battery Pack 10x19x5 Bearing TAR582008 TAR583014 TAR583023 TAR583015 8x16x5 Bearing M3x22 M4x10 Button Head Cross Screw...
