READ BEFORE USE!
WARNING
-
USE PROPANE GAS ONLY!
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
vicinity of this or any other appliance.
- Installation and service must be performed
by a qualified installer, service agency or gas
supplier.
WARNING
If the firebowl is stored indoors, detach and
leave Propane Gas cylinder outdoors.
WARNING
This firebowl must be attended at all times!
OWNER'S MANUAL
Factory No.: HYFP30205-19
DANGER
WARNING
For Outdoor Use Only!
Use Propane Gas Only !
Propane cylinders sold separately
Improper installation,
adjustment,alteration,service or maintenance can
cause injury or property damage. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this
equipment. If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of
life.
Turn off gas supply when the firebowl is not in use.
Battery may contain mercury. Do not deposit in fire
or put in trash. Recycle manage as hazardous waste.
WHAT TO DO IF YOU SMELL GAS:
• "Do not try to light any appliance."
• "Do not touch any electrical switch; do not use any
phone in your building."
• "Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions."
• "If you cannot reach your gas supplier, call the fire
department."
1
Style No.: 65209
WARNING
WARNING
WARNING
WARNING
Advertisement
Table of Contents
Related Manuals for Garden Oasis HYFP30205-19
Summary of Contents for Garden Oasis HYFP30205-19

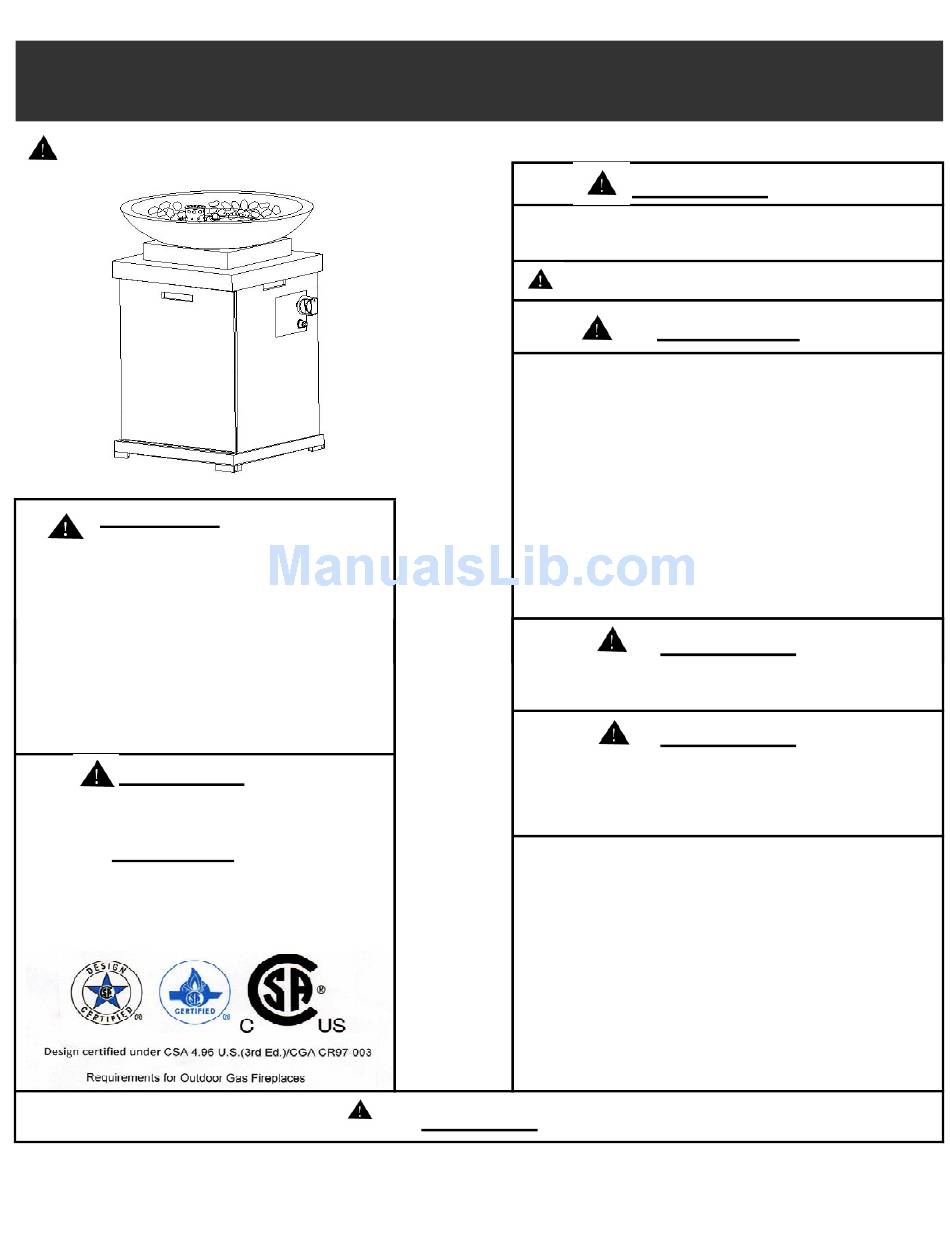

- Page 1 OWNER'S MANUAL Factory No.: HYFP30205-19 Style No.: 65209 READ BEFORE USE! WARNING For Outdoor Use Only! Use Propane Gas Only ! Propane cylinders sold separately WARNING Improper installation, adjustment,alteration,service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
- Page 2 Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. WARNING *Do not use this firebowl for cooking. *Remove the PVC Cover from the firebowl before opening the appliance.
- Page 3 ###################### ########################################################################################### Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. • Young children should be carefully supervised when they are in the area of the appliance. •...
- Page 4 * Do not light or use gas unit if lava rocks are wet. Ensure lava rocks are completely dry before igniting as intense heat could cause the rock to crack. * Lava Rocks could hit somebody's face or eyes during initial start of this unit , so please keep away from the firebowl for the first 20 minutes after it has been ignited.
-
Page 5: Specification
ITEM SPECIFICATION ITEM SPECIFICATION Body M5*120cross recessed round head Door screws Burner M6 Nuts Fire Bowl M6X15 screws Heat Insulation Board M4X10screws Ignition Pin M4 nuts Thermocouple Gas Valve M8*30 Wing screw Control Knob Pulse Ignition Regulator Feet Guard Grounding Wire ASSEMBLY INSTRUCTIONS * Please keep these owner's manual for future reference. - Page 6 STEP 1. STEP 2. Open the carton and turn it upside down, Turn the firebowl heads up on a flat make sure the 4 pieces of the carton being ground. open up as below Figure STEP 1. Cut off the binding tape on the Lift off the carton carefully and be wary polyfoam and remove all the polyfoam of the accessories inside falling away.
- Page 7 (III) Put the gas tank in the metal stand. Make sure the gas tank sits on the metal stand completely. Turn the wing screw on the outer part of metal stand clockwise to secure the gas tank tightly. Figure VI. connecting and operating conditions.
- Page 8 The burner of the firebowl must be covered by lava rocks completely. Otherwise the flame may be extinguished occasionally. See the Figure CORRECT and INCORRECT for reference. CORRECT INCORRECT Perform leak test in a well ventilated area outside and where no source of spark can occur. Remove battery from igniter.
-
Page 9: Routine Care
Observe flame height when lit: Flame should possibly be a yellow/blue color between 2 to 10 inches high. TO EXTINGUISH ※ Push the Control Knob and turn clockwise to the "OFF" position. ※ Turn the cylinder valve on the gas tank clockwise to close the gas supply if not for use in a long time.(See below figure) O FF O FF I G N I TER - PU SH...
