Northern Amp Arc 7000 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.
Welder/Generator
Description

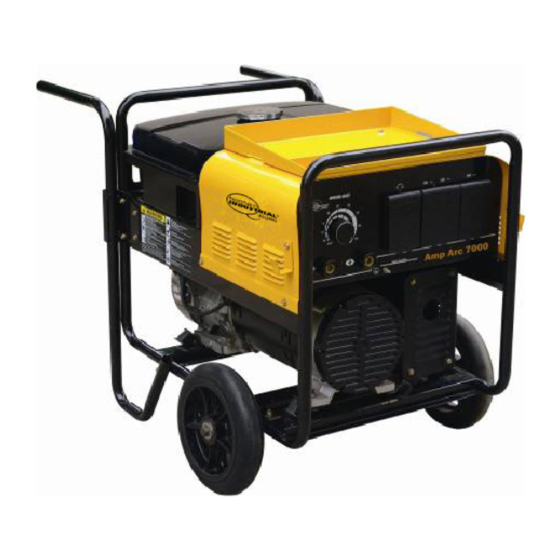

The AMP Arc 7000 is a
welder/generator that features 6000
watts of continuous auxilliary power
while not welding and 6600 watts of
peak power. It also provides 60 - 185
amps DC weld power for stick
welding. Use electrodes up to 5/32"
for a single pass weld capacity of
3/8". Weld steel, stainless steel, cast
iron and hard surfacing. The
auxilliary power connections include
a 120V duplex receptacle and a
240V twistlock receptacle. This unit
is complete with weld cables, wheel kit and a top tray.
Specifications and Dimension
spec
Frequency（Hz）
Voltage （V）
Generator
Rated current （A）
spec
Max power （KW）
AC
Rated power （KW）
phase
Power factor COSφ
A A m m p p A A r r c c 7 7 0 0 0 0 0 0
Model
60
240/120
25/40
6.6
6
Single phase
1.0
1
Amp Arc 7000
