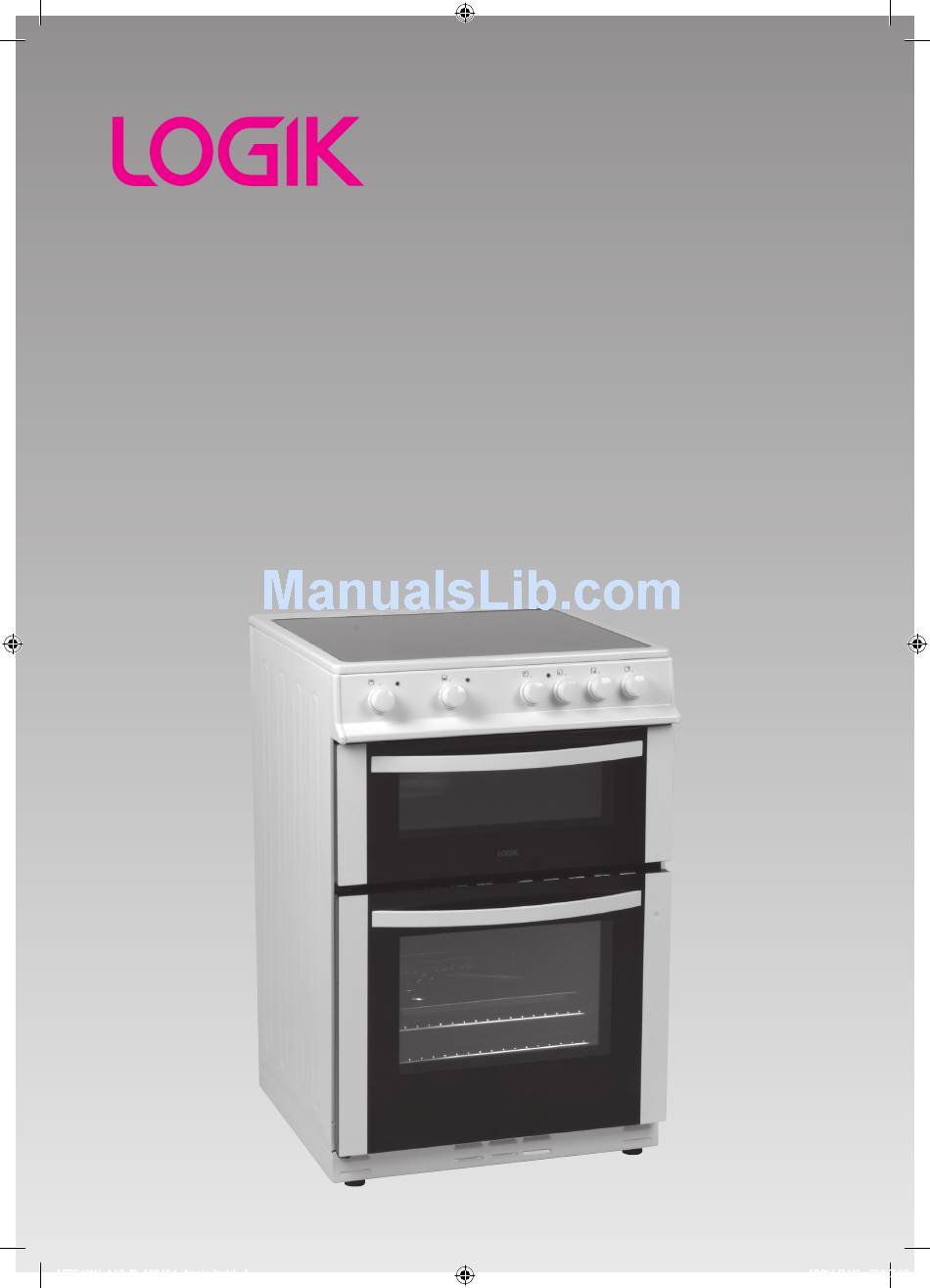

- Page 1 Free-Standing Twin Cavity Electric Cooker Instruction / Installation Manual LFTC60W12 / LFTC60A12 LFTC60W_A12_IB_120604_Annie.indd 1 12年6月4日 下午7:09...
- Page 2 LFTC60W_A12_IB_120604_Annie.indd 2 12年6月4日 下午7:09...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Front View ...................................5 Top View ..................................5 Control Panel ................................6 Before Using Your Cooker ......................6 First Time Use of the Hob ......................6 Choosing the Right Cookware ..................... 6 Using Your Hob ..........................7 First Time Use of the Oven ...................... -
Page 4: Unpacking
Thank you for purchasing your new Logik Free Standing Twin Cavity Electric Cooker. You must read this manual in order to fully understand how to operate it correctly. This cooker must be installed by a competent engineer. Please allow the installer to view the installation section of this manual. -
Page 5: Product Overview
Product Overview Front View Top Oven Door Handle Control Panel Oven Shelf Grill Pan Main Oven Door Top Oven Door Adjustable Feet Top View Large Ceramic Heater 1700W Hot Hob Warming Light Small Ceramic Heater 1200W * All images are for indication only; please refer to your individual unit for actual item. LFTC60W_A12_IB_120604_Annie.indd 5 12年6月4日... -
Page 6: Control Panel
Control Panel Grill Control Grill Indicator Lamp Oven Control Oven Indicator Lamp Ceramic Heater Controls Hob Indicator Lamp Before Using Your Cooker Before using your new cooker, please: • Make sure all the controls are turned off. • Read this Instruction/Installation Manual, taking special note of the 'Safety Warnings' section. • Turn the mains power on. -
Page 7: Using Your Hob
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. • The heated areas will be seen to switch on and off even when higher heat settings are used. -
Page 8: First Time Use Of The Oven
First Time Use of the Oven Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 9: Using The Oven Control
Using the Oven Control Function Description Defrost Function Defrost function can be started by placing the frozen food into your oven and turning the oven control to the defrost sign or below. This function does not cook the food only the fan operates, and this helps to defrost the food in a very short time. -
Page 10: Using The Grill
Using the Grill Heat the grill on maximum for 15 ~ 20 minutes. There may be a little smoke and odour upon initial start up (for about 10 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory. -
Page 11: General Advice
General Advice Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket. • Allow the cooker to completely cool down before cleaning and disconnect the appliance from the electrical supply. -
Page 12: Cleaning The Oven Door Glass
Cleaning the Cooker Door Glass Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they may scratch the surface, which could result in the glass shattering. Take care when handling parts with glass, knocks, and chips; heavy handling and dropping could cause the glass to shatter. -
Page 13: Replacing The Oven Lamp
Lift the door slightly. The notch on the bottom of the hinge will disengage. Now pull the door forwards off the appliance, releasing both hinge sections from the slots. To replace the door, repeat the above steps in reverse order. Replacing the Oven Lamp Ensure that the cooker is switched off before replacing the lamp to avoid the possibility of an electric shock. -
Page 14: Hints And Tips
Hints and Tips Problem Possible Causes What To Do The cooker cannot be No power. Make sure the cooker is connected turned on. to the mains socket and the socket is switched on. Check whether there is a power outage in your home or area. -
Page 15: Specifications
Specifications Model LFTC60W12 / LFTC60S12 600(W) x 600(D) HOB [640(D) MAX] x 900(H) mm Overall Dimension (WxDxH) (Not including Controls or Handles) Main oven usable volume: 56 litres Usable Volume Top cavity usable volume: 36 litres Oven Lamp 25 W Thermostat 50 - 265°C... -
Page 16: Installation
Installation • The cooker must be installed by a competent person, if in doubt consult a qualified technician, and in compliance with local electrical, safety and building regulation standards. • If the cooker is installed adjacent to furniture which is higher than the hob, a gap of at least 100 mm must be left between the side of the cooker and the furniture unless non-combustible materials (e.g., ceramic tiles, metal splashback, etc.) are used which then allows this distance to be reduced to 20 mm. -
Page 17: Adjusting The Feet
Adjusting the Feet Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface. The cooker stands on 4 levelling legs. As the levelling legs are adjusted at lower position, it is required to control whether the product is levelled before operating it. -
Page 18: Electrical Connection
Electrical Connection Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after you complete the connection at the junction box. -
Page 19: Safety Warnings
Safety Warnings Installation • For disconnection from the mains supply you must have a switch with a contact separation of at least • This appliance must be earthed. 3.0 mm in all poles and rated 32 Amp that provides full disconnection, this must be incorporated in • It is recommended that this appliance is installed the fixed wiring in accordance with the local wiring by a qualified electrical engineer. - Page 20 • Before starting to use your appliance, keep • Do not rest any items on or stand on the open curtains, tulle, paper or flammable materials away door. from your appliance. Do not keep combustible or • If the surface is cracked, switch off the appliance to flammable things in or on the appliance.
- Page 21 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Grill Pan Handle 37004739 Grill Rack 37006132 Grill Pan 20643831 Oven Shelf 37015286 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
- Page 22 LFTC60W_A12_IB_120604_Annie.indd 22 12年6月4日 下午7:10...
- Page 23 LFTC60W_A12_IB_120604_Annie.indd 23 12年6月4日 下午7:10...
- Page 24 LFTC60W_A12_IB_120604_Annie.indd 24 12年6月4日 下午7:10...
